4.5. Carrying out the measurement

Please mount the respective adapter (see chapter 4.3) before switching on the
device. Check the position of the adjustment sleeve (see chapter 4.4). It must be
snapped into place before each measurement and must not be twisted as far as it
goes.
Switch on the device by pressing the On button. An information screen with the serial
number appears for a brief moment. Then, the device changes to measurement
mode and you can begin the measurement.
Guide the device with the adapter
into the spindle shaft centred and
straight.
Actuate the tool clamping by initiating
the pull-in force.
The currently existing pull-in force is
shown as well as the maximum pull-in
force below it.
The device can be switched off by pressing the On button once again. The same
thing happens with the AUTO-OFF function if the device is not used for 2 minutes.
Heinrich-Röhm-Str. 50, 89567 Sontheim/Brenz., GERMANY, Tel. (49)7325/16-0
Operation

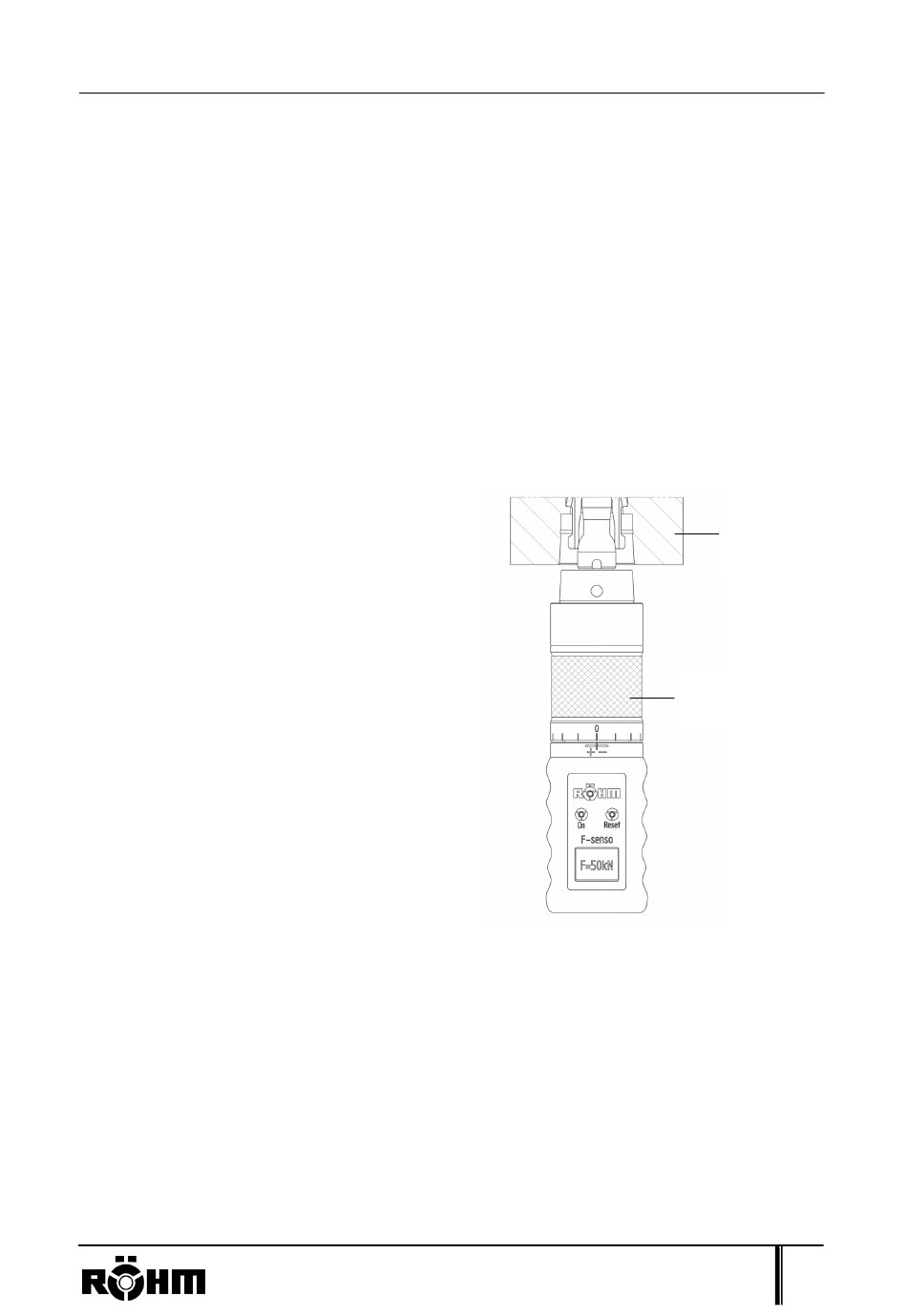

Spindle
