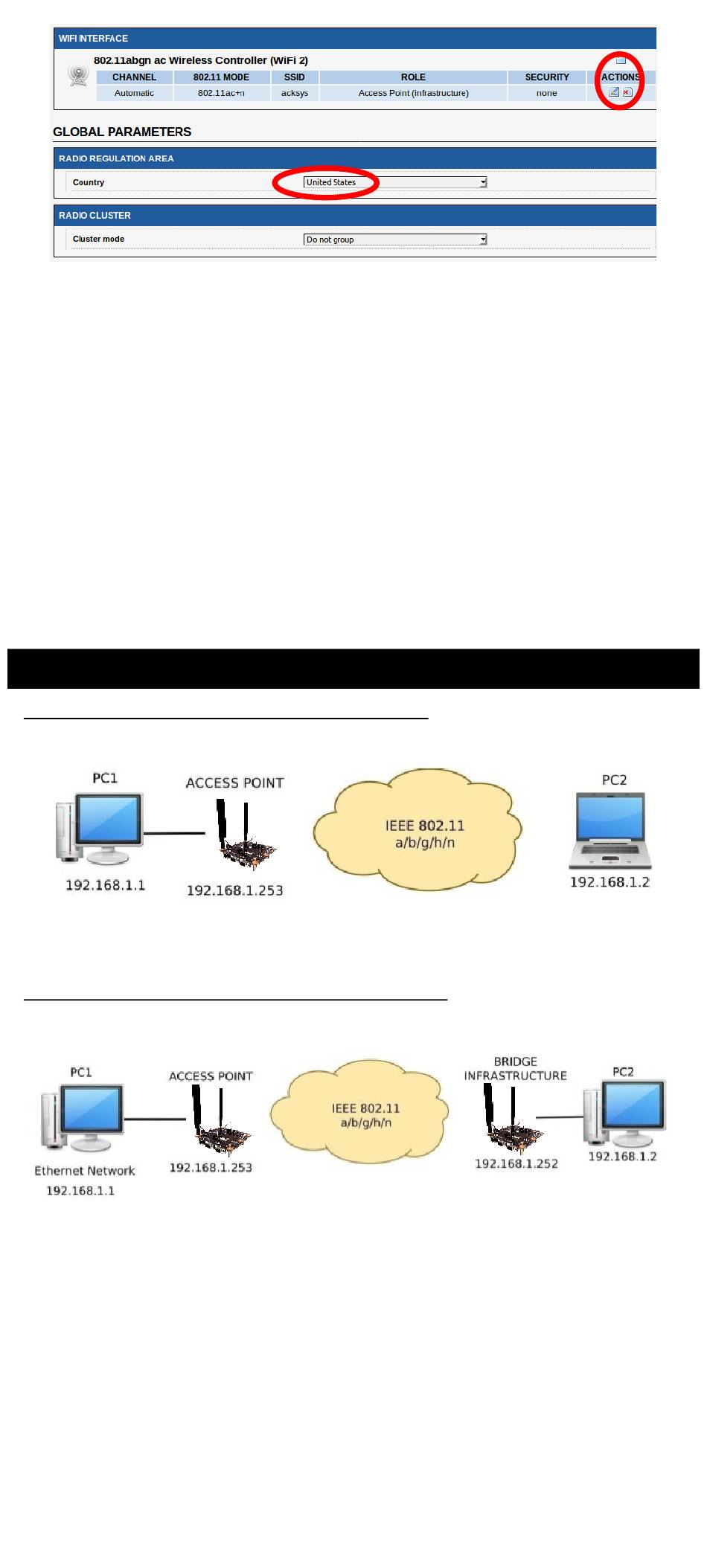

You can select radio interface to set up its Wi-Fi parameters (you can also
change IP configuration and services). Set the following essential
parameters:
Country: after applying this parameter, channel regulation rules are
o
enforced
The operating mode: Access point, client (bridge), mesh.
o
Wi-Fi parameters: 802.11 mode, radio channel (take care about local
o
legislation), SSID
Wi-Fi security parameters (WEP, WPA, WPA-PSK, WPA2, WPA2-
o
PSK, SSID broadcast or not)
You'll find a complete description of these modes in the reference manual for
the "EmbedAir" line of products.
Upon delivery, the default factory settings are:
Radio interface disabled, preset for access point mode,
o
SSID: "acksys" (broadcast)
o
No security (no WEP, no WPA, no WPA2, no MAC filter)
o
802.11n or ac mode, 5GHz band, auto-channel
o
QUICKLY EVALUATE AP & BRIDGE MODES
Quickly evaluate the ACKSYS device in AP role
You need a second computer (PC2) with a working Wireless connection.
Set up PC2 Wireless network interface according to the default parameters of
the ACKSYS AP device (802.11n, channel 6, SSID "acksys", no security).
Quickly evaluate the ACKSYS device in client role
Use two ACKSYS devices, and a second computer (PC2) with a wired LAN
connection.
Set up the IP addresses according to the picture above and set the device
connected to PC2 to Client (infrastructure) role.
Wait for the "State" LED to stop flashing (when it associates to the AP). From
each PC, start a command prompt and check the link with the ping command.
From PC1: type ping 192.168.1.2, verify the answer returned by PC2
« Answer from 192.168.1.2... »
From PC 2: type ping 192.168.1.1, verify the answer returned by PC1
« Answer from 192.168.1.1... »
-4-
