WLAN and DIAG2 LEDs are flashing in bridge mode
- This means that the bridge is out of range of the AP, or the wireless
parameters in the products don't match the parameters declared in the
Access Point (SSID, Security).
"ACKSYS NDM" doesn't find your device
- ACKSYS NDM only scans the local network. Devices located behind a
gateway are not seen.
- If you use a firewall on your P.C, verify it does not block UDP port 17784
and SNMP port (UDP port 161 by default).
How to restore factory settings
- If the built-in web-based interface is reachable, you can use your
browser to restore factory settings.
- Otherwise, press the reset button for at least 2 seconds while the unit is
powered on, using, for example, a paper clip.

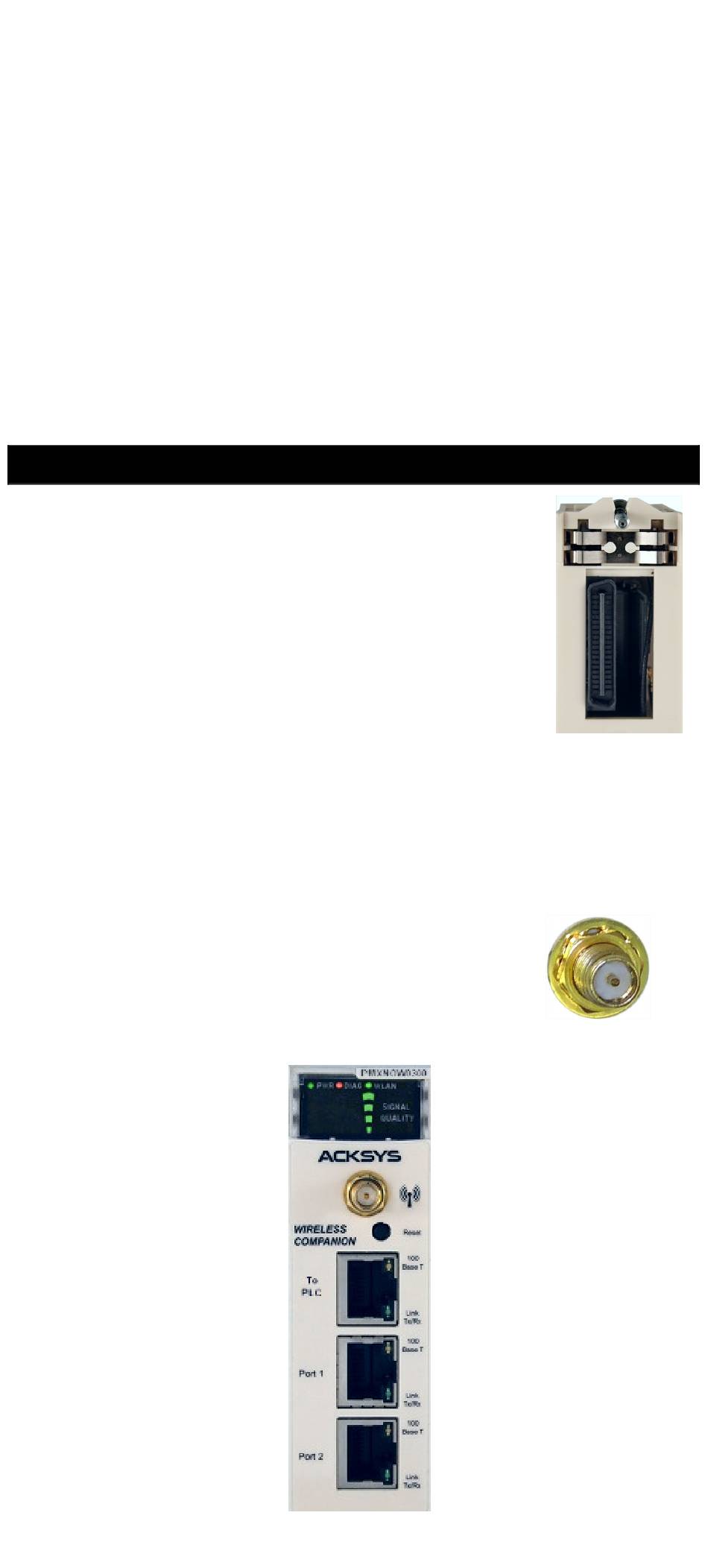

The device contains:
- One proprietary back panel connector
This connector provides power supply and
control signals, and is designed for Modicon
M340 / M580 platform. The product can not be
used in another context.
- Three RJ-45 connectors for Port 1, 2 and « To PLC ».
The two Ethernet ports are auto-sensing (10
Base-T or 100 Base-TX Half/Full Duplex) and
self-configuring to allow connection via either a
crossover or straight-through cable (MDI/MDIX
Auto)
- One antenna connector type RP-SMA male
This connector is used for Tx/Rx WLan activity,
and receives either the small 2dBi antenna
provided, or an optional remote antenna.
CONNECTORS
-5-
