Terminal Block
Light
Terminal Block
Double Pole
in Fan
Light
Double Pole
3 Amp
Switch
in Fan
Isolating Switch
3 Amp
Switch
Fuse
Isolating Switch
Fuse
L
L
L
L
Light
L1
N
Light
L1
N
Optional
Optional
N
N
EMRSRD100B
PCB Terminal
Double Pole
in Fan
3 Amp
PCB Terminal
Isolating Switch
Double Pole
Fuse
in Fan
3 Amp
Isolating Switch
L
L
Fuse
L
L
N
N
Light
N
N
E
SL
Light
Light Switch
E
SL
E
Light Switch
Con 2
E
Con 2
EMRSRD100T
www.codume.eu
Edingenstraat 18-20 rue d'Enghien – Brussel 1000 Bruxelles – Tel. : 02 / 511 20 10 – Fax : 02 / 511 23 59
EMRSRD100B/EMRSRD100T
Ventilateurs plafonniers industriels
2
4
6
8

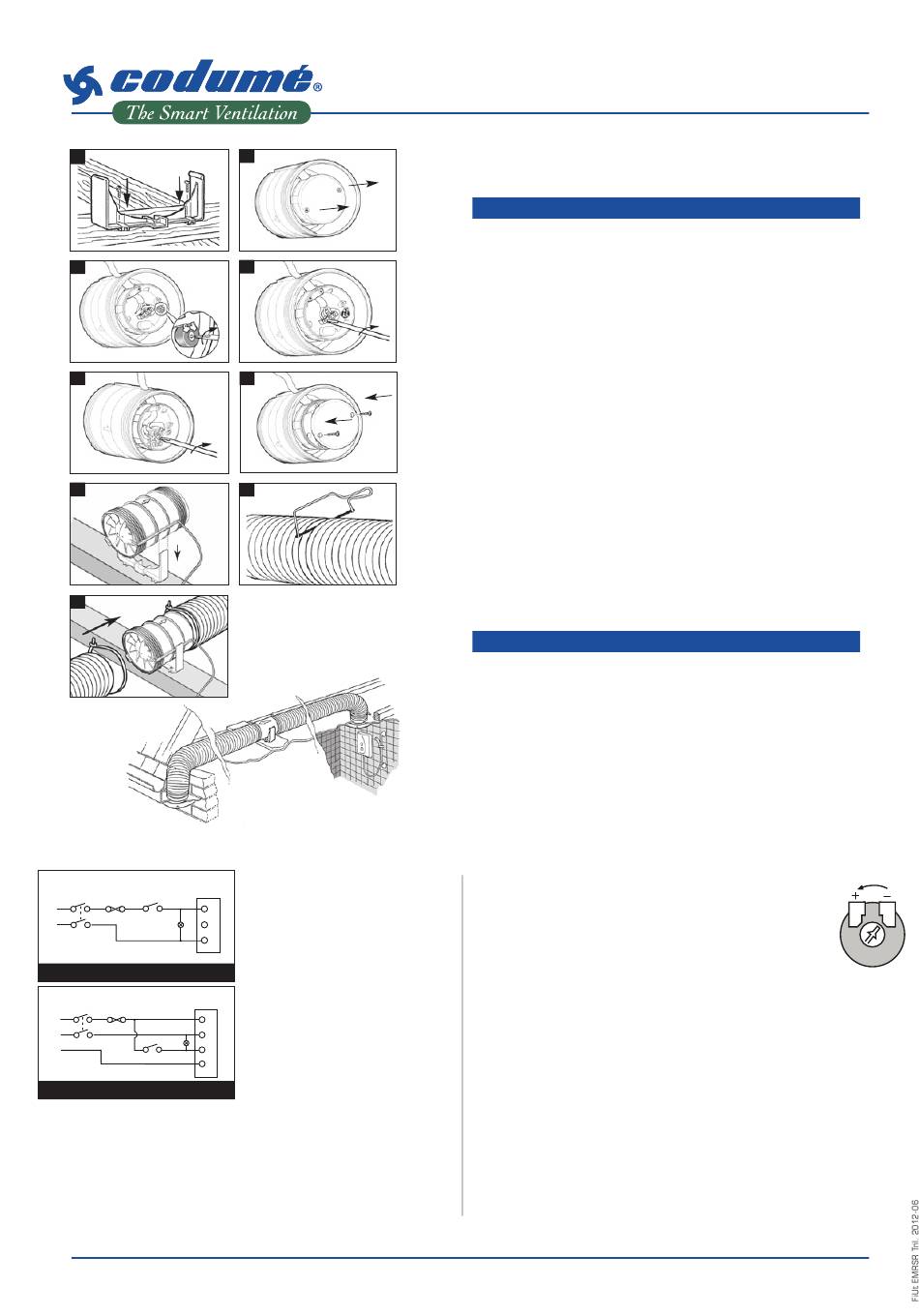

Wiring Diagrams
NB. All electrical products must be
wired and installed by a qualified
electrician in accordance with
local regulations which apply. The
fan must be connected to mains
power by using a fused double pole
isolating switch having a contact
separation of at least 3mm.
Fan Specification
220V-240V~50Hz.
Power Consumption:
EMRSRD100B 15W
EMRSRD100T 16W
Cable sizes:
Fixed flat wiring
2 core 1mm2 3 core 1/1.5mm2
IP24
installation instructions
WArning
•
The appliance is not intended for use by young children or
infirm persons unless they have been adequately supervised by
a responsible person to ensure that they can use the appliance
safety. Young children should be supervised to ensure that they
do not play with the appliance.
•
Isolate the fan from the mains supply before carrying out work
of any kind including altering the timer overrun.
•
The fan should not be sited where it would be subject to a direct
source of heat in excess of 40°C.
•
Once fitted into ceiling void or loft space do not cover fan with
any insulating materials.
•
Minimum void height when fitting into ceiling space is 200mm.
•
Observe appropriate safety precautions if working on steps or
ladders. Wear eye protection when breaking out wall materials
etc.
•
Precautions must be taken to avoid the back-flow of gases
into the room from the open flue of gas or other fuel-burning
appliances.
Bevestigingswijze
1
Secure the mounting foot supplied to a suitable roof beam or
similar.
2
Remove 2 screws from fan motor cover and remove from fan
body.
3
Insert cable through cable entry point on fan body and secure
with clamp. For model EMRSRD100T set the timer with a flat
blade screwdriver. The timer is adjustable between 2 and 30
minutes. It is factory set at midpoint. Note: Switch off the mains
electricity before adjusting controls.
4
For timer model EMRSRD100T, push wires into the terminal
block mounted on the PCB and connect as per the wiring
diagram.
5
For basic model EMRSRD100B, push wires into the terminal
block, connect as per the wiring diagram.
6
Re-assemble using 2 screws to fit PCB cover to fan body.
7
Clip the fan body into the mounting foot.
8
Cut the ducting half way along its length. (New installation)
9
Place flexible ducting over the spigot of both ends of the fan
body. Fit ducting to spigot using ties.
PVD N
Sous réserve de modification
Wijzigingen voorbehouden
