1.10 Using the PicoConnect

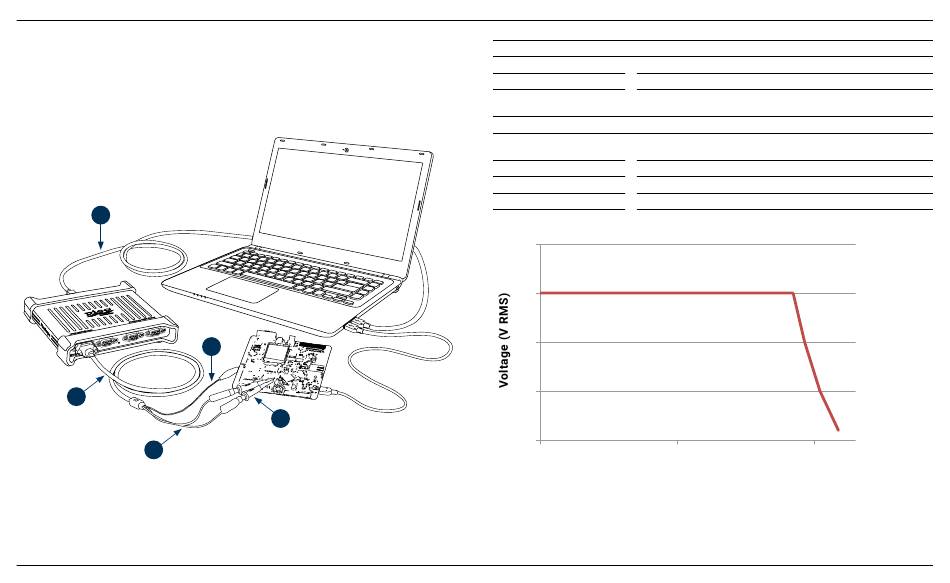

1.10.1 Installing your PicoConnect 441 probe
Follow these instructions to install and start using your differential probe.
1. Plug the D9(m) connector into an input channel of the PicoScope 4444 differential
oscilloscope.
2. Using the appropriate probe accessories, connect the input leads to the circuit under test.
e
d
b
a.
b.
c.
d.
e.
6
441 1:1 differential probe
®
c
a
TA327 and TA328 unshrouded 4 mm sprung hooks
Input leads of the PicoConnect 441 probe
Ground lead of the PicoConnect 441 probe
Output lead of the PicoConnect 441 probe
TA155 Pico blue USB cable
Copyright © 2017–2019 Pico Technology Ltd. All rights reserved.
1.10.2 PicoConnect 441 probe specifications
Input
Working voltage 50 V DC, 42.4 V peak AC
Overload voltage 100 V DC + peak AC
1 x red, 1 x black 4 mm plugs, unshrouded. Crocodile clip on
Connector
screen/ground.
Output
D9(m) with screw locks. Only for connection to PicoScope
Connector
4444 differential oscilloscope.
General
Bandwidth (–3 dB) 15 MHz
Overall length 1.2 m
1.10.3 Differential input voltage derating
35
30
25
20
15
100 k 1 M

Frequency (Hz)

Quick Start Guide
10 M
