PicoScope USB Oscilloscope
1.6
Installing your oscilloscope
1.
Go to www.picotech.com, click Downloads, select the PicoScope 4000 Series and the
PicoScope 4444 model, then select the latest PicoScope software. Download and run the
installer.
2.
In the PicoScope installer, select the language you wish to use.
3.
Follow the on-screen instructions to install the PicoScope software. Do not connect the
oscilloscope until the installation is complete.
4.

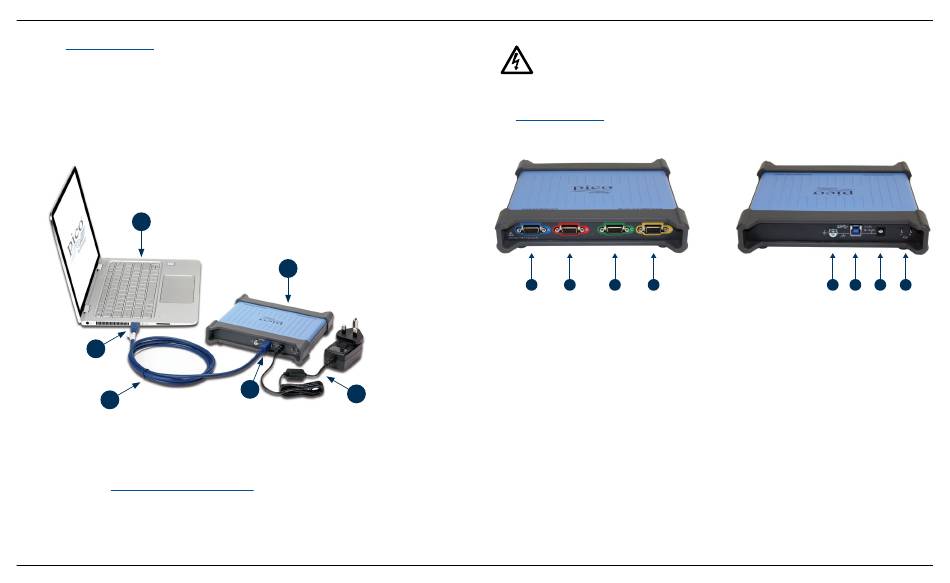

Connect the oscilloscope to the PC using the USB cable supplied, as shown in the
connection diagram below.
d
e
c
5.
Wait for Windows to install the oscilloscope. While doing so it will display a message or
icon in the taskbar telling you it has found the device.
6.
Run the software by clicking the new PicoScope 6 icon on your Windows desktop. For more
information on the software, please refer to the PicoScope 6 User's Guide, which you can
download from
www.picotech.com/downloads
software.
4
a.
PicoScope 4444 differential oscilloscope
b.
Oscilloscope USB port
c.
Pico USB cable
d.
PC
e.
PC USB port
f.
Power adaptor
a
b
f
or access from the Help menu within the
Copyright © 2017–2019 Pico Technology Ltd. All rights reserved.
1.7
Connecting accessories to the PicoScope 4444
WARNING
To prevent electric shock or damage to the unit, only connect Pico Technology D9-
type accessories directly to the oscilloscope. BNC-type accessories should only be
used in conjunction with the TA271 or TA299 D9(m)-BNC(f) adaptors. Use of any
alternative connectors is dangerous and will invalidate the warranty.
Visit
www.picotech.com
for more information about approved accessories and how to order
them.
1.7.1
Connector diagram
a
c
b
d
a.
Input channel A
b.
Input channel B
c.
Input channel C
d.
Input channel D
e.
Ground terminal
f.
USB 3.0 port
g.
DC power socket. For use with the AC adaptor supplied.
h.
Probe compensation pins
Quick Start Guide
e
g
f
h
DO282-3
