5.2.5 High-voltage cables with loose braided shielding

Note:
In the case of high-voltage cables with braided shielding, only the white Teflon hose
must be inserted into the gland. Tighten the union nut. The earth connection of braided
shielding must be connected to the power unit's external earthing point.
See also figure 8.
Gland
Union nut
Black hose
Braided shielding

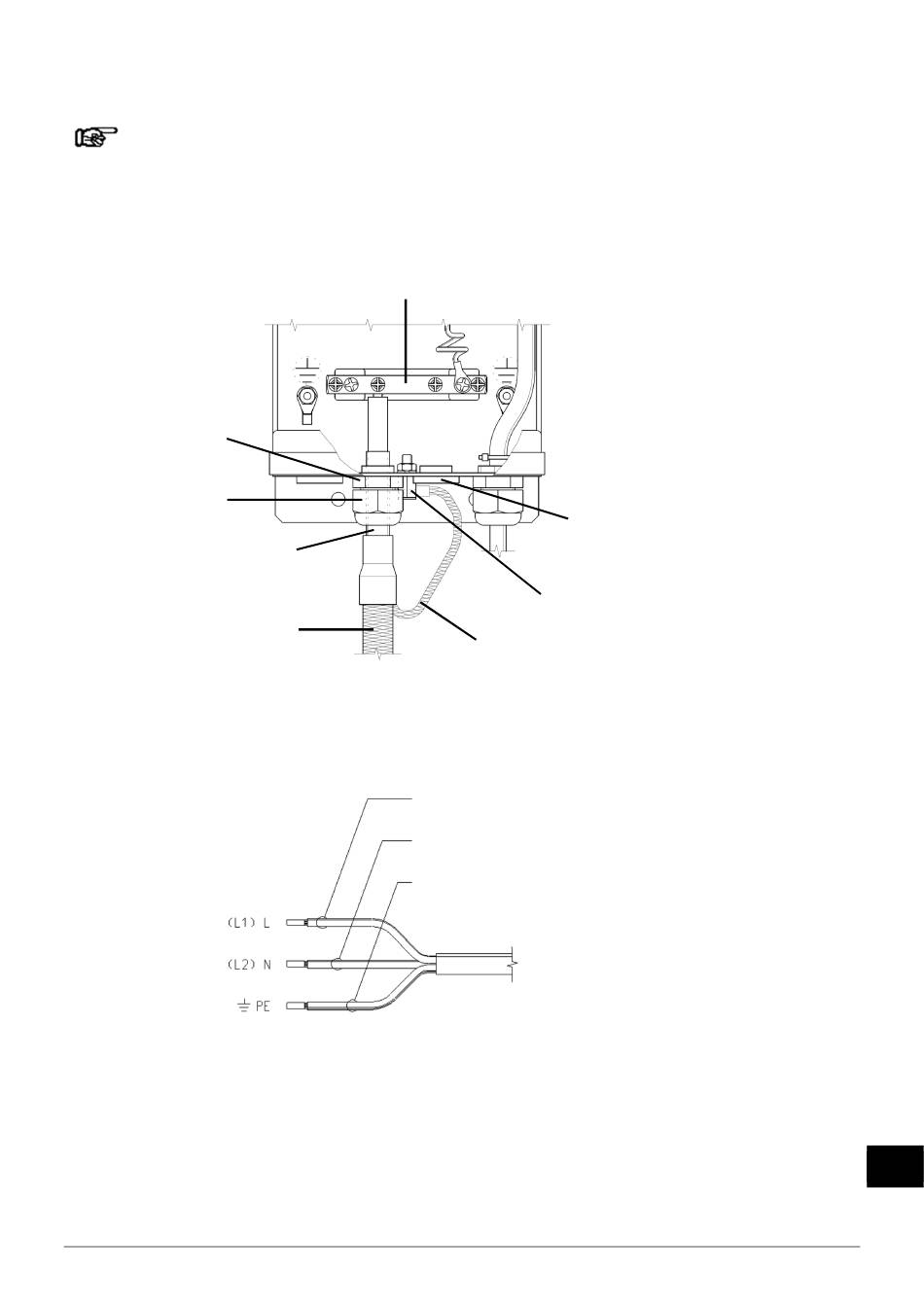

Figure 8: Finishing of loose braided shielding

5.3 Power unit mounting

Figure 9: power unit power cable
1 Lay the connection cable to the (mains) voltage connection.
2 Connect the connection cable or fit a plug.
A-Unit_UM_9752080510_NL_D_GB_F_V3_4
HV terminal block
Earth
Brown (Black 1)
Bleu (Black 2)
Green/Yellow
Seal for gland hole
Earthing point of power unit
connection
shielding
