yello/green
8 604 390 045
red
+12V
Out
1 2 V
IN
Universal
voltage supply cable
7 607 884 093
red
brown
orange
IN
IN
Kl.15 +12V
Control cable (Power
The control cable is the connected positive output
external components such as the power antenna,
(maximum load < 150 mA).
Important! Do not hook up the control cable to terminal 15
(switched to plus) or terminal 30 (continuous plus).
Relais
per. +12V
Continuous plus connection (terminal 30 battery
+ 12 volts)
Lay the positive wire (red/minimum 1.5 mm
section) to the battery (not directly along the wire
harnesses). Connect the fuse holder to protect the
positive wire and connect it to the positive terminal on
the battery.
Ground
Do not connect the ground wire (minimum 1.5 mm
cross section) to the negative terminal of the battery.
Lay the ground wire to a suitable ground (chassis screw,
chassis metal) and screw it down there.
Illumination connection
Illumination connection for vehicles with adjustable
instrument illumination (plus controlled).
+12V
Positive connection (switched via the ignition)
This connection should made to the ignition
only (terminal 15).

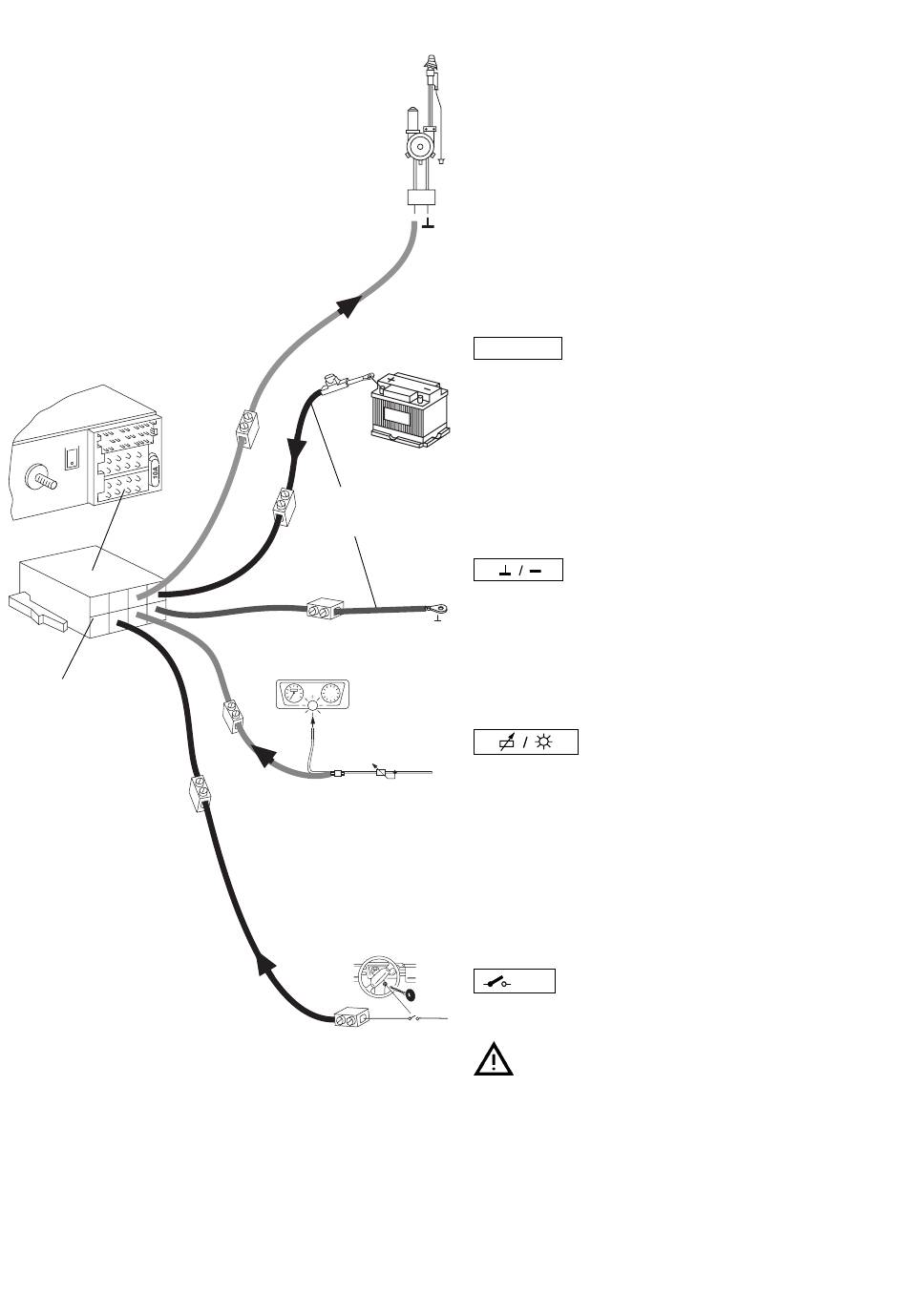

Fig. 2
- 6 -
Antenna +)
2 in the cross
8 622 401 885
for
2
in the
