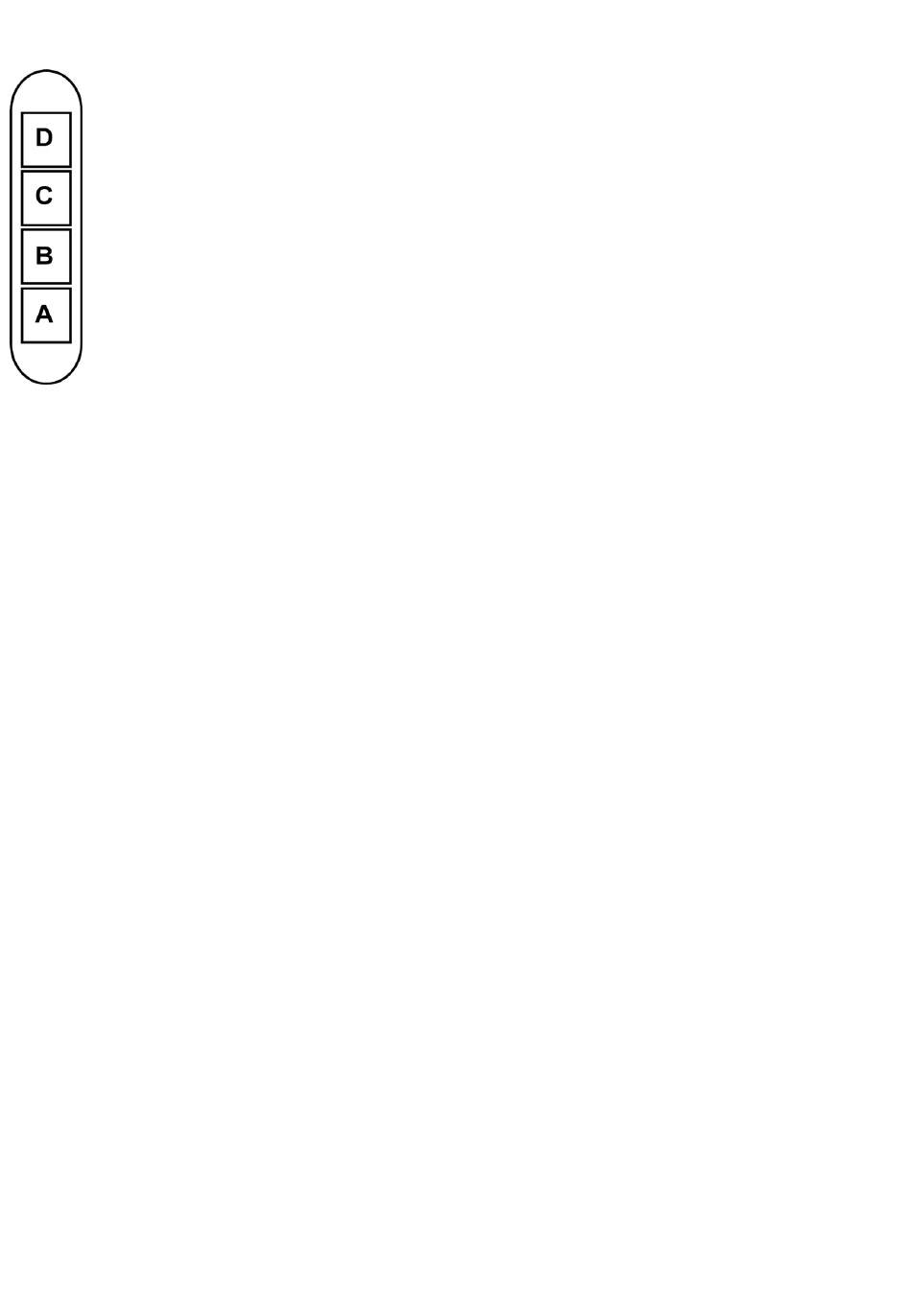

Model with 4 push-buttons control panel
A. on/off light switch
B. on/off aspiration switch and minimum power selection
B+C. medium power selection aspiration switch
B+D. maximum power selection aspiration switch
Maintenance
ATTENTION! Before performing any maintenance operation,
isolate the hood from the electrical supply by switching off at
the connector and removing the connector fuse.
Or if the appliance has been connected through a plug and
socket, then the plug must be removed from the socket.
Cleaning
The cooker hood should be cleaned regularly (at least with the
same frequency with which you carry out maintenance of the
fat filters) internally and externally. Clean using the cloth
dampened with neutral liquid detergent. Do not use abrasive
products. DO NOT USE ALCOHOL!
WARNING: Failure to carry out the basic cleaning
recommendations of the cooker hood and replacement of the
filters may cause fire risks.
Therefore, we recommend observing these instructions.
The manufacturer declines all responsibility for any damage to
the motor or any fire damage linked to inappropriate
maintenance or failure to observe the above safety
recommendations.
Panel
Fig. 6-17
Maintenance of the panel
Dismantling:
Extract with decision (LOWER SIDE) and rotate upwards.
Cleaning:
the panel should be cleaned with the same frequency as
the fat filters, using a cloth soaked in neutral liquid
detergents.
Avoid the use of products containing abrasives. DO NOT
USE ALCOHOL!
Montage:
Proceed in the reverse direction for dismantling.
Attention! Always check that the panel is fixed in its
place well.
Grease filter
Fig. 7-14
Traps cooking grease particles.
This must be cleaned at least once a month (or when the filter
saturation indication system - envisaged on the model in
possession - indicates this necessity), using non-aggressive
detergents, in a dishwasher, which must be set to a low
temperature and a short cycle (Tmax: 70°C).
When washed in a dishwasher, metal parts may discolour
slightly.
The filter must be dried in an oven for one hour at a max
temperature of 100°C; if the filter is still moist, repeat the
operation.
Replace the filter at least every 2 years.
To remove the grease filter, pull the spring release handle.
Charcoal filter (filter version only)
Fig. 13
It absorbs unpleasant odours caused by cooking.
The saturation of the charcoal filter occurs after more or less
prolonged use, depending on the type of cooking and the
regularity of cleaning of the grease filter.
In any case it is necessary to replace the cartridge at least
every four mounths.
The charcoal filter may NOT be washed or regenerated.
Circular carbon filter
Apply one on each side as cover to both the shield grids of the
motor impeller, then turn clockwise.
For the disassembly, turn counter-clockwise.
Replacing lamps
The hood is equipped with a lighting system based on LED
technology.
The LEDs guarantee an optimum lighting, a duration up to 10
times as long as the traditional lamps and allow to save 90%
electrical energy.
For replacement, contact the technical service.
