Functions and features
• Monitoring of the message quality
• Display of critical states by "traffic light" LEDs
• Cable lengths of up to 200 m are possible without additional repeater
when the tuner is installed at the point furthest away from the AS-i
power supply
• Current rating AS-i distribution socket max. 1 A

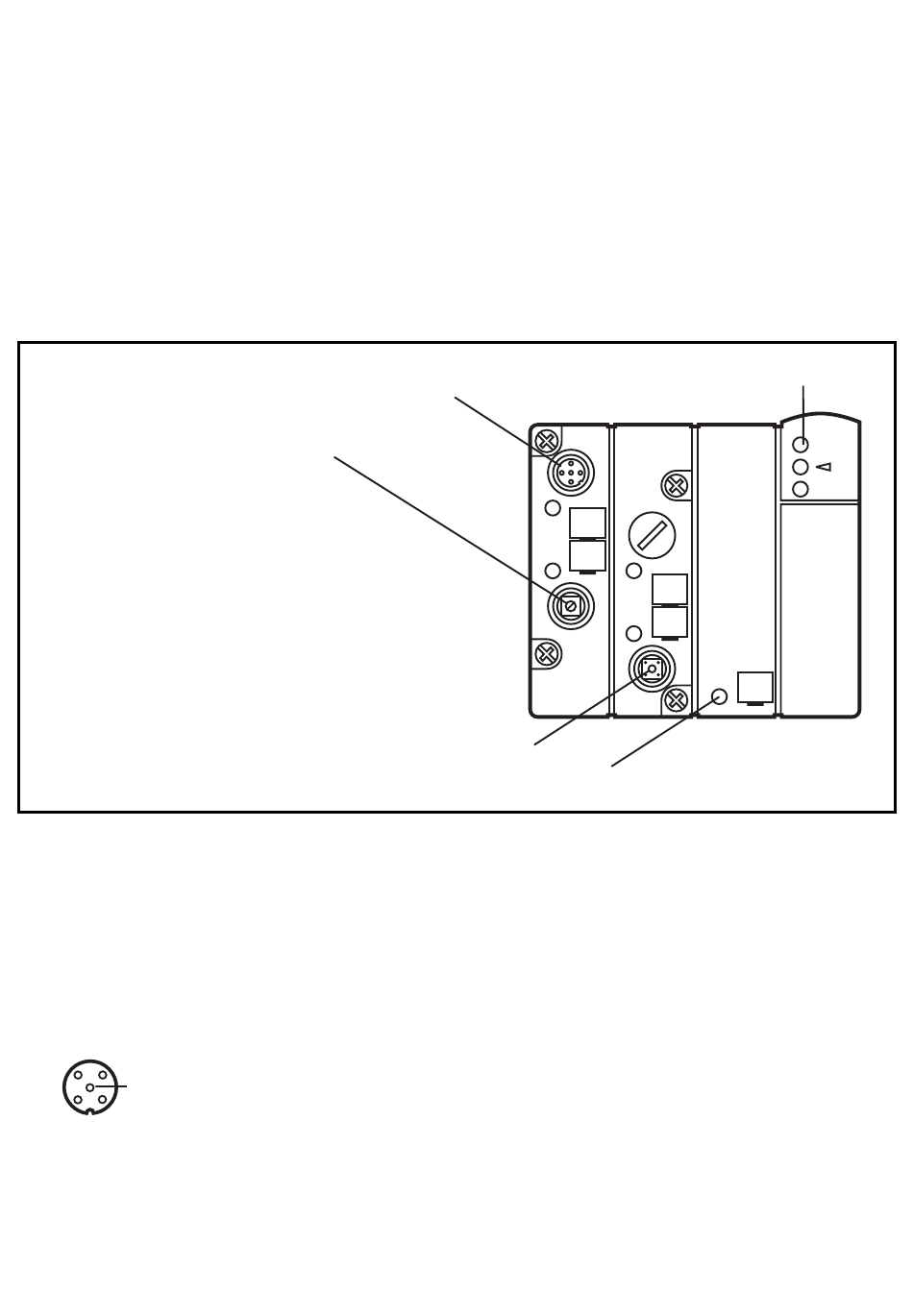

Operating and display elements
Mode selector
Position
0: Off
1: Passive bus termination*
2: Tuning
3: Run
all other positions have
no function
* corresponds to AC1147
Installation
Mount the module on a wired module lower part of the AS-i network,
tightening torque 0.8 Nm
Electrical connection
3
AS-i -
4
5
1
2
AS-i +
Technical data
You can download the data sheet from the internet if required
(www.ifm.com).
4
AS-i distribution socket M12
Wiring
1: AS-i +
tune button
3: AS-i -
traffic light LEDs
AS-i power LED
