Chappee INITIA+ COMPACT 2.25 HTE Notice D'emploi Et D'installation page 33

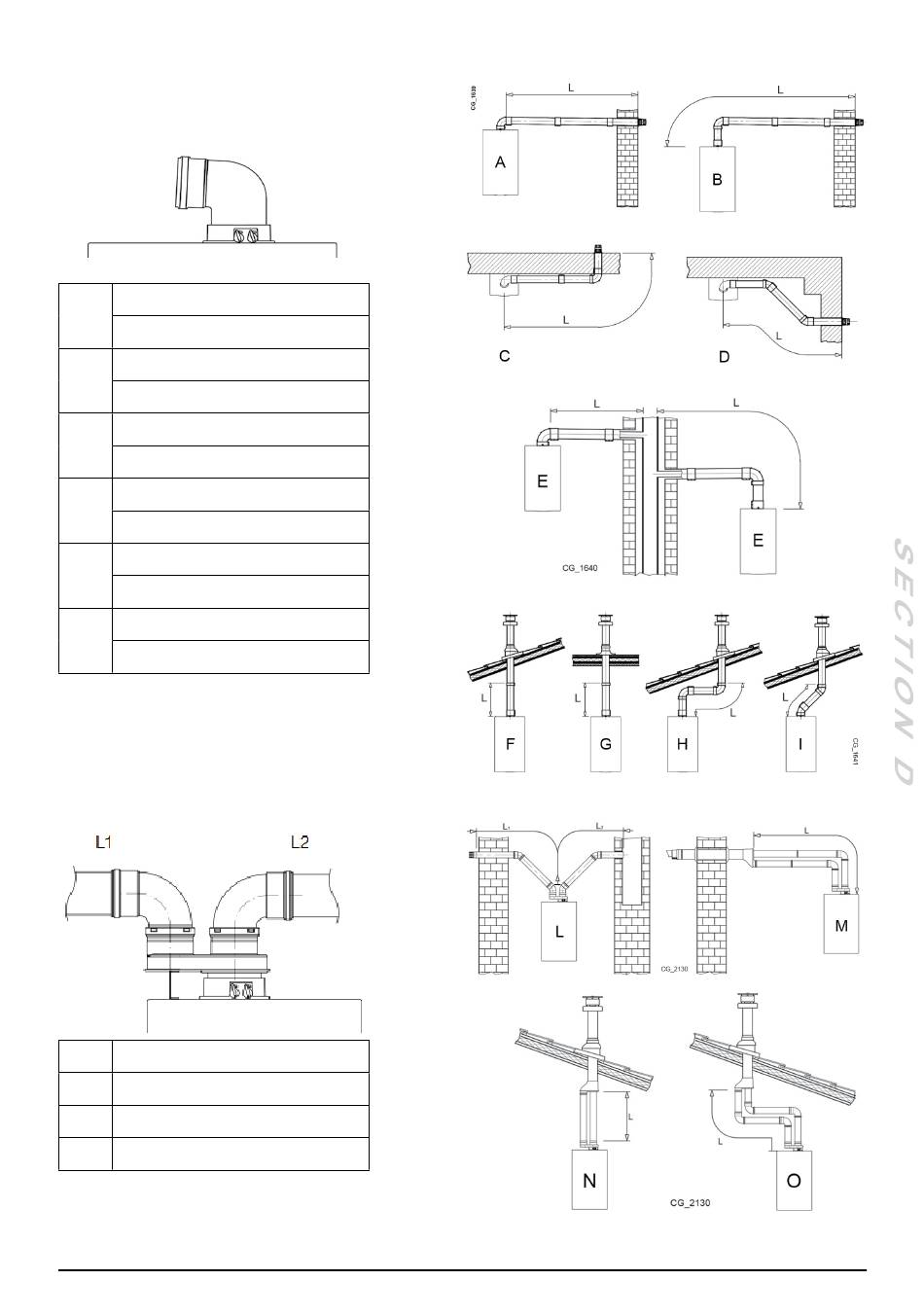

Lmax = 10 m - Ø 60/100 mm
A B
Lmax = 25 m - Ø 80/125 mm
Lmax = 9 m - Ø 60/100 mm
C D
Lmax = 24 m - Ø 80/125 mm
Lmax = 10 m - Ø 60/100 mm
E
Lmax = 25 m - Ø 80/125 mm
Lmax = 10 m - Ø 60/100 mm
F G
Lmax = 25 m - Ø 80/125 mm
Lmax = 8 m - Ø 60/100 mm
H
Lmax = 23 m - Ø 80/125 mm
Lmax = 9 m - Ø 60/100 mm
I
Lmax = 24 m - Ø 80/125 mm
(L1+L2) max = 80 m - Ø 80 mm
L
L1 max = 15 m
M
L max = 15 m
N
L max = 15 m
O
L max = 14 m
33 7698968.01 (1-01/18)
