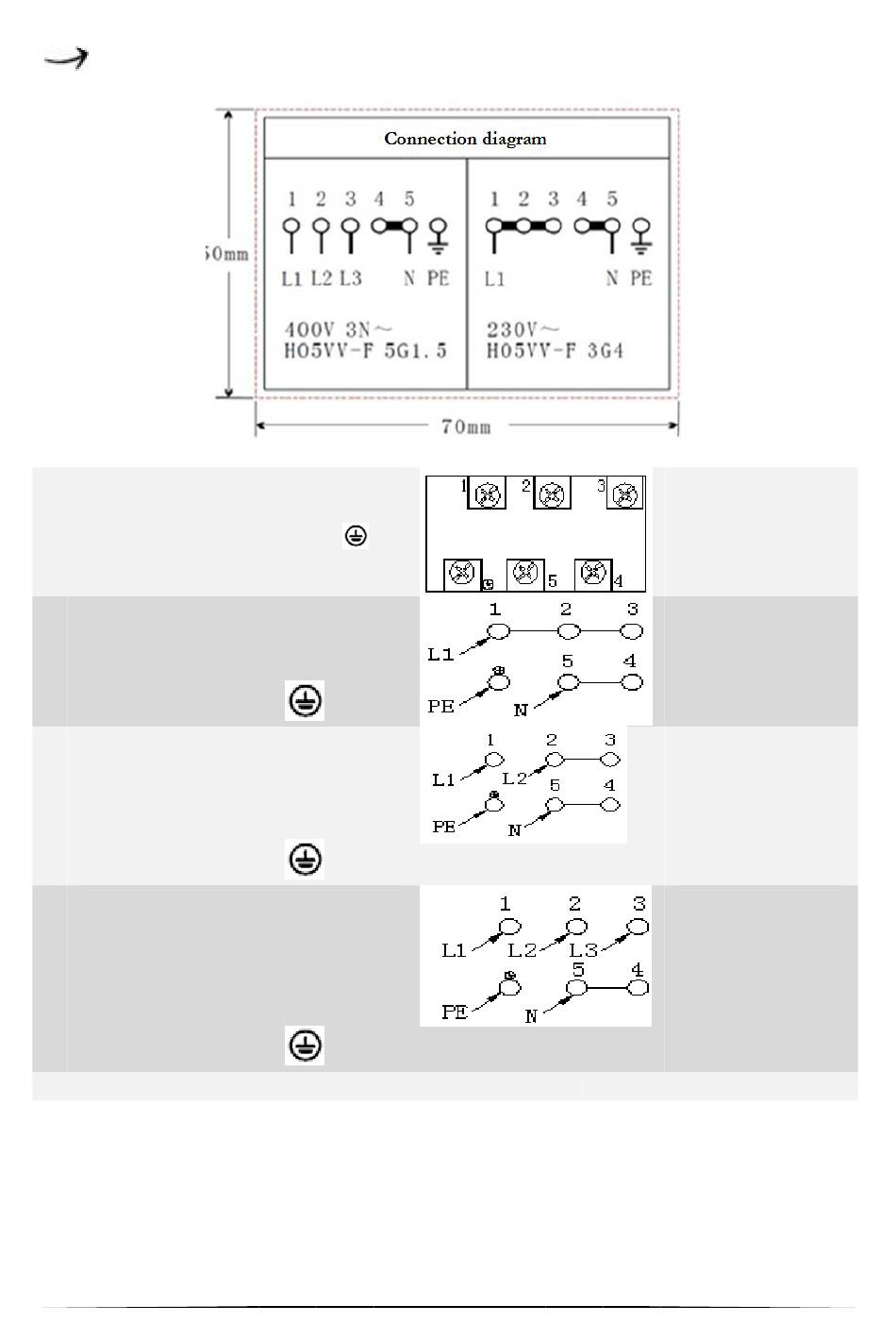

Connection diagram
Voltage heating elements 230V.
Any kind of connection: the safety
wire must be connected to the
PE terminal.
1 For 230 V earthed one-phase
connection, bridges connect 1-2-
3 terminals and 4-5 terminals
Protective ground to
2 For 400/230V earthed two-
phase connection, bridges
connect 2-3 terminals and 4-5
terminals
Protective ground to
3 For 400-230V earthed three-
phase connection, bridges
connect 4-5 terminals, phases in
succession 1,2 and 3, Neutral to
4-5
Protective ground to
L1=R, L2=S, L3=T
1. Check that the technical data of your energy supply meet the values on the
nameplate.
2. Your domestic circuit must be equipped with an automatic circuit breaker.
3. Do not attempt to repair the appliance yourself. Repairs carried out by
unauthorized persons can cause serious damage. Always contact the nearest
N= Earth
33
Recommended
type of
connection lead.
H05VV-F3G4
H05VV-F4G2,5
H05VV-F5G1,5
PE= earth wire terminal
