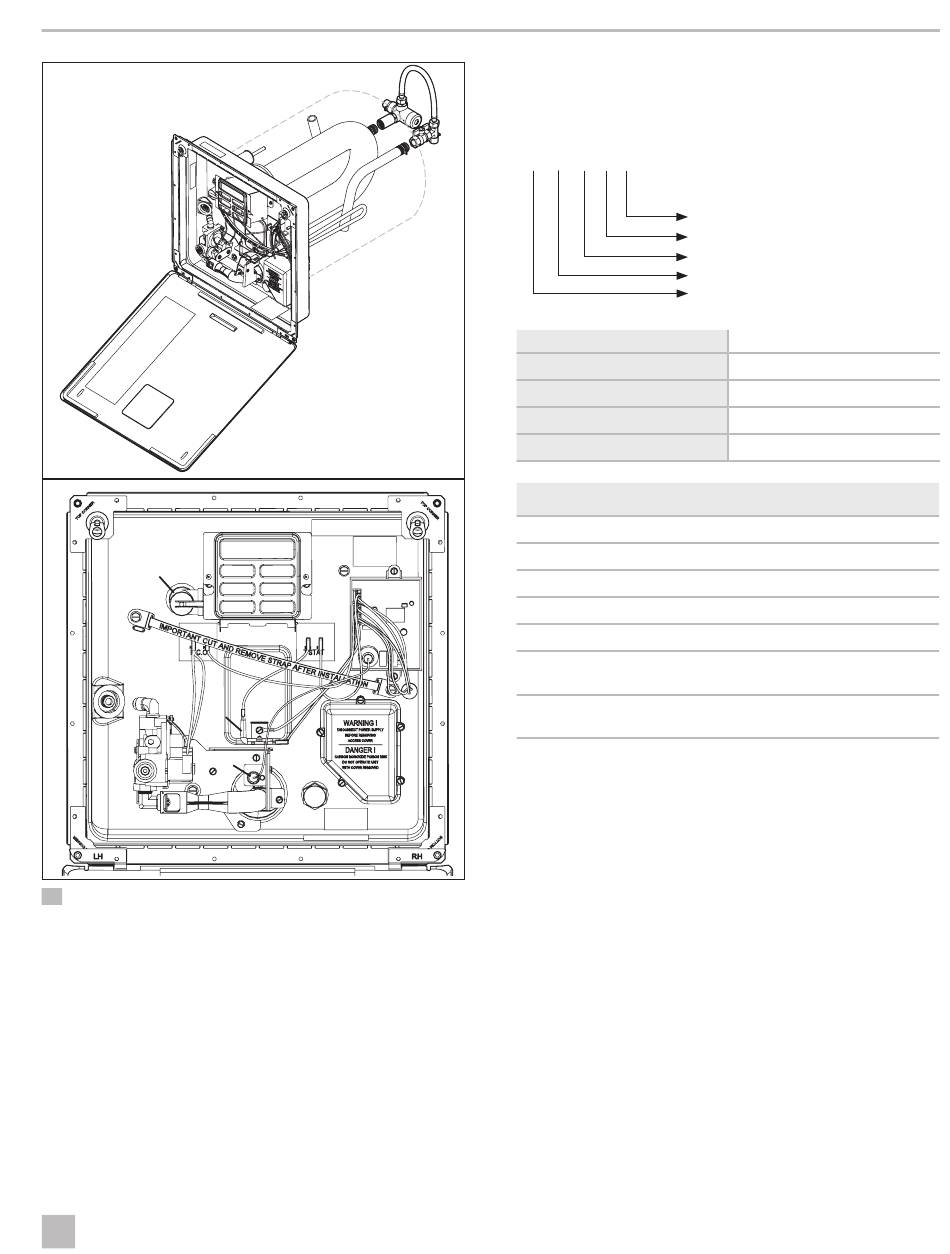

2 WH - 10GEA and WH - 16GEA Component Locations
Access Door
q i
Water Heater Tank
w o
Flue Assembly
e a
Hot Water Outlet
r s
Cold Water Inlet
t d
Gas Valve
y f
Electrode
u
EN
r
w w
t
e e
s s
d d
f f
E.C.O.
Thermal Cut-off
P/T Relief Valve
DSI Control Board
Thermostat
Electric Junction Box/Element
Access Cover
(this cover must be sealed)

3.3 Model Identification

This section describes the breakdown of the model
identification numbers.
WH - 6 - G E A
Product
Volume
Fuel Type
AC Element Type
Revision
Available Models
WH - 6GA = 6 gallon gas only
WH - 6GEA = 6 gallon gas and electric
*WH - 9GEA = 9 gallon effective gas and electric
WH - 10GEA = 10 gallon gas and electric
**WH - 16GEA = 16 gallon effective gas and electric
* The water heaters actual capacity is 6 gallons respectively. The effective capacity, calculated gallons of
130°F (54°C) moderated water is 9 gallons.
** The water heaters actual capacity is 10 gallons respectively. The effective capacity, calculated gallons
of 130°F (54°C) moderated water is 16 gallons.
Regardless of your revision number, these
I
instructions are still generally applicable to your
unit. If you have questions, contact your dealer, a
Dometic Service Center, or the Dometic Service
Department.
General Information
Revision Number
AC Element Type
Fuel Type
Volume
Product
WH = Water Heater
# = Gallons
G = Gas (Propane)
E = Electric
A
