headboard bracket installation guide (optional)
A 9/16" & 1/2" socket and crescent wrench are necessary to complete installation.

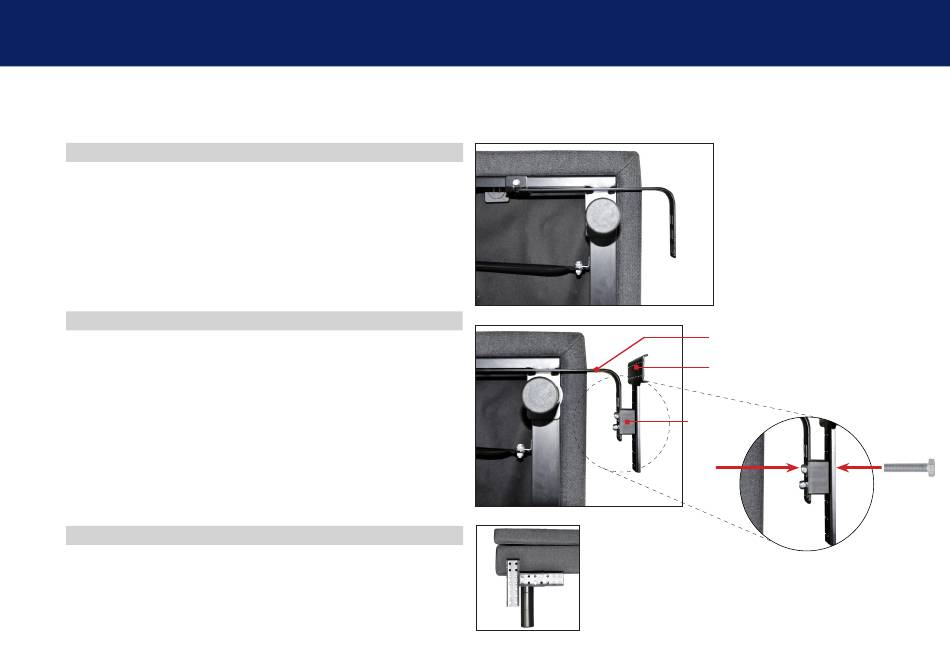

STEP 1
a.) Align the hole in the bracket to the brass sleeve into which the leg
threads. Hold the bracket in place and screw the leg into the base
until it is snug. DO NOT OVERTIGHTEN. Too much force may cause the
leg to spin freely.
b) Align the tab with the hole in the frame (located towards the foot of the
base) and use a short bolt and nut to secure the bracket. Make sure
the bolt is tight.
STEP 2
Attach the plastic spacer and T-Bracket.
a.) Measure the distance between the mounting holes on the headboard
and install the spacer and attachment plate to accommodate the
headboard.
b.) To install the plastic spacer and attachment plate, you will need (2) long
bolts and (2) nuts. Place the spacer and attachment plate in the desired
location and slip the bolts through the holes with the head of the bolt
facing outward. Position the bolts diagonally on the spacer. Use the
9/16" socket and wrench to tighten the bolts.
STEP 3
You may now connect your headboard to the attachment plates using the
remaining short bolts and nuts to secure it to the brackets. The heads of
the bolts will face outward. Use a 9/16" socket and 1/2" wrench to tighten
the bolts.
16
Headboard Brackets are an optional accessory and are not included.
Headboard
Bracket
T-Bracket
Spacer
Nut
Long
Bolt
