Connections - Sharp PN-86HC1 Manuel D'installation

Caution
• Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/disconnecting
cables. Also, read the manual of the equipment to be connected.
• Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables
connected to the input and output terminals may cause malfunctions and other problems.

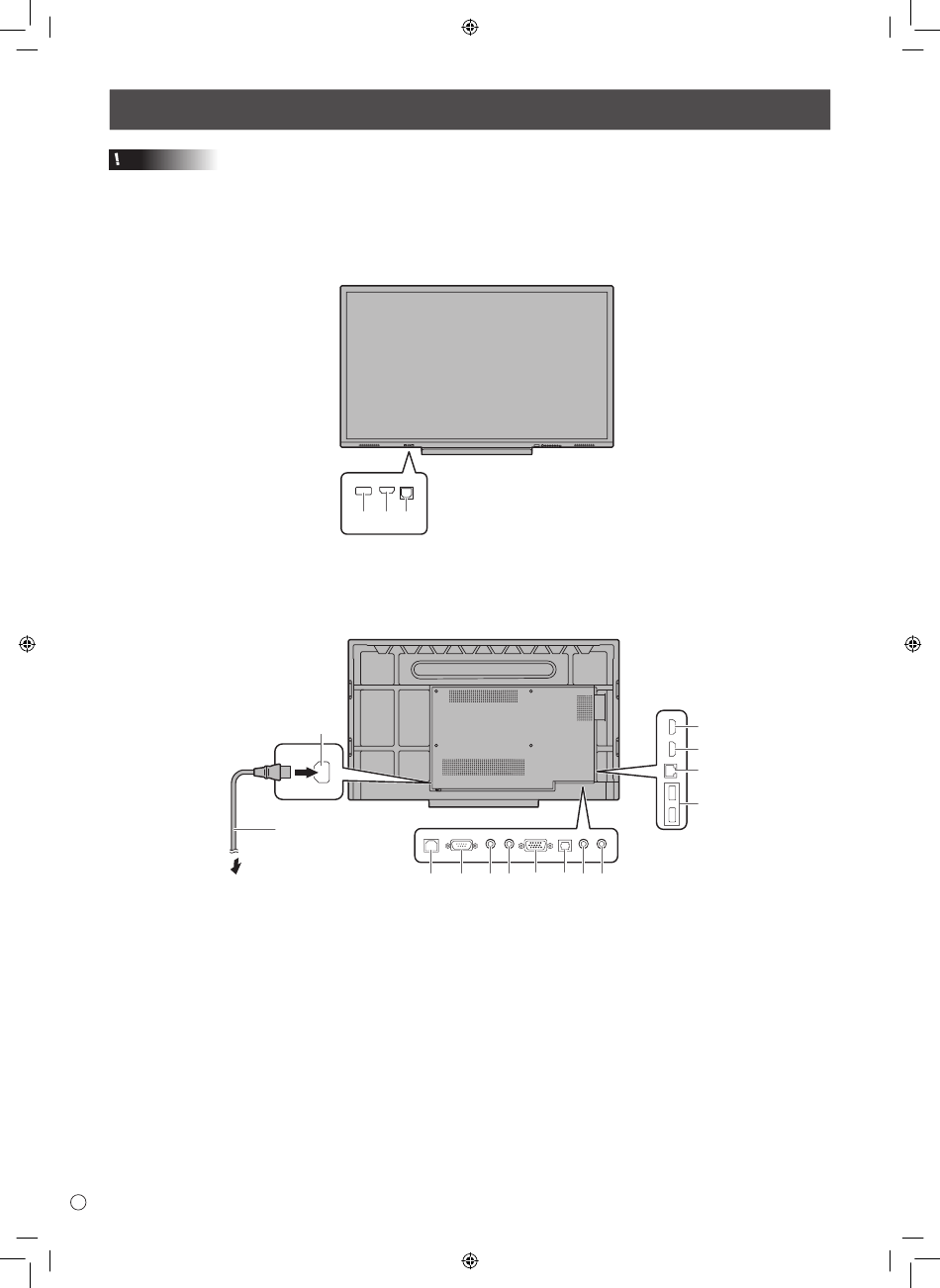

nFront view
1. USB port (USB 2.0 compliant)
2. HDMI 1 input terminal
nRear view
For power outlet
4. HDMI 3 input terminal
5. HDMI 2 input terminal
6. LAN terminal
7. TOUCH PANEL terminal 2 (for touch panel)
8. RS-232C input terminal
9. Audio output terminal
10. Audio input terminal
6
E

Connections

1 2 3
15
Power cord (Supplied)
7 8
3. TOUCH PANEL terminal 1 (for touch panel)
9 10 11 12 13 14
11. D-sub input terminal (VGA)
12. Digital audio output (optical) terminal
13. Mini AV input terminal
14. Mini Component input terminal (YPBPR)
15. AC input terminal
