Components

1 2 3
8
¢1 There is an operation button on the marine case that has multiple functions.
Follow the button indication (function) on the digital camera when using the
marine case.
This function may not be available depending on the camera used.
¢2 This is a mounting shoe dedicated for an external strobe manufactured by
INON Inc.
Please refer to INON Inc. regarding compatible strobe.
http://www.inon.co.jp/INON_WORLD_body.html
8
VQT3M28
4 5 6
7
9
12

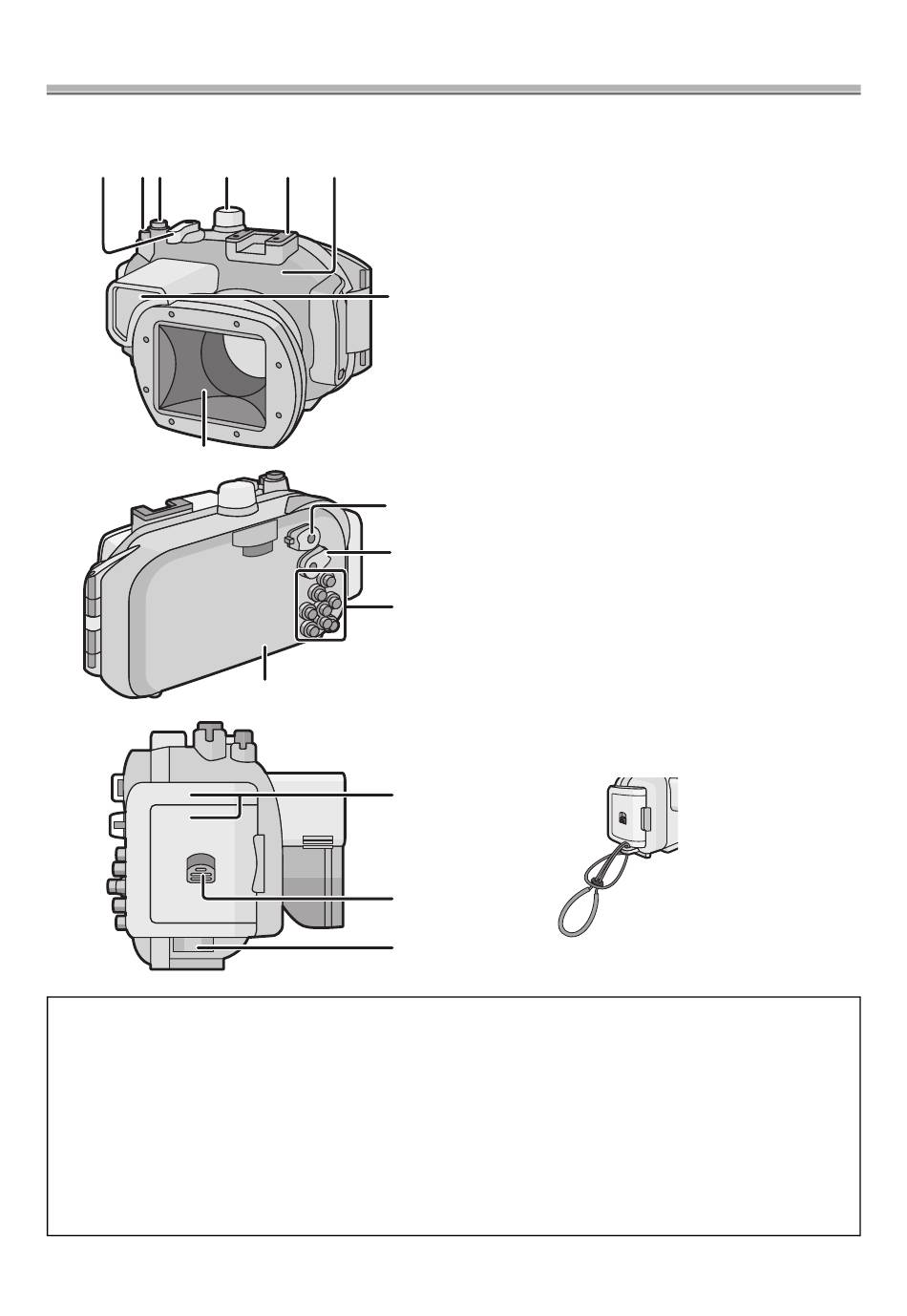

1. Zoom Lever
2. Motion Picture Button
3. Shutter Button
4. Mode dial
5. Mounting shoe for INON
Inc., external strobe
6. Front Case
7. Diffuser (supplied)
8. Front Glass
9. Camera ON/OFF Switch
10. [Rec]/[Playback] selector
switch
11. Button operation section
(Read the operating
instructions of the digital
10
camera for details about
each button operation.)
11
12. Rear Case
13. Buckle
14. Lock Release Lever
15. Strap Eyelet
(for attaching the supplied hand
strap and diffuser)
13
14
15
