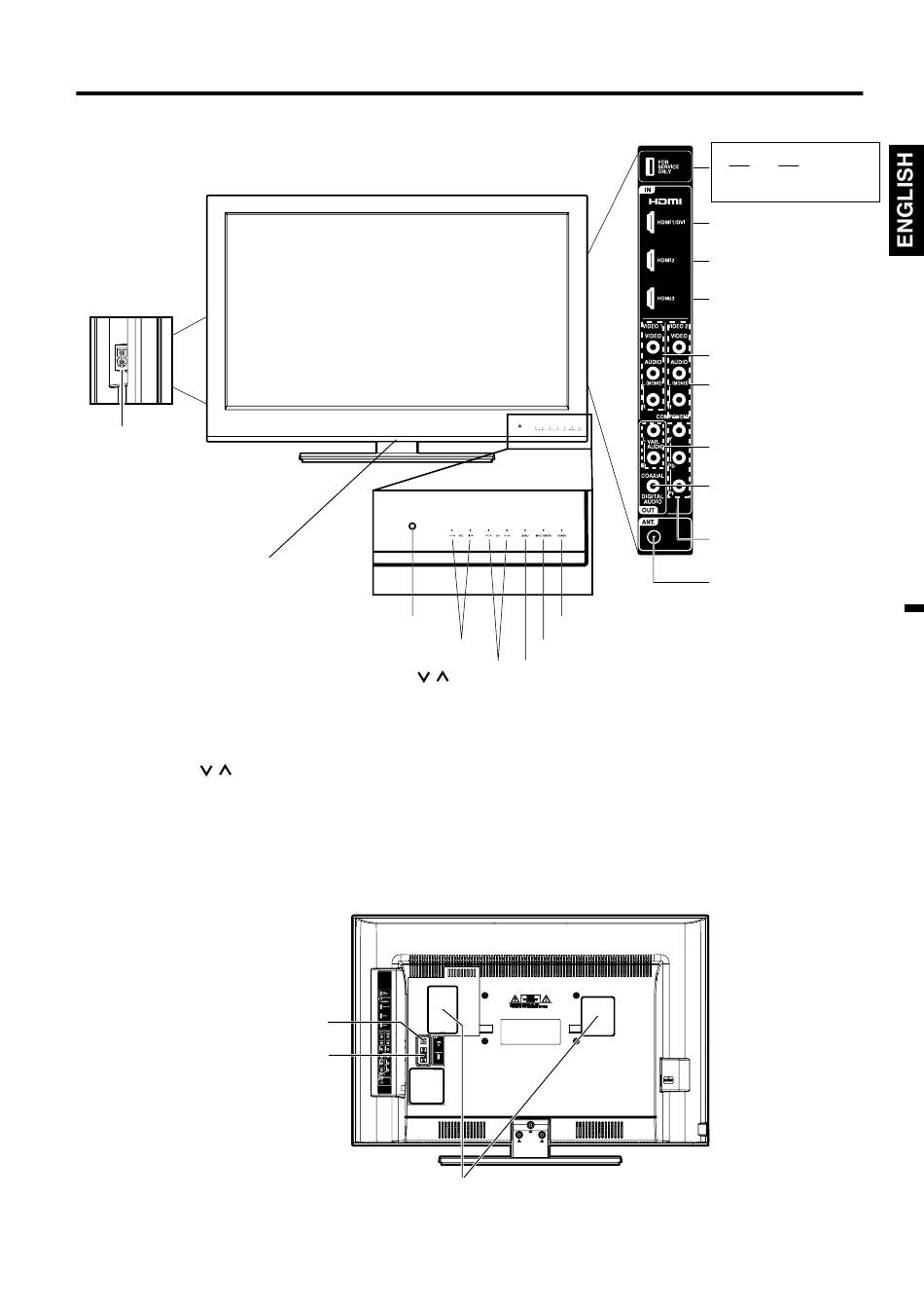

Front
Left side
AC INPUT jack
Power Indicator
Red : Standby
Blue : On
To display the menu screen.
Touch MENU button to display the menu screen.
CH (CHANNEL) / buttons, VOL (VOLUME) –/+
buttons and INPUT/ENTER button can be used to
select the desired setting during the menu screen
operations.
PC/DVI AUDIO IN jack
PC MONITOR IN jack
Service connector cover: Please do not open this cover. There is a socket only for service purpose inside.
Remote sensor
VOL (VOLUME) –/+ buttons
buttons MENU
CH (CHANNEL) /
Rear

Parts and functions

Right side
POWER button
INPUT/ENTER button
button
FOR SERVICE PERSONNEL USE ONLY
Do NOT insert ANY USB device into
this port. Use of this port by other
than Service Personnel may void this
products warranty.
HDMI1/DVI IN jack
HDMI2 IN jack
HDMI3 IN jack
VIDEO 1 IN jacks
(VIDEO/AUDIO
(L(MONO)/R))
VIDEO 2 IN jacks
(VIDEO/AUDIO
(L(MONO)/R))
VAR. (VARIABLE)
AUDIO OUT jacks
DIGITAL AUDIO
COAXIAL OUT jack
COMPONENT
IN jacks
RF (ANT.) IN jack
