Connections to other equipment

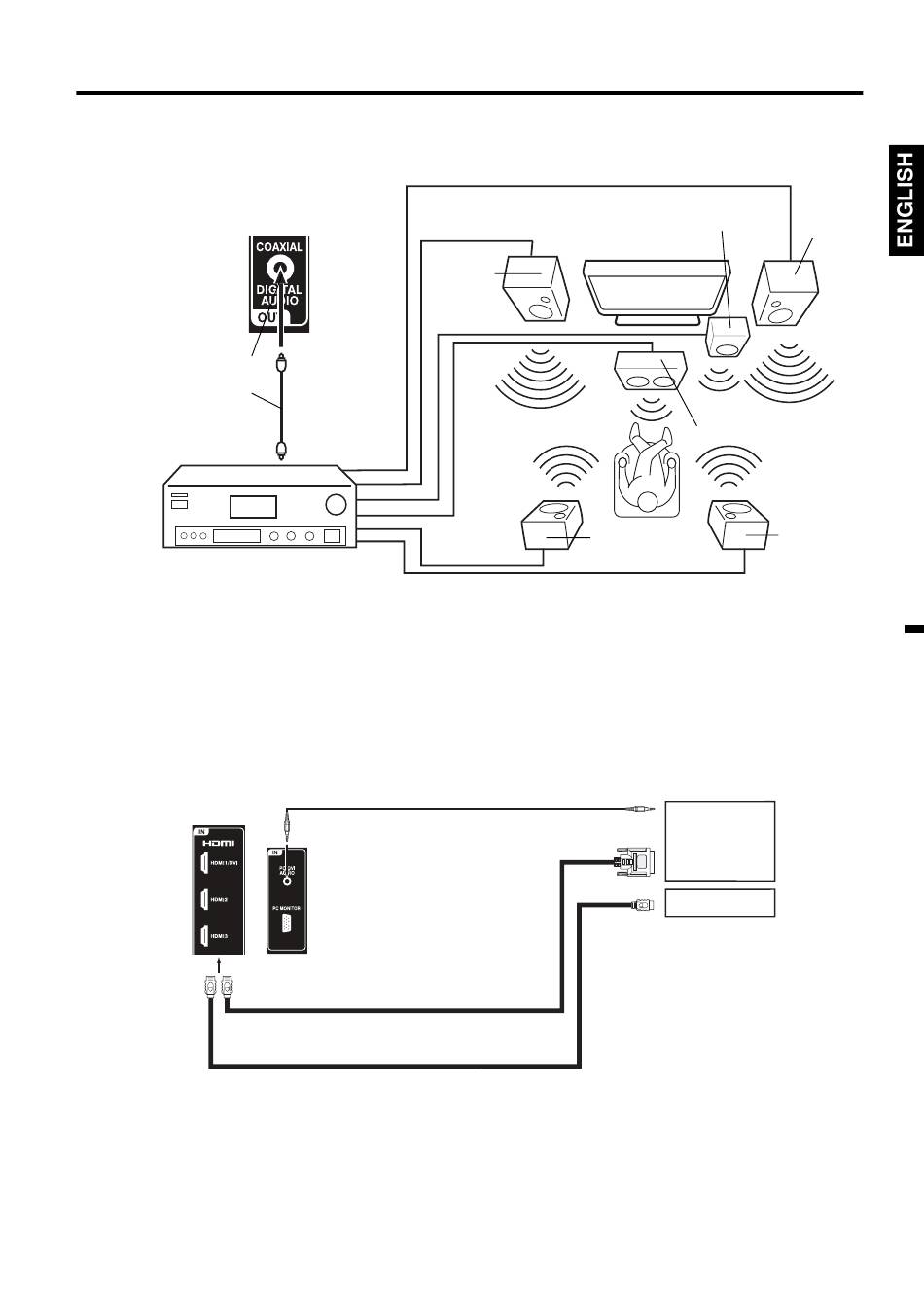

Using an AV Amplifier with built-in digital surround
If you are using an Amplifier with built-in digital surround sound, you can enjoy various audio systems including
Dolby Digital Surround audio that sounds just like the movie.
Connect an AV amplifier with built-in Dolby Digital decoder, etc. as shown below.
Right of the unit
To DIGITAL AUDIO
COAXIAL OUT
Coaxial digital cable
(not supplied)
To Coaxial
Digital Audio IN
AV Amplifier with built-in digital surround
decoder as listed above
NOTE:
• When you are viewing digital broadcast, this unit will not work in conjunction with DTS audio or MPEG audio.
There will be no sound output if connected to an AV amplifier with a built-in DTS decoder or MPEG decoder.
To connect the LCD TV to a HDMI or a DVI device to the unit
The HDMI1/DVI input receives digital audio and uncompressed video from a HDMI device or uncompressed
digital video from a DVI device.
When you connect to a DVI device with a HDMI-to-DVI adapter cable, it transfers only video signal. Separate
analog audio cords required.
Right of the unit
To HDMI
IN
NOTE:
• When using HDMI1/DVI to connect your HDMI or DVI devices, you must select the corresponding
audio input source (HDMI or DVI) on the menu screen (see page 17). Otherwise you will only see the
image with no sound.
Speaker
Audio cord (not supplied)
To PC/DVI
AUDIO IN
HDMI - to - DVI adapter cable
(HDMI type A connector)
(not supplied)
HDMI cable (type A connector)
(not supplied)
Front
(Left)
Surround
Speaker (Left)
To DVI output
To HDMI out
(continued)
Front
Speaker
Subwoofer
(Right)
TV
Center Speaker
Surround
Speaker
(Right)
DVI device
or
HDMI device
