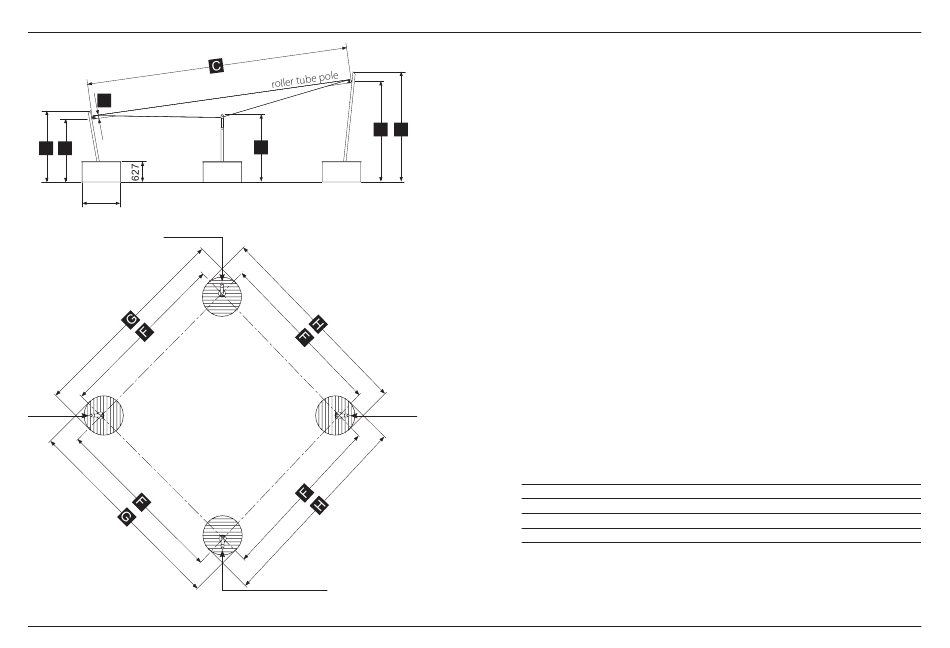

VERSION WITH BALLASTED BASE
Ø
I D
ø1200
motor pole
short pole
28 of 99
E M
B
long pole
motor pole
VELOMBRA SRL  USER MANUAL  INTREPID
B C D E
MOD. 4
2760 5440 2400 3300
MOD. 5
2760 6840 2400 3300
MOD. 6
2760 8400 2400 3800
MOD. 7
2760 9800 2400 3800
F: referring from plate centre to plate centre
G, H: referring from pole top centre to pole top centre
F G H I M Ø
3382 4580 4580 2685 3685 80
4382 5580 5580 2685 3685 120
5382 6580 6580 2685 4190 120
6382 7580 7580 2685 4190 120
