8. Touch-screen

The COCKPIT SX features a total of five Status displays.
Every time you switch the system on you will see the
Timer display.
(if Throttle Check is active, you may see an appropriate war-
ning; when you confirm this, the Main menu appears instead).
The Status displays:
The various displays can be called up one by one by "swiping"
across the screen to left or right.
1. Timer display
T1 - shows the motor run time.
T2 - shows the total flight time.
Special feature:
swiping upwards starts speech output for Timer 1; swiping
downwards starts speech output for Timer 2.
2. Telemetry / Sensor display
Here you will see the sensors previously selected in the
Telemetry menu.
3. Transmitter information
regarding transmitter battery capacity, software version, run
time, etc.
4. Position display with centre beep
for the supplementary transmitter controls
(Spoiler / T-Limit and Flap / AUX1).
5. Screen sliders (LCD L and LCD R)
can be activated by pressing the "Slider active" knob: they
are then ready to be used. The value of either slider can
be changed by swiping up or down as you wish; the value
is then stored in the corresponding model data set. If the
output is intended to affect a servo channel directly, you will
need to assign "LCD L" or "LCD R" to the appropriate ser-
vo channel in the Servo Assignment menu. Alternatively the
value can be used as an input in one of the free transmitter
control / servo mixers. The screen sliders are ideal for all
settings which can easily be adjusted on the ground, when
the model is at a standstill, i.e. when it is not actively flying
or running.
Examples:
Gyro gain setting, switching the lights on a multi-function
model, etc. .... .

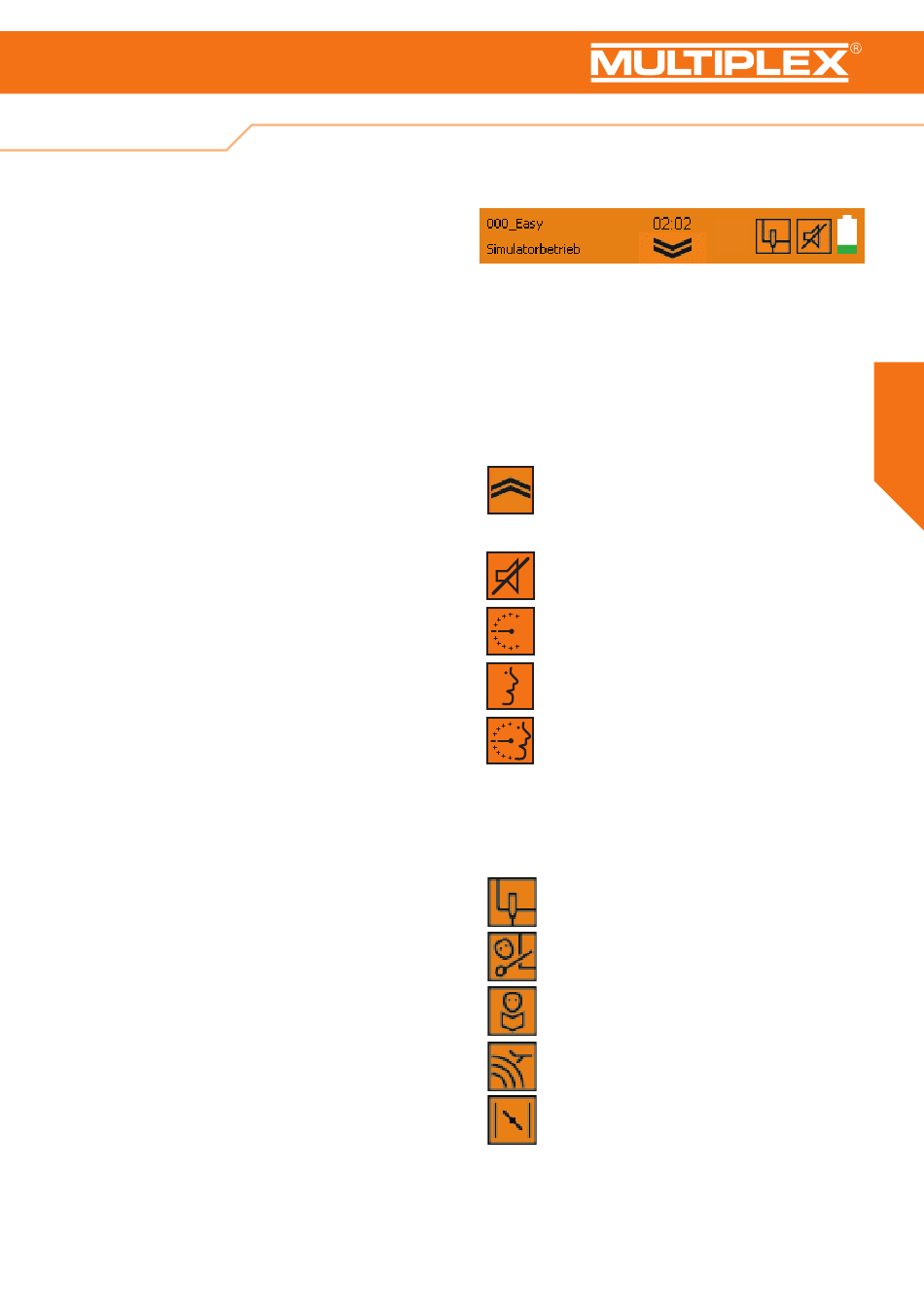

The Status bar:
The Info / Status bar contains:
· Model memory with model name
· Position in the menu
· Time of day
· Double-arrow symbol for opening / closing the current
menu or the main menu.
· Telemetry output status display:
Sound off
Vario tone output
Announcement of the telemetry data
Alternating telemetry data and vario tone output
The Telemetry status can be changed by pressing this
symbol, and by using the Teacher / Vario button.
The status is stored for the flight phase currently selected.
· Symbols for special operating modes:
Simulator mode active
Trainer mode active
Pupil mode active
Range check active
Throttle emergency off active
· Battery state display

