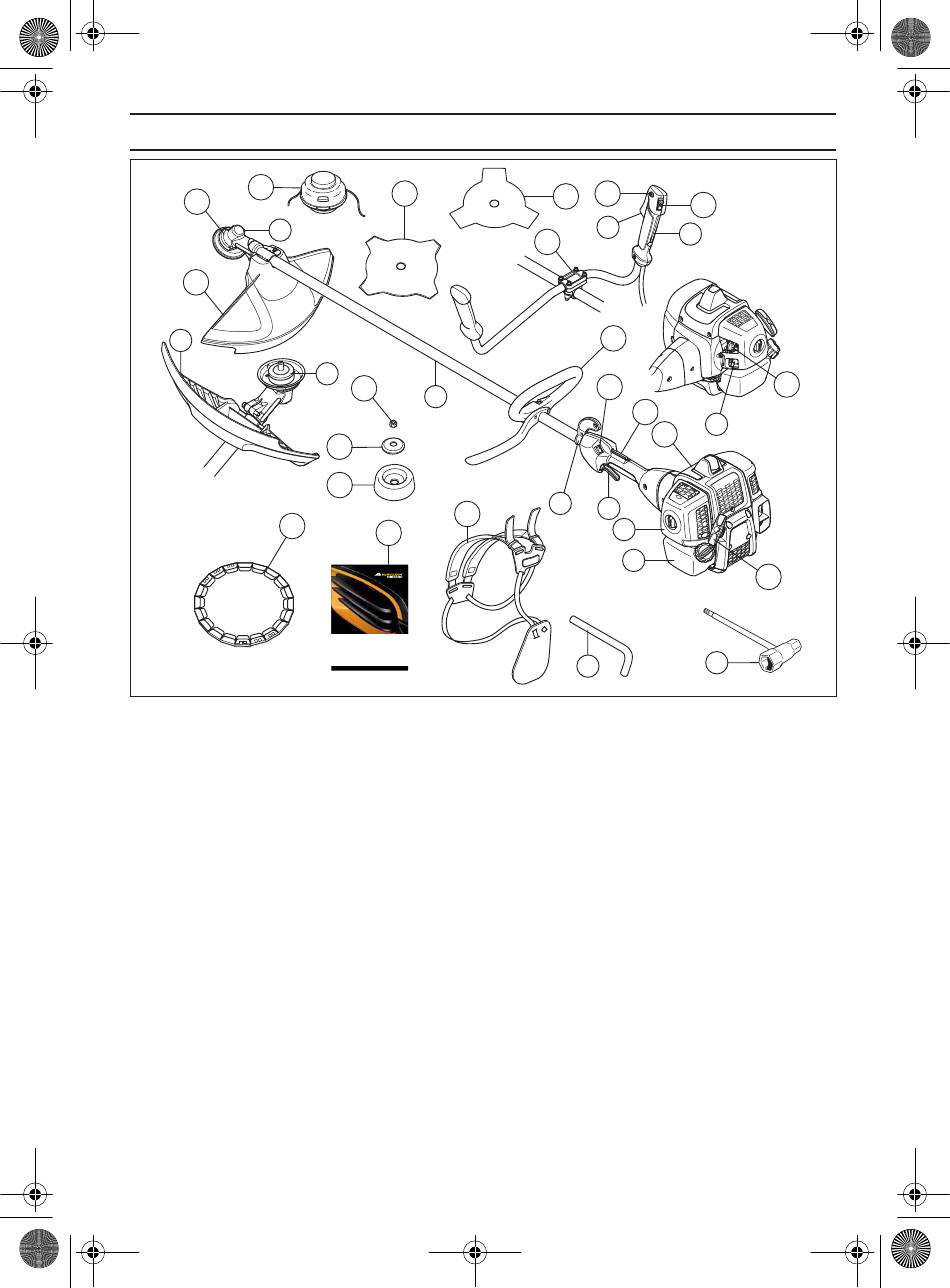

What is what on the brush cutter?

1 Blade
2 Grease filler cap, bevel gear
3 Bevel gear
4 Cutting attachment guard
5 Shaft
6 Start throttle button
7 Stop switch
8 Throttle trigger
9 Throttle lockout
10 Suspension ring
11 Cylinder cover
12 Starter handle
13 Fuel tank
14 Choke control

WHAT IS WHAT?

1
20
17
5
18
19
26
22
15 Air filter cover
16 J-handle (B40 P)
17 Locking nut
18 Support flange
19 Support cup
20 Drive disc
21 Handlebar clamp (B40 B)
22 Operator's manual
23 Transport guard
24 Socket spanner
25 Locking pin
26 Harness
27 Air purge.
28 Trimmer head
6
1
7
8
9
21
16
7
9
27
11
10
8
15
13
24
25
14
12
