NOTE: Remove the film from the duct covers.

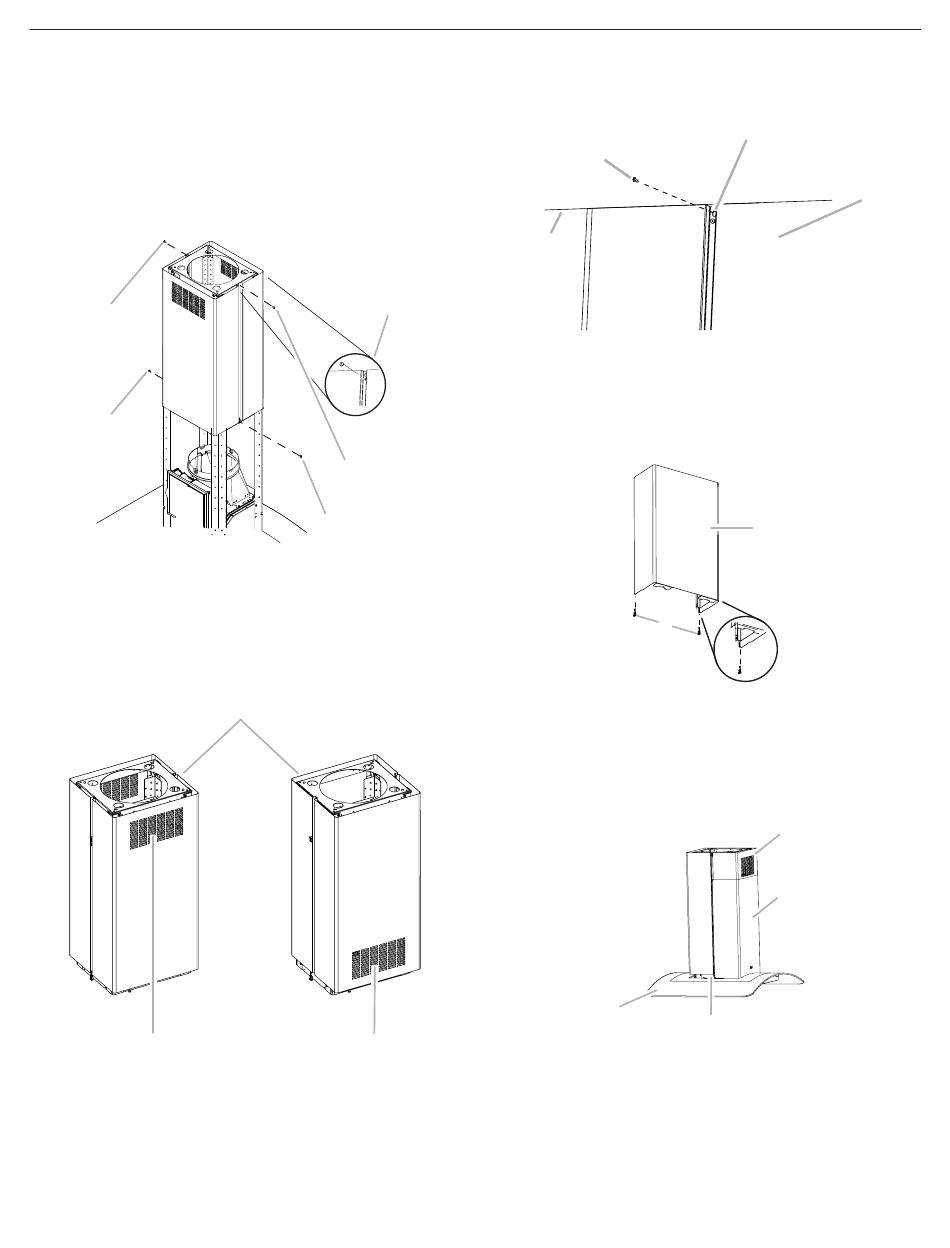

1. Assemble the upper duct covers together and install
the duct covers around the support frame. The larger
hole in the flanges of the upper duct cover must be
outside the smaller hole in the mating flange of the
other upper duct cover.
2. Secure the upper duct covers together with two
3.5 x 6.5 mm screws at the top and two 2.9 x 3 mm
screws at the bottom. Install 1 screw on each side
at the top and bottom of the assembled duct covers.
A
C
A. 3.5 x 6.5 mm screws (2)
B. Assembly holes (larger hole outside
of smaller hole on both sides)
C. 2.9 x 3 mm screws (2)
NOTE: For non-vented (recirculating) installation, the slotted
holes in the upper duct covers will be visible when assembled.
For vented installations, the slotted holes will be hidden down
inside the lower duct covers.
B
A. Top toward ceiling
B. Slots installed up for non-vented installations
C. Slots installed down for vented installations

Install Duct Covers

B
A
C
A
C
3. Slide the upper duct covers up the frame to the
ceiling and secure to the upper horizontal support
with 2 - 3.5 x 6.5 mm screws.
A
D
A. 3.5 x 6.5 mm screw
B. Slotted holes (2)
C. Upper duct covers
D. Ceiling
4. Place the long end of the plastic clips (2) into the bottom
of the front lower duct cover.
B
A. Lower duct cover - (front)
B. Plastic clips (2) (long end for front placement)
5. Install the lower duct cover (front) to the range hood canopy.
Spread the lower duct cover opening slightly and position it
over the upper duct cover. Set the lower duct cover in place.
Position so the flanges of the lower duct cover set into the
flanges of the upper duct covers.
A
A. Range hood canopy
B. Plastic clips
C. Lower duct covers
D. Upper duct covers
B
C
A
D
C
B
