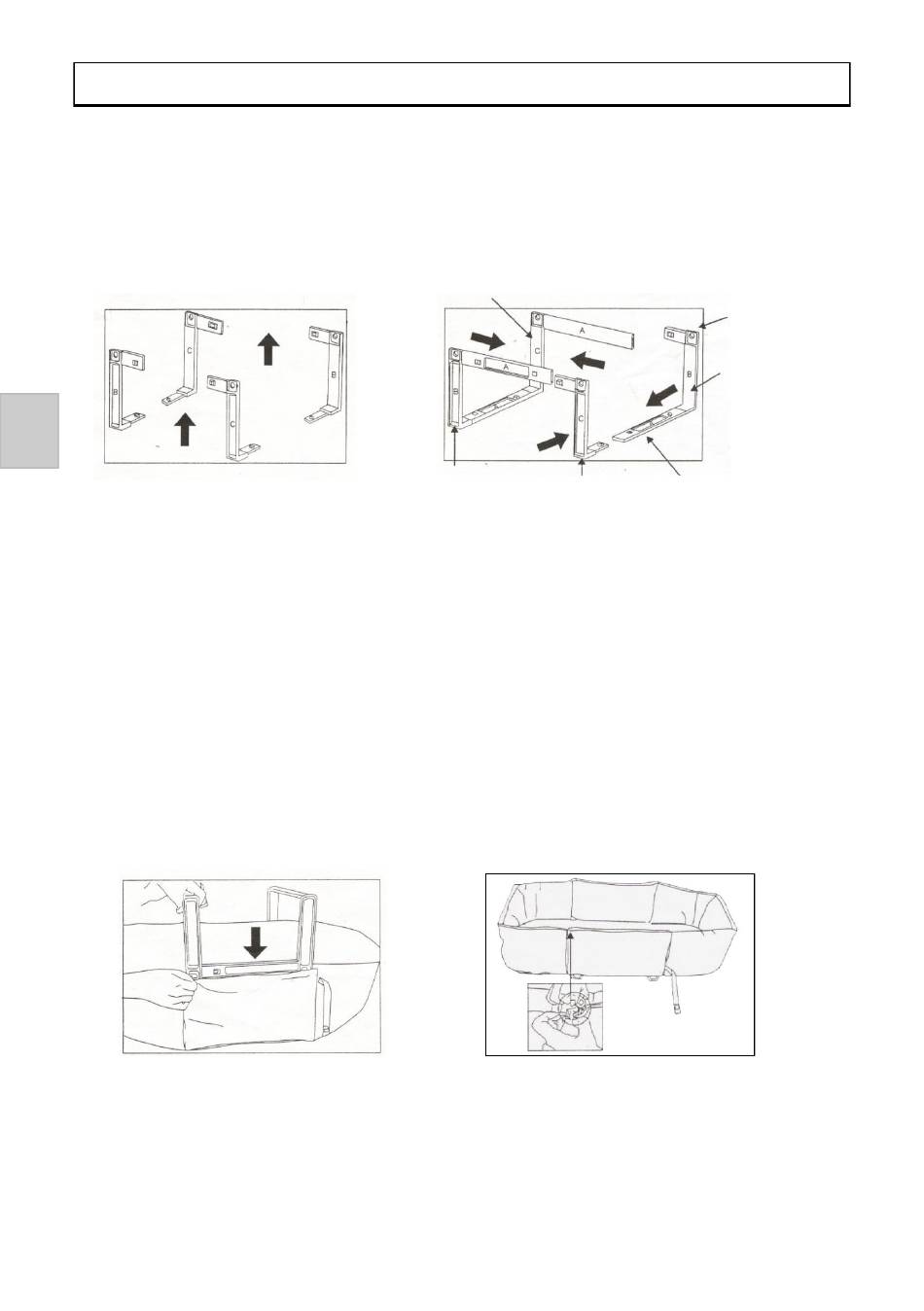

1. To assemble the carry cot, put four joint bars on flat platform as shown
(joint bar with hole side should be on top) (see fig.1).
2. Push straight bar to click with joint bar one by one (see fig. 2)
EN
3. To assemble the plastic assembly with sewing part (carry cot body), have
carry cot body's bottom face up and insert the plastic assembly into the side
opening pocket of carry cot body (see fig. 3).
4. Put carry cot back to it's normal position and hook the belts on the carry cot
body (see fig. 4).
(Fig. 3)
(Fig. 1)
ASSEMBLING
Right joint bar
nr. 2
Left joint bar Right joint bar
nr. 2 nr. 1
10
Hole
Left joint bar
nr. 1
Right bar
(Fig. 2)
(Fig. 4)
