Derby cycle Focus PARALANE Instructions De Montage page 13

Focus Paralane Carbon & Alu
7
Focus Paralane Carbon & Alu
8

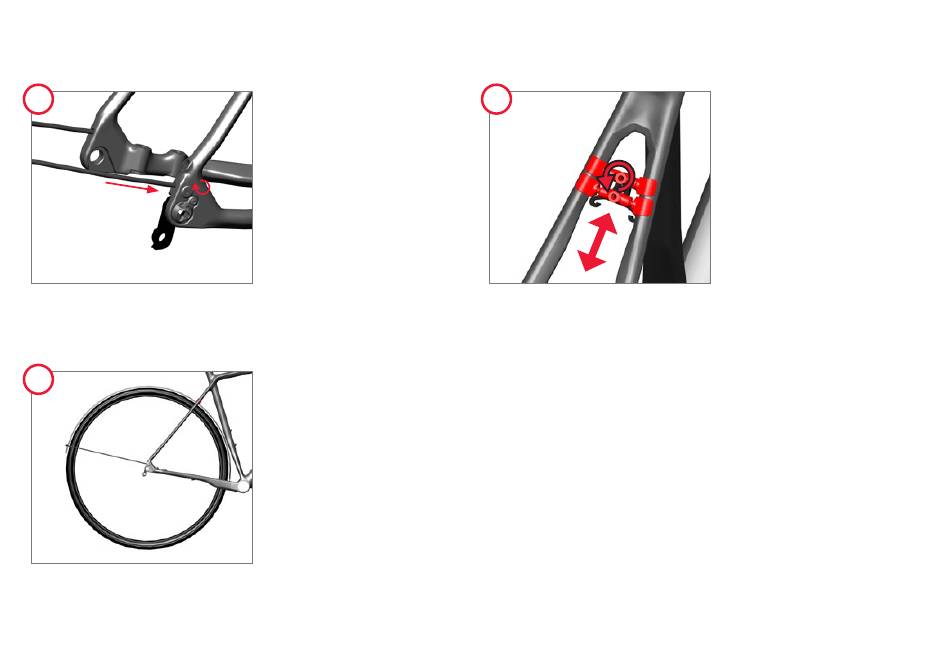

Insert the two stays into
the holes in the forks and
fix them with M4 nuts
using a 2.5 mm Allen key.
The fender should be the
same distance from the
tyre along its entire length
In the worst case, too
small a clearance the
fender can chafe the tyre.
If the fender fouls the seat tube
on small frame sizes: glue more
protective stickers on the seat
tube.
Focus Paralane Carbon
9
Focus Paralane assembly instructions | P. 13
The distance of the mud-
guard can be adjusted
through the position of
the bridge and the
plastic hook. By turning
the central part, the ends
are moved by the thread
and can be adjusted for
different frame sizes.
