38. Gateway

General

38.1
Gateway (base unit) is supplied with an antenna, junction box (Y-split),
display cable and fi tted connection cable (RJ10-connector).
Gateway communicates with up to seven different CTC SmartControl
accessories simultaneously.
The wireless sensors measure the temperature every 100 seconds (default
value). If a reading has changed by more than 2% since the previous
measurement, the new reading is sent to Gateway and is shown on the
display of the main product. A new reading is also sent after a preset
maximum time, as well as when a new sensor is connected and the "learn
button" is pressed.
For information about the function of the CTC SmartControl accessories
and their connection to Gateway, please see the respective chapters in this
manual.
38.2

Installation

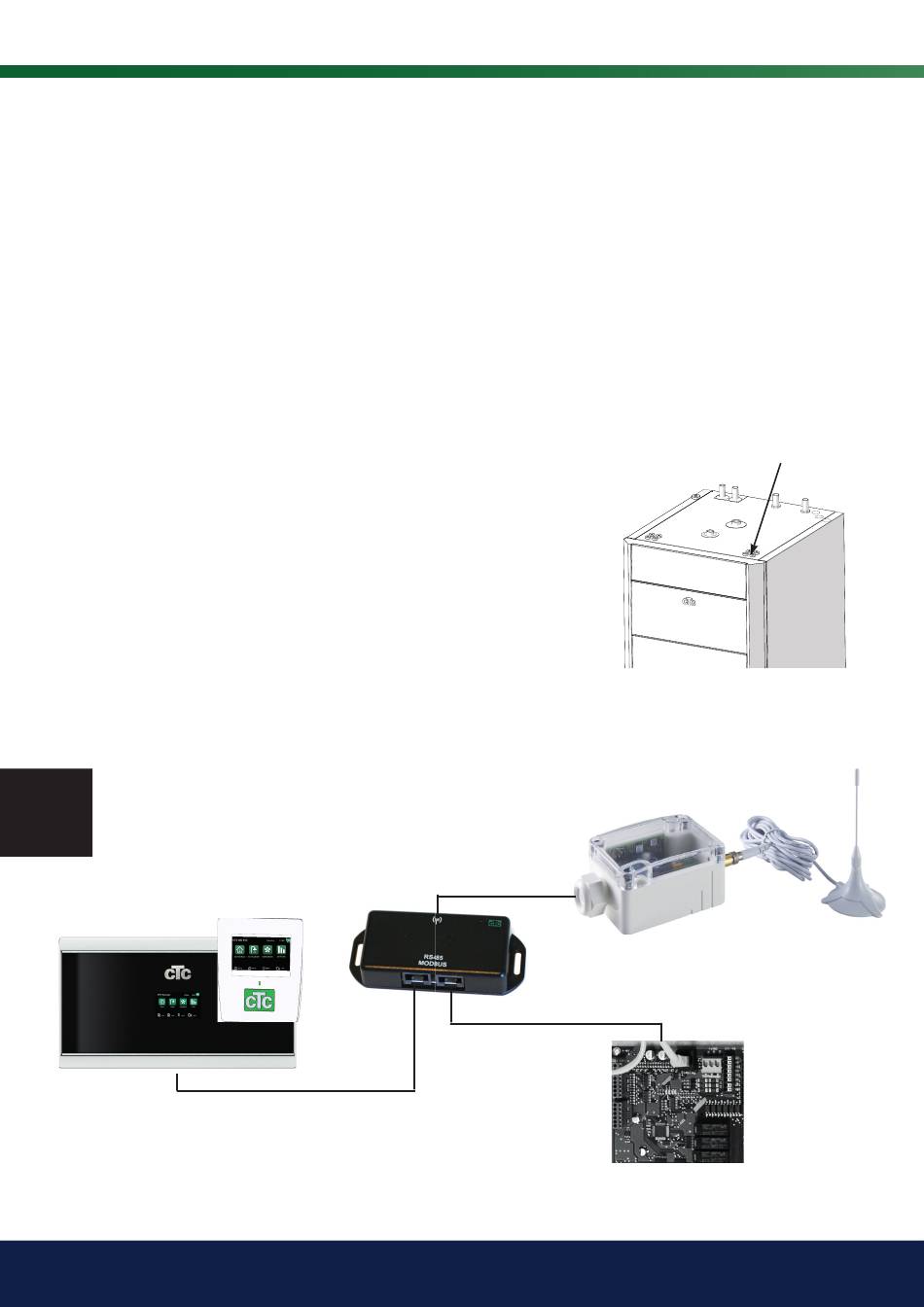

• Place Gateway on a fl at surface on the main product's top cover
insulation and feed the connection cable (1.5 m), which is pre-fi tted
in Gateway, through the low current grommet on the right side of the
top cover. Pull down the cable along the inside of the side panel and
fi t it to the antenna input on the junction box. The junction box can be
attached to the inside of the front cover with double-sided tape.
• Remove the existing display cable from the display unit of the main
product and connect it to one of the two outlets on one side of the
junction box.
• Connect the supplied display cable between the display unit and the
other outlet on the junction box.
The antenna base is magnetic and can be placed on a suitable metal surface
EN
on top of the main product, in a place where good reception can be ensured.
Display unit
38.3

First start

The SmartControl accessories are connected/defi ned via the main product
display. For more information, see the respective chapters for each
accessory.
72
CTC SmartControl
Connection cable
Junction box/
from Gateway
Y-split
Supplied display
cable
Grommet, Low current
Gateway, antenna and cable
Existing display
cable Electrical box (circuit
board A2) in main product
