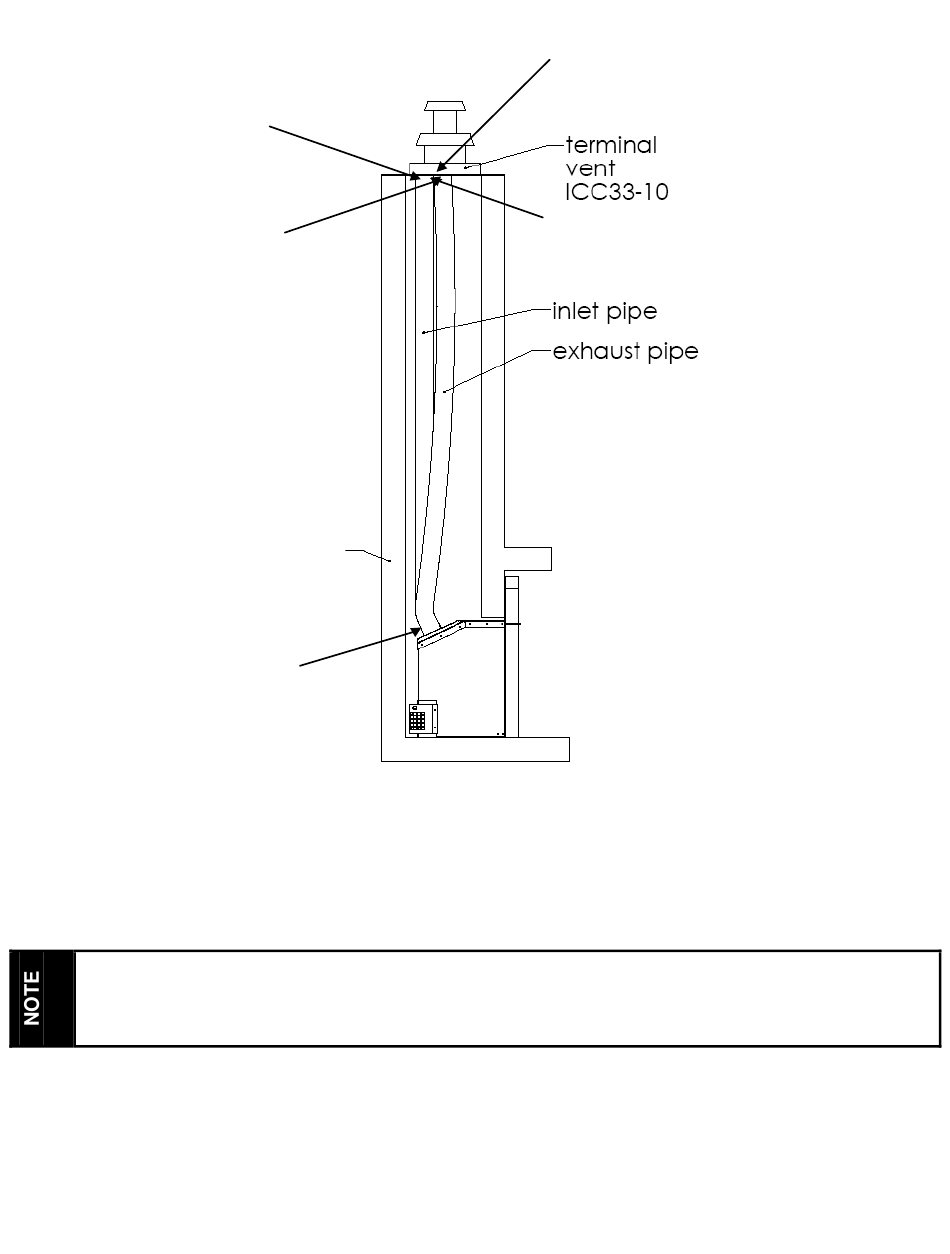

TYPICAL FLEX VENT INSTALLATIONS
Use silicon to seal inlet
pipe to terminal vent.
Use mill pak to seal
exhaust to terminal vent.
Seal the Inlet pipe to the
fireplace using high temperature
silicon then a minimum of 4
screws.
Seal the Exhaust pipe to the
fireplace using mill pak then a
minimum of 4 screws
This appliance's venting system is room sealed or Direct Vent. This means that it does not require
room air for combustion but draws air from outside the building.
1/. Rough-in two 3" diameter vent pipes into the existing masonry chimney. This must be done with
extreme caution so as not to tear or damage the venting. It is often best to leave the top termination
to be completed later.
When viewing your insert from the front, the cold air intake is on the right and the
Lors de la visualisation de votre insert de l'avant, l'entrée d'air froid est sur la droite et
2/. For a large cavity installation the venting can be connected directly onto the insert before sliding
the insert all the way into the cavity. For a small cavity installation remove the screws in the vent
slider and remove the slider from the firebox by sliding towards the back. Install venting accordingly
with Millpak sealant to the collars on the slider and secure with 4 self tapping screws. Slide the firebox
into the cavity and make sure the slider lines up inside the vent slide rails. Reattach to the firebox with
the lock in screws. (see figure 5).
masonry
fireplace
exhaust vent is in the center of the firebox.
le conduit d'évacuation est au centre du foyer
Terminal Vent Cap must be sealed
to the Chimney top to prevent
Figure 4
leakage.
Terminal vent must be secured to the inlet
and exhaust pipes using a minimum of 4
screws
Page 19 of 52
