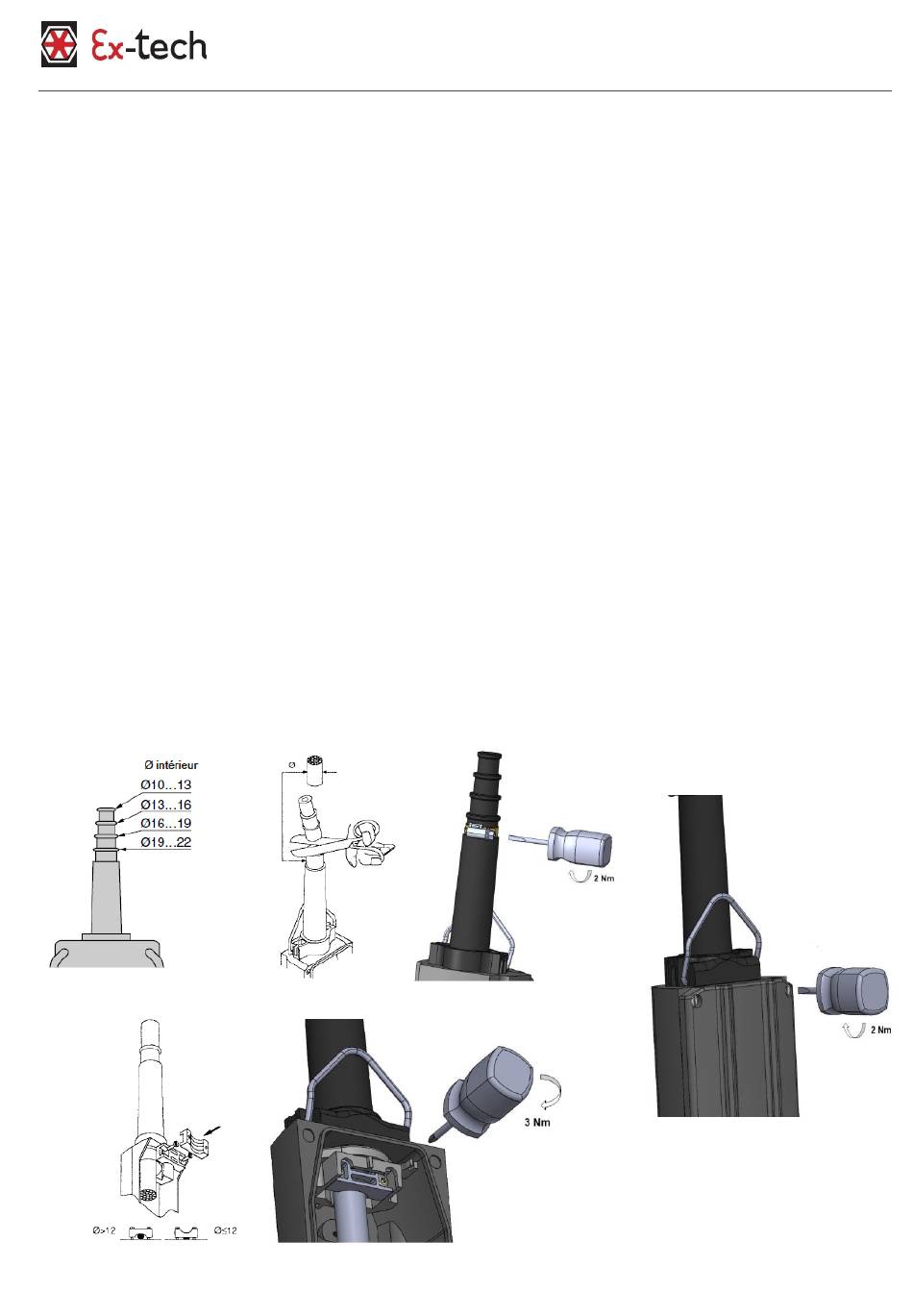

8. Installation
Vérifier que les indications de marquage sont
compatibles avec les conditions admissibles pour la
zone Ex du site d'utilisation
o
Groupe II : Industries de surface
Catégorie 2 : haut niveau de protection
G : Gaz.
D : Poussières.
Avant l'installation et la mise en service, s'assurer
que l'enveloppe sécurité augmentée Ex e
o
n'est pas endommagée extérieurement
o
que les surfaces du couvercle en
contact avec celles du boîtier ne sont
pas endommagées
o
que les filets du boîtier servant à la
fermeture du couvercle ne sont pas
endommagés
Vérifier s'il y a une position de montage spécifique
Le raccordement des conducteurs doit être effectué
avec un soin particulier
L'isolation doit arriver jusqu'à la borne de
raccordement. L'âme conductrice ne doit pas être
endommagée lors du dénudage
Pour ne pas dépasser la température maximale
autorisée, il convient de bien choisir les câbles ainsi
que leur cheminement
Observer les indications qui figurent dans les
caractéristiques techniques.
XAW170A12-06– 08/04/2021
Mode d'emploi /
Operating instructions
Boite pendante de sécurité augmentée XAWP
Incresead safety pendant control station - XAWP series series
Installation
Check if the data on the label of the enclosure are
consistent with the permitted conditions for the
explosive atmosphere of use
o Group II: surface industries
Before installing and commissioning, ensure that the
increased safety enclosures Ex e:
o Is not damaged externally
o The surfaces of the lid which are in contact
o The threads of the housing for closing the
Check if there is a specific position of mounting
The wiring of the cable conductors must be made with
a particular care
The conductor insulation must reach the terminal. The
conductive soul must not be damaged
Not to exceed the authorized maximal temperature, it
is advisable to choose the appropriate cables and
take a particular care in installing them
Follow the instructions contained in the specifications.
Category 2: high level of protection
G: for Gas
D: for Dust
with the surfaces of the housing have no
damage
lid are not damaged
