Rear Panel; Front Panel - Marq Gesture Spot 400 Guide D'utilisation

Features

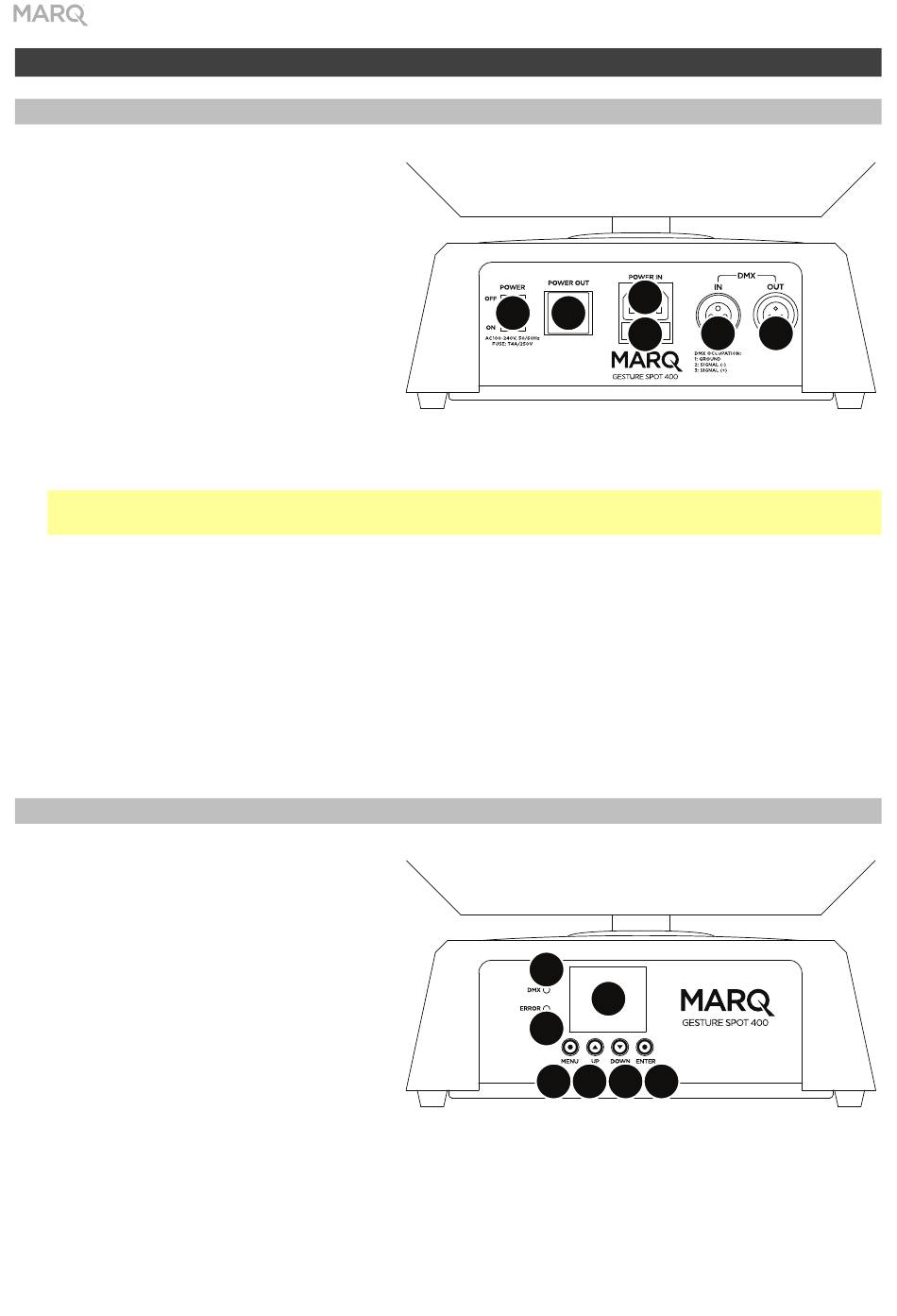

Rear Panel

1. Power In: Use a standard power cable
(included) to connect this input to a
power outlet.
2. Fuse: This compartment holds the fuse.
Before cleaning or replacing the fuse,
disconnect Gesture Spot 400 from its
power source. Use a screwdriver or
other tool to remove the compartment
(do not pull it out by the tab only).
Replace the fuse only with a new fuse
with the same rating (250 V, 4 A).
3. Power Out: Use a standard power cable to connect this output to an additional fixture. This
connection will supply power to the additional fixture when this one is connected a power outlet.
Please see Setup > Linking > Power
Note: On models sold in the USA, this will be a standard "Edison" (NEMA
models, this will be a standard IEC connection.
4. Power Switch: Use this switch to power Gesture Spot 400 on/off.
5. DMX In: Use a standard 3-pin DMX cable to connect this input (A) to your DMX controller or (B)
to another fixture that will pass DMX data through it to this one. Gesture Spot 400 receives DMX
data over this connection. Please see
multiple fixtures.
6. DMX Out: Use a standard 3-pin DMX cable to connect this output to an additional fixture.
Gesture Spot 400 sends its data to an additional fixture over this connection. Please see
Linking > DMX

Front Panel

7. Display: This display shows messages
and values indicating the fixture's
current status.
8. Menu: Press this button to access
Gesture Spot 400's menu.
9. Up: Press this button to select the next-
highest menu option or to increase the
value by 1.
10. Down: Press this button to select the
next-lowest menu option or to decrease
the value by 1.
11. Enter: Press this to confirm your current selection or value.
12. DMX: This light will illuminate when Gesture Spot 400 is receiving DMX data properly through its
DMX In.
13. Error: This light will illuminate when Gesture Spot 400 receives an invalid DMX command.
4
for information about linking multiple fixtures.
4
for information about linking multiple fixtures.
Setup > Linking > DMX
12
13
8 9
1
3
2 5
®
) connection. On other
for information about linking
7
10 11
6
Setup >
