seCtIOn 3 |
note: Both SEC-1250UL and SEC-2425UL have the same layout and dimensions
OUTPUT SIDE
INPUT SIDE
9
10
TOP VIEW
3
2
1
6 | SAMLEX AMERICA INC.
layout
4
5
6
3
11
12
13

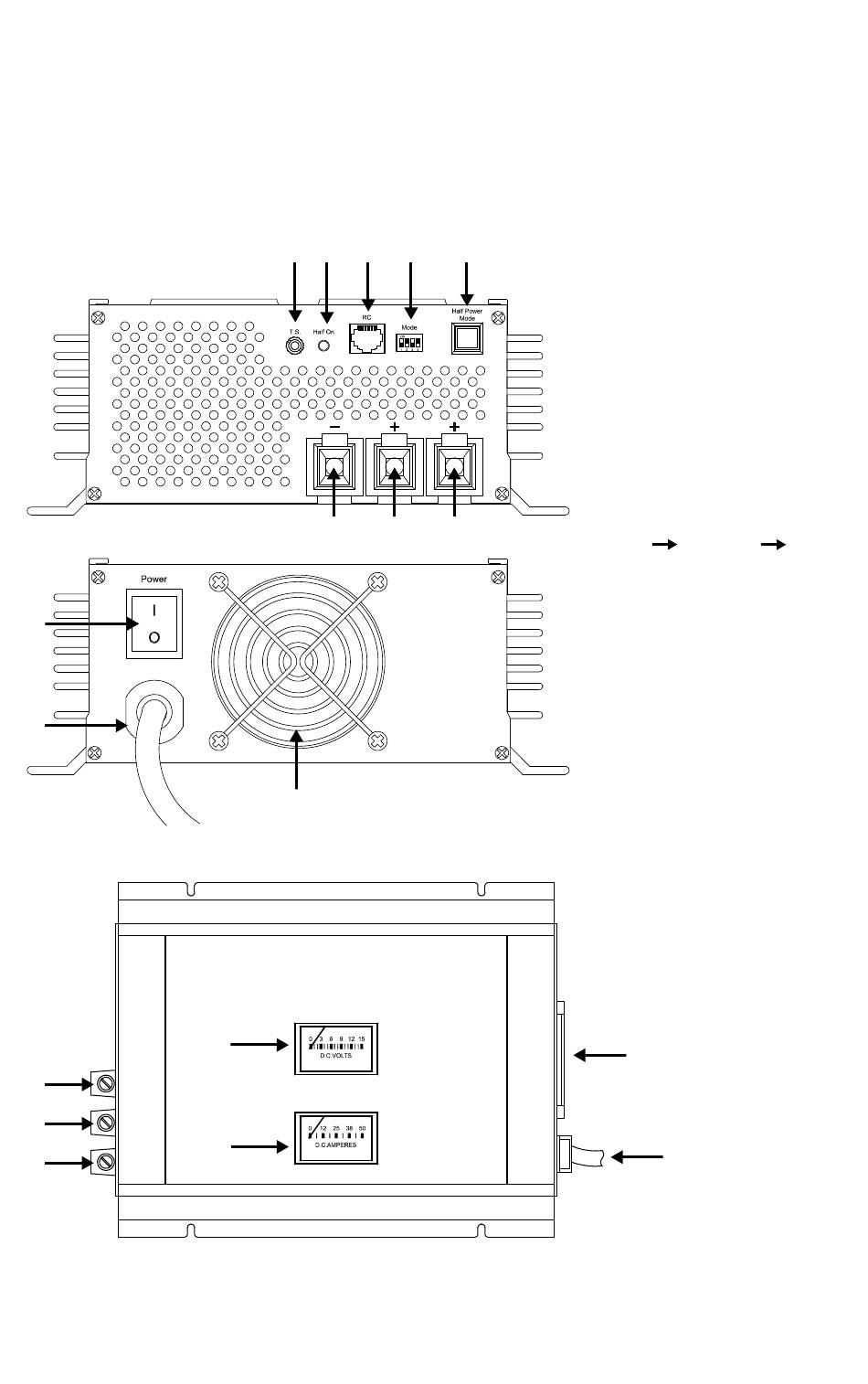

Fig. 3.1 Layout of SEC-1250UL and SEC-2425UL
7
8
2
1
LEGEND
1. Output connector: +, Bank 1
2. Output connector: +, Bank 2
3. Output connector: –, Common
4. Jack for Temperature Sensor
5. Green LED: Indicates "Half Power
Mode" is ON
6. Jack for optional Remote LED
Panel Model No. 900-RC
7. DIP switches for mode selection
8. Push Switch for Half Power Mode:
Pressed
ON; Released
9. Power ON/OFF switch
10. AC power cord inlet
11. Grille protected opening for
cooling fan
12. Voltmeter
13. Ammeter
11
10
OFF
