Radio Remote Control: El-Skyport Setup - Elinchrom Ranger Quadra RX AS Manuel D'utilisation

Radio Remote Control / EL-Skyport Basic Functions
Requires the optional EL-Skyport Transmitter 19351
EL-Skyport Basic Functions
Press 2x Scroll to select function

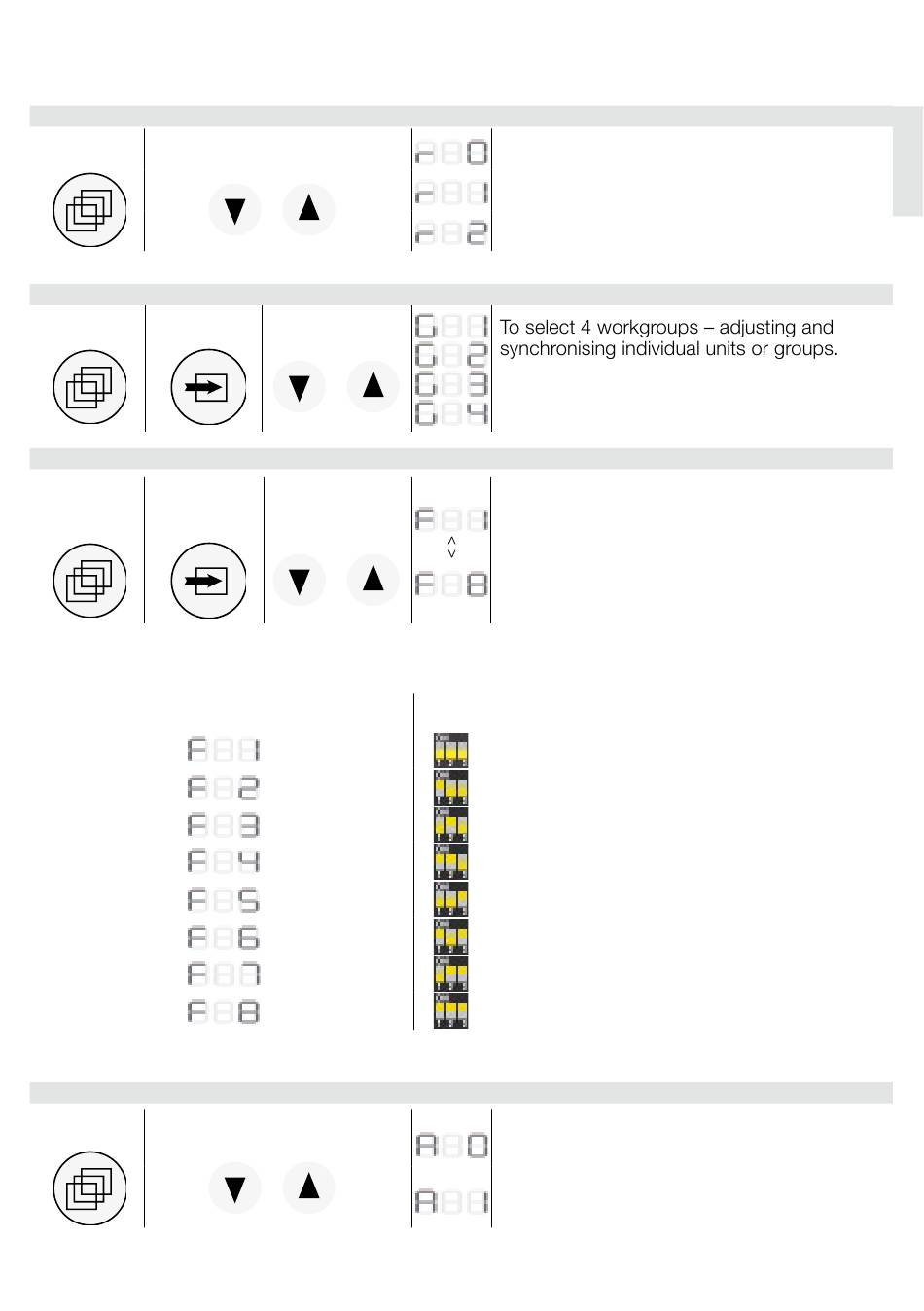

Group Setting
Press 2x Press 1x
Frequency Channel Setup
Press 2x Press 2x
Frequency channel setup between Ranger Quadra und EL-Skyport Transmitter
Note: Frequency channel settings must be the same between Transmitter and Transceiver.
Frequency channel Ranger Quadra
Charge Ready Beep – Basic Function
Press 3x Scroll to select function
Scroll to select
workgroup
Scroll to select
frequency
channel
EL-Skyport Transmitter Setup
EL-Skyport Transceiver OFF
EL-Skyport Transceiver ON
EL-Skyport Speed Sync Mode
The optional EL-Skyport Transmitters is
required to remote and trigger Ranger Quadra
Standard value =1 (Group 1)
Select between 8 Frequency channels – for
separate working groups or in case of
interference with other wireless systems
The optional EL-Skyport Transmitters is
required to remote and trigger Ranger Quadra
Standard value =1 (Frequency Channel 1)
Charge Ready Beep OFF
Charge Ready Beep ON
