FIG. 2
2. Insert two AAA (LR03) size batteries into the compartment,
placing the batteries according to + and – icons on the inside
of the compartment.
NOTE: When the battery icon flashes in the LCD display, replace
battery with 2 fresh AAA (LR03) batteries.

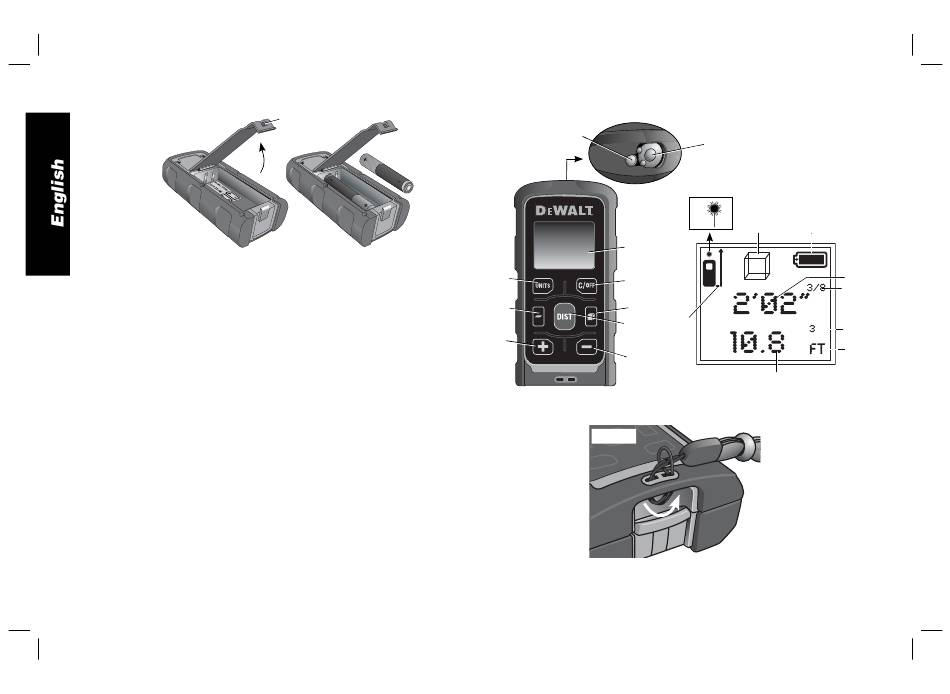

COMPONENTS (Fig. 2, 3)
A. Battery compartment cover
B. Laser emitter
C. Receiver lens
D. LCD display
E. DIST (ON) button
F. C/OFF button
Laser Display
L. Laser indicator
M. Measuring plane indicator
N. Area/Volume indicator
O. Battery indicator
P. Additional reading line (upper)
Q. Units with fraction/exponents
A
G. UNITS button
H. Area button
I. Volume button
J. Subtract button
K. Addition button
R. Units indicator
S. Main reading line (lower)
FIG. 3
B
D
G
F
I
H
E
K
J
Attachment of Wrist Strap (Fig. 4)
FIG. 4
4
C
L
N O
P
Q
M Q
R
S
