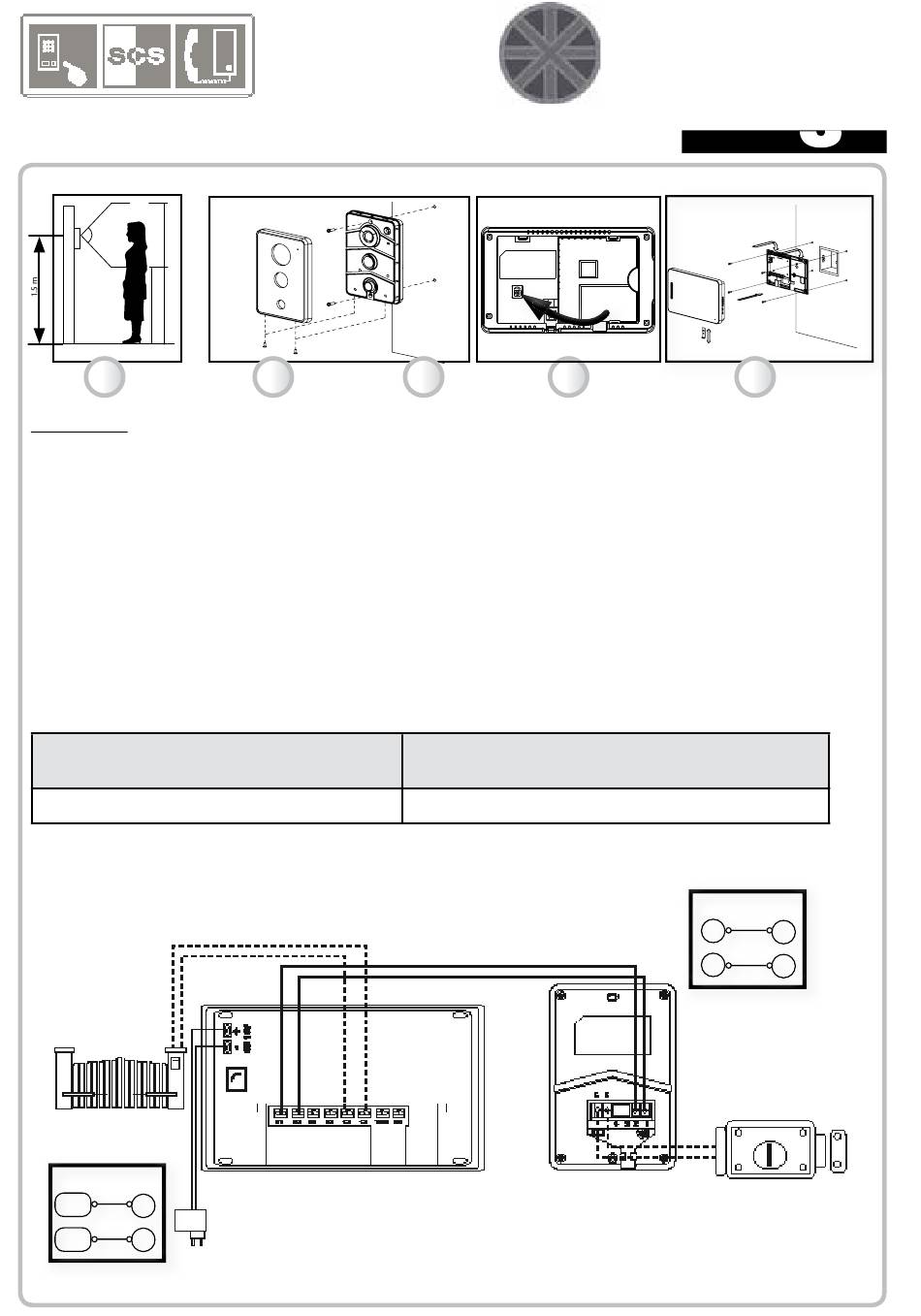

ATTACHING AND CONNECTING THE ELEMENTS
1
Attaching
1) Attach the exterior camera at a height of 1.5 metres mounted on a flat wall.
2) First fit the rear support. Finish by tightening the screw at the bottom of the panel.
3) Connect the camera wire (as shown in the diagram below) and insert the camera
onto its support. Do not set up the camera where it is in direct contact with the rain or
sun. After installing and testing, place a clear silicon seal on the top and sides of the
exterior camera (not on the bottom) to avoid any risk of infiltration.
4) IMPORTANT : realize the setting of the melodie volume before install the monitor.
5) Attach the rear support of the monitor (at a height of 1.5 metres on a flat wall).
Connect the wires and insert the monitor onto its support.
WIRE SECTION :
Monitor-camera link
From 0 to 50 metres: use the 0.75 m² cable
CABLING DIAGRAM :
Transformer MONITOR
red
+
black
-
2
E8 monitor
18 Volt
adaptor
3 4
Camera - Lock / opener link
Monitor - automated system
From 0 to 10 metres: use RVV2 *1mm² cable.
M7 camera
ENGLISH
5
MONITOR Camera
1 2
2 1
Electric lock or opener
(optional)
12V / 700 mA
3
