Assembling the Exercise Bike

Attaching the Seat Back and Bottle Holder

While the equipment is in use, the seat back flexes to support
users of different shapes and sizes. Underneath the seat back,
the bottle holder accommodates both left-handed and
right-handed users.
Note: We recommend having a second person assist you
when you perform the following procedure.
To attach the seat back:
1.
2. Insert the lower front edge of the seat back assembly
While your assistant holds the seat back assembly, feed
the heart rate sensor cable through it. Pass the cable into
the seat back support through the opening at its base,
then out through the opening in the handlebar bracket as
shown in the following figure.
Important: Do not allow the cable to be pinched, crimped, or
creased.

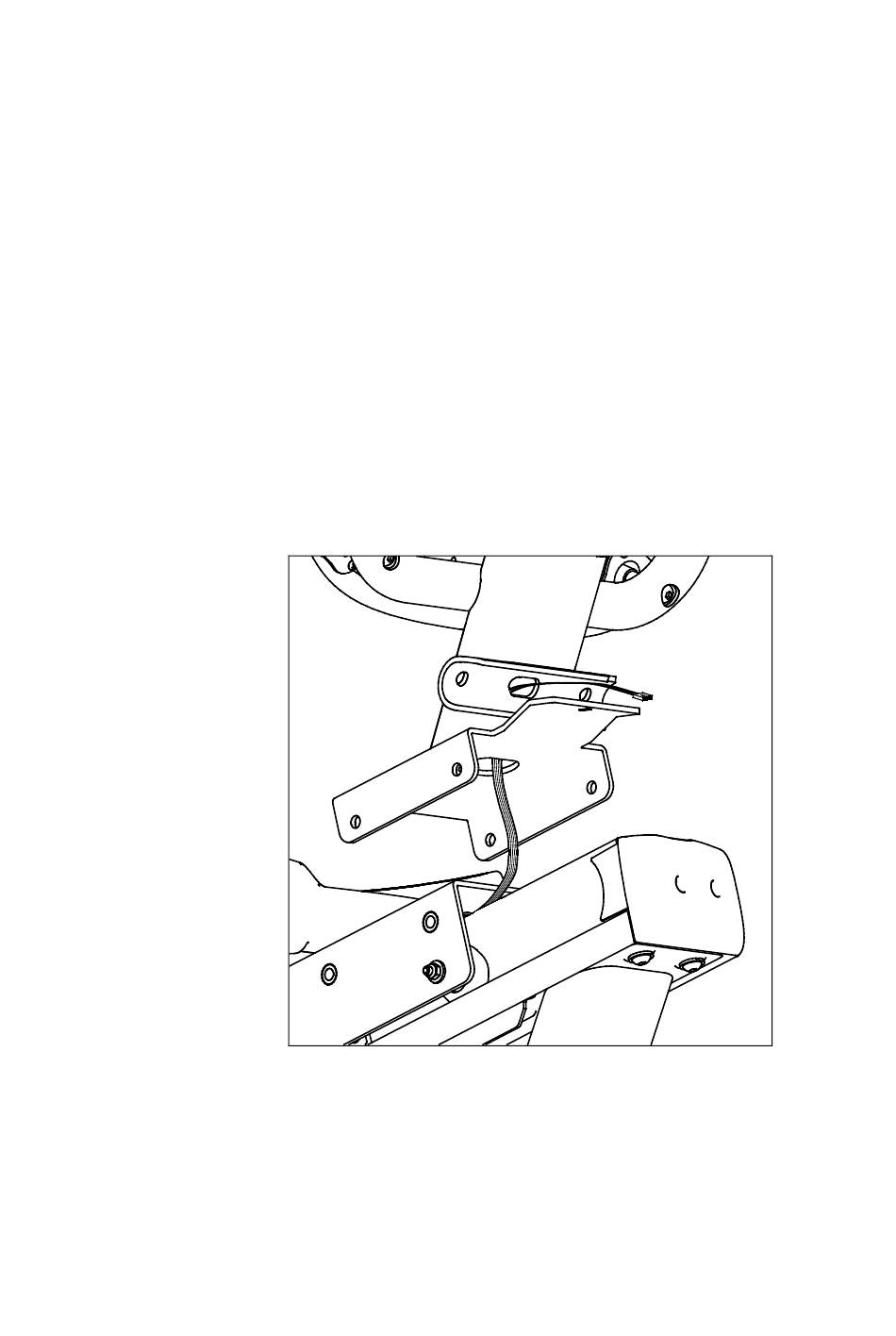

Figure 6: Heart rate sensor cable routing
under the seat base.
