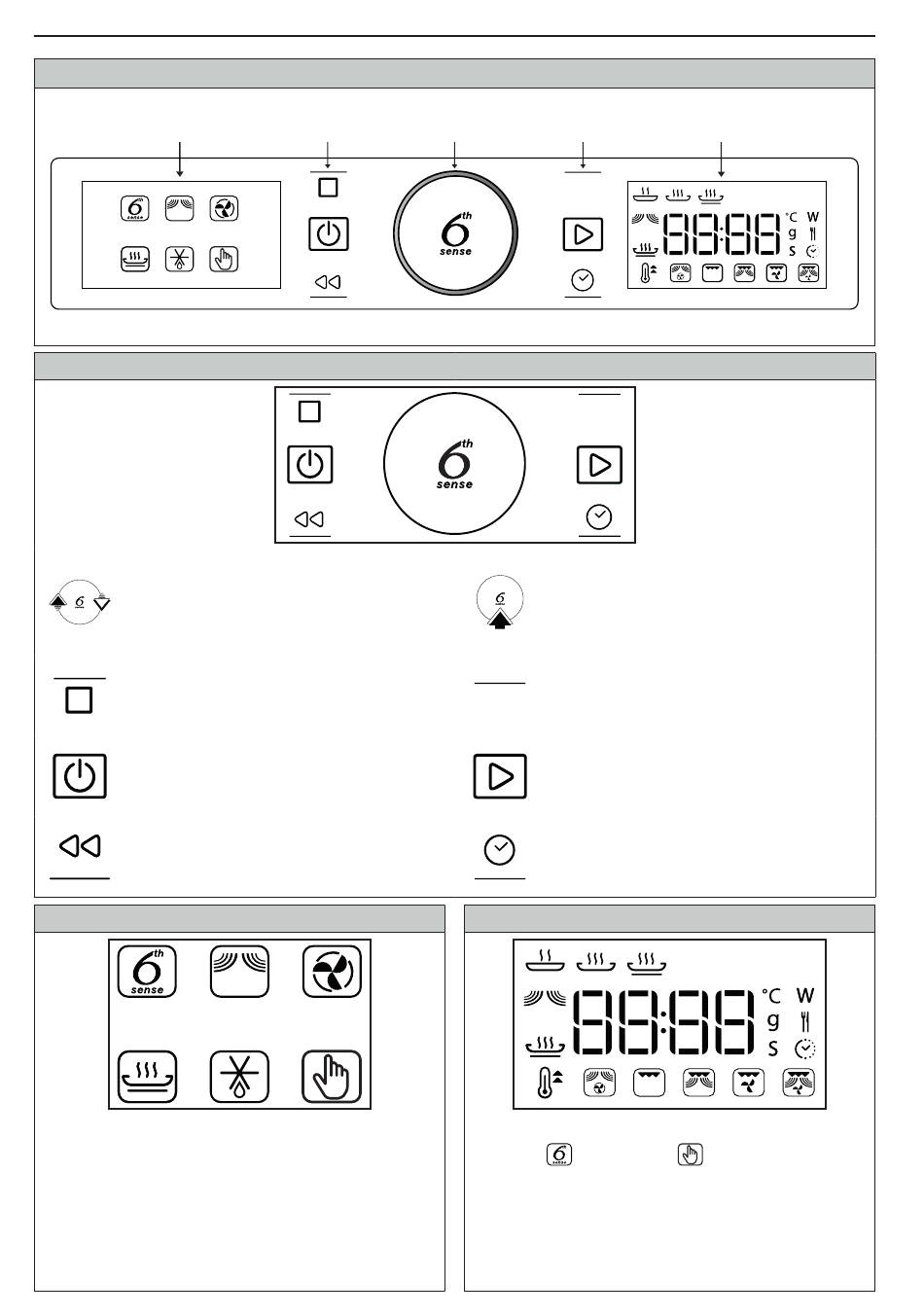

LEFT-HAND DISPLAY
ROTARY SWITCH KNOB
Turn this to navigate through the
functions and adjust all of the cooking
parameters.
PAUSE – To pause a cooking cycle.
ON/OFF – To switch the appliance ON or
OFF at any time.
BACK – To return to the previous display
screen.
LEFT-HAND DISPLAY
This display shows the main cooking functions.
The selectable functions are displayed more
brightly.
The symbols indicate the function. For a full
description, see the table on page 13.

CONTROL PANEL DESCRIPTION

TOUCH KEYS KNOB
KNOB AND TOUCH KEYS
TOUCH KEYS
°C / W
°C / W
6 SENSE BUTTON KNOB
TH
Press to select, set, access or confirm
functions or parameters and eventually
start the cooking program.
POWER – To adjust the temperature, grill
°C / W
level or microwave power.
START – To run the cooking functions.
TIME – To set the clock and adjust the
duration of a cooking cycle.
RIGHT-HAND DISPLAY
This display shows the clock, the clusters for the
6 Sense and Manual
th
and the details of all functions, and it helps to
adjust all cooking parameters.
USING THE APPLIANCE
RIGHT-HAND DISPLAY
cooking functions
