Removal And Installation Chart; Lower Unit Removal - Selva Dolphin 9.9 Manuel D'entretien

LOWR
LOWER UNIT

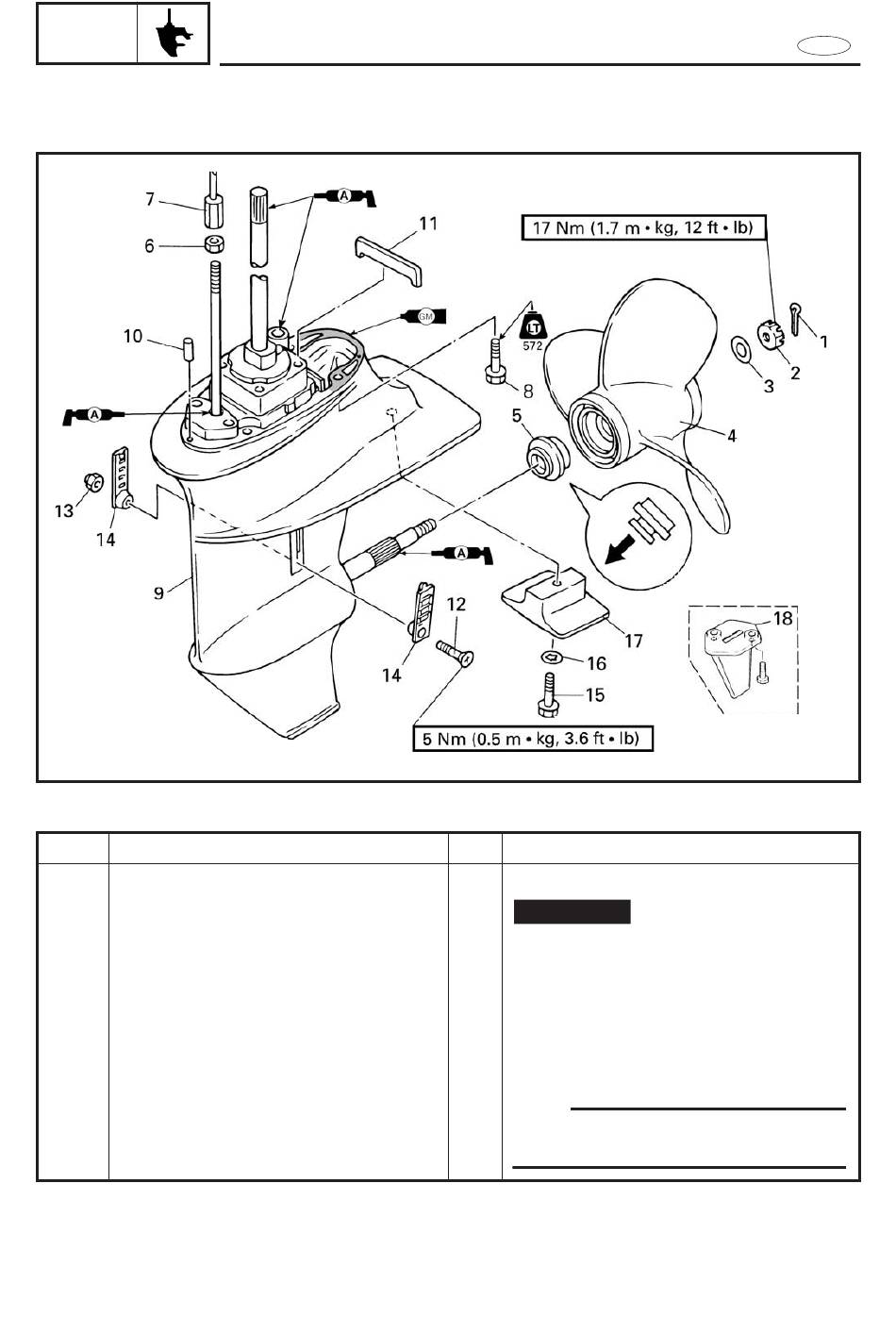

EXPLODED DIAGRAM

REMOVAL AND INSTALLATION CHART

Step Procedure/Part name

LOWER UNIT REMOVAL

1 Cotter pin
2 Propeller nut
3 Spacer
4 Propeller
5 Collar
6 Locknut
7 Adjusting nut
8 Bolt
9 Lower unit
10
Dowel pin
11 Rubber seal
LOWER UNIT
Q'ty
Follow the left "Step" for removal.
1
Not reusable
1
1
1
1
1
1
4
1 NOTE:
2 During installation, properly align the
drive shaft splines with the power unit.
1
6-1
Service points
