Exploded Diagram (Dolphin 9.9); Removal And Installation Chart; Service Points; Carburetor - Selva Dolphin 9.9 Manuel D'entretien

FUEL

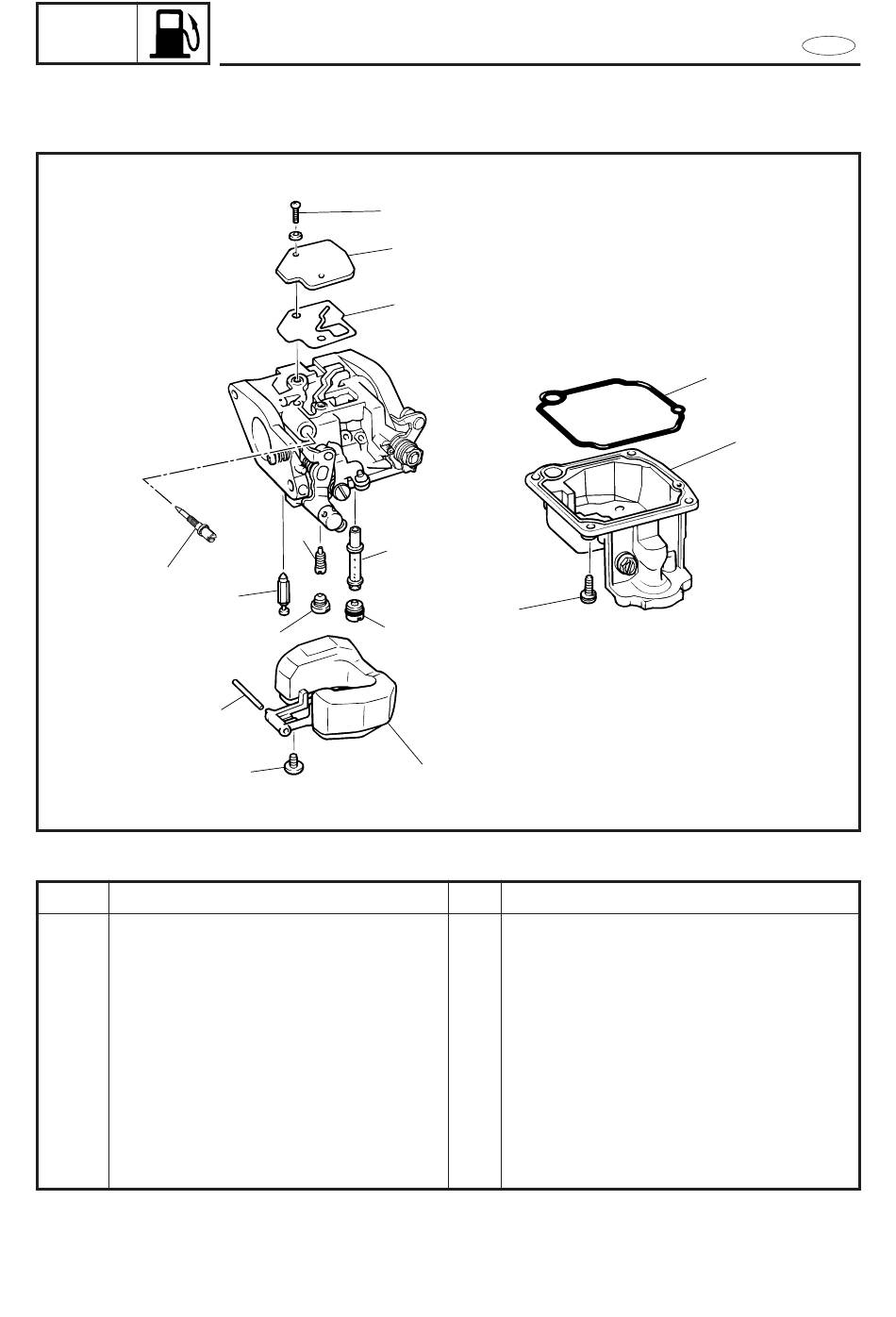

EXPLODED DIAGRAM (Dolphin 9.9)

t
9

REMOVAL AND INSTALLATION CHART

Step Procedure/Part name
CARBURETOR DISASSEMBLY

Carburetor

1
Screw
2
Carburetor top cover
3
Gasket
4
Screw
5
Float chamber
6
Rubber gasket
7
Screw
8
Float
CARBURETOR
1
r
w
0
q
e
7
2
3
4
8
Q'ty
Follow the left "Step" for disassembly.
Refer to the "INTAKE SYSTEM".
2
1
1
4
1
1
1
1
4-8
6
5
