Test Input

When using this function the test wire of the sensor has to be connected to the door operators test output. Active low test
operations means that during normal operation the test wire has to be connected to the sensors power supply (+U
this voltage to 0 V/ Gnd causes the sensor to switch into self-test mode.

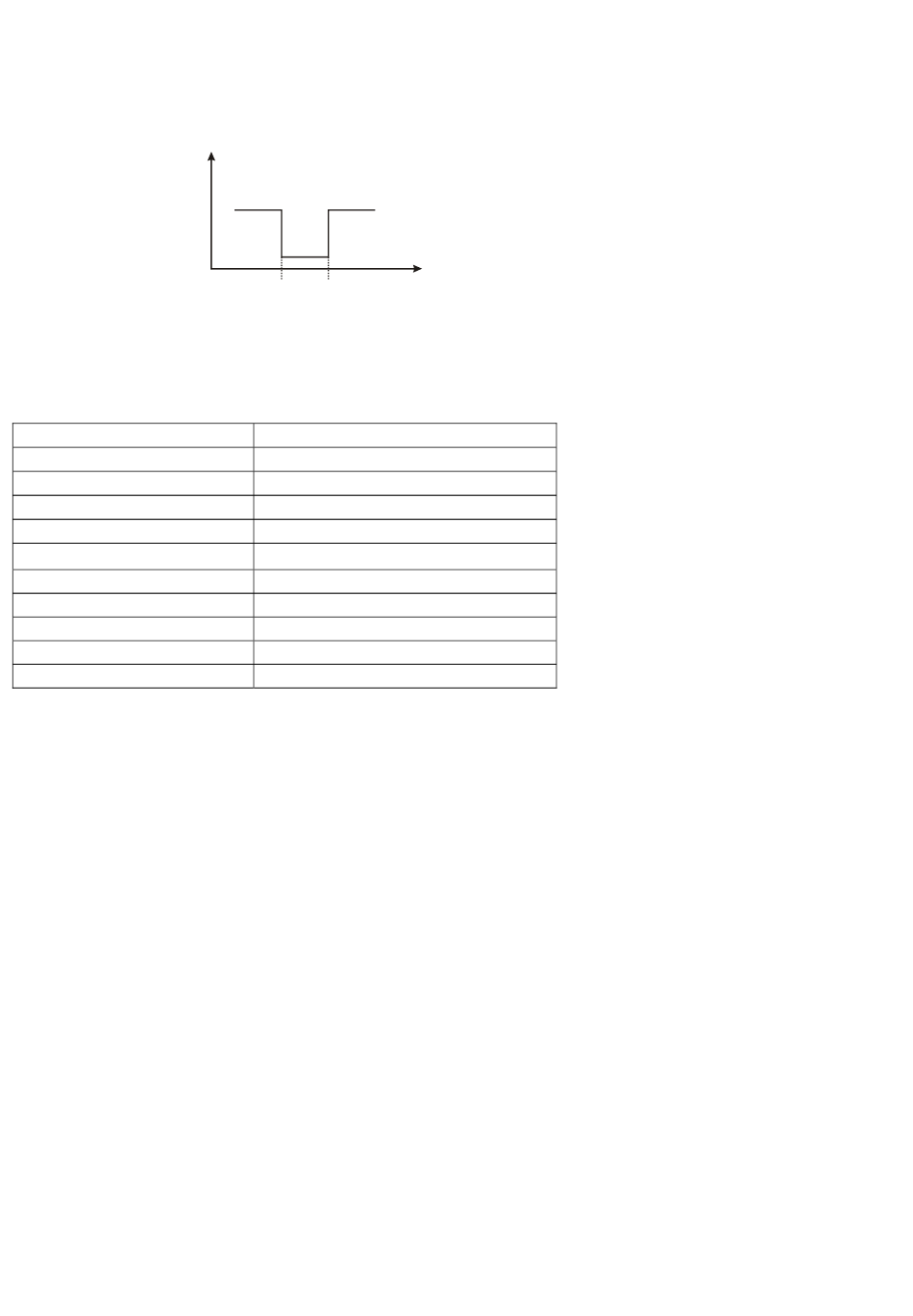

Test Mode: Active Low

Technical Data

Range
Environmental Protection
Temperature Range
Photocell size
Reflector size
Power Consumption
Response time
Wake Up Delay
Connection
Relay Switching Voltage
Relay Switching Current

Important safety instructions

Disconnect the power supply whenever you proceed to the installation or repair of the control panel. In accordance with the
European low voltage directive, you are informed of the following requirements:
· For permanently connected equipment, an easily accessible connection device must be incorporated into the cabling.
· This system must only be installed by a qualified person that has experience with automatic doors/gates and knowledge of the
relevant EU standards.
· The instructions for use of this equipment must always remain in the possession of the user.
· Terminals with a maximum section of 3.8mm
Follow all the recommendations given in this manual to avoid serious dangerous to persons.

Use of the equipment

Designed for installations in garage doors as mentioned on the introduction. Not guaranteed for other uses.
The manufacturer reserves the right to modify equipment specifications without prior notice.

EC Declaration of conformity

See web
www.jcm‐tech.com/en/declarations/
JCM TECHNOLOGIES, S.A. declares herewith that the product RAY-RT complies with the requirements of the 1999/5/ CEE
R&TTE Directive, and complies with the fundamental requirements of the 2006/42/CE Machine Directive, 2004/108/EC Directive
on electromagnetic compatibility and 2006/95/EC on low voltage, insofar as the product is used correctly.
1226052_Rev1.0 RAY-RT 4704 SR
U
Ub
0V
Test
Mode
1.6 – 7 m
IP65, NEMA 4X
-30 – 60°C
25x87x28mm
25x87x15mm
40 mA max.
30 ms
500 ms
2m cable, fine stranded, wire size 0.25 mm
30 V AC/DC max.
0.3 A max.
2 must be used to connect the cables.
In case of not using this auto-test function, it is
necessary to shortcircuit the grey and the brown
t
cables (power supply +).
2
), a change of
b
