OHIO SEMITRONICS DMT-1000 Mode D'emploi page 7

Computer with built in RS-485 interface
or external RS-232/RS-485 converter.

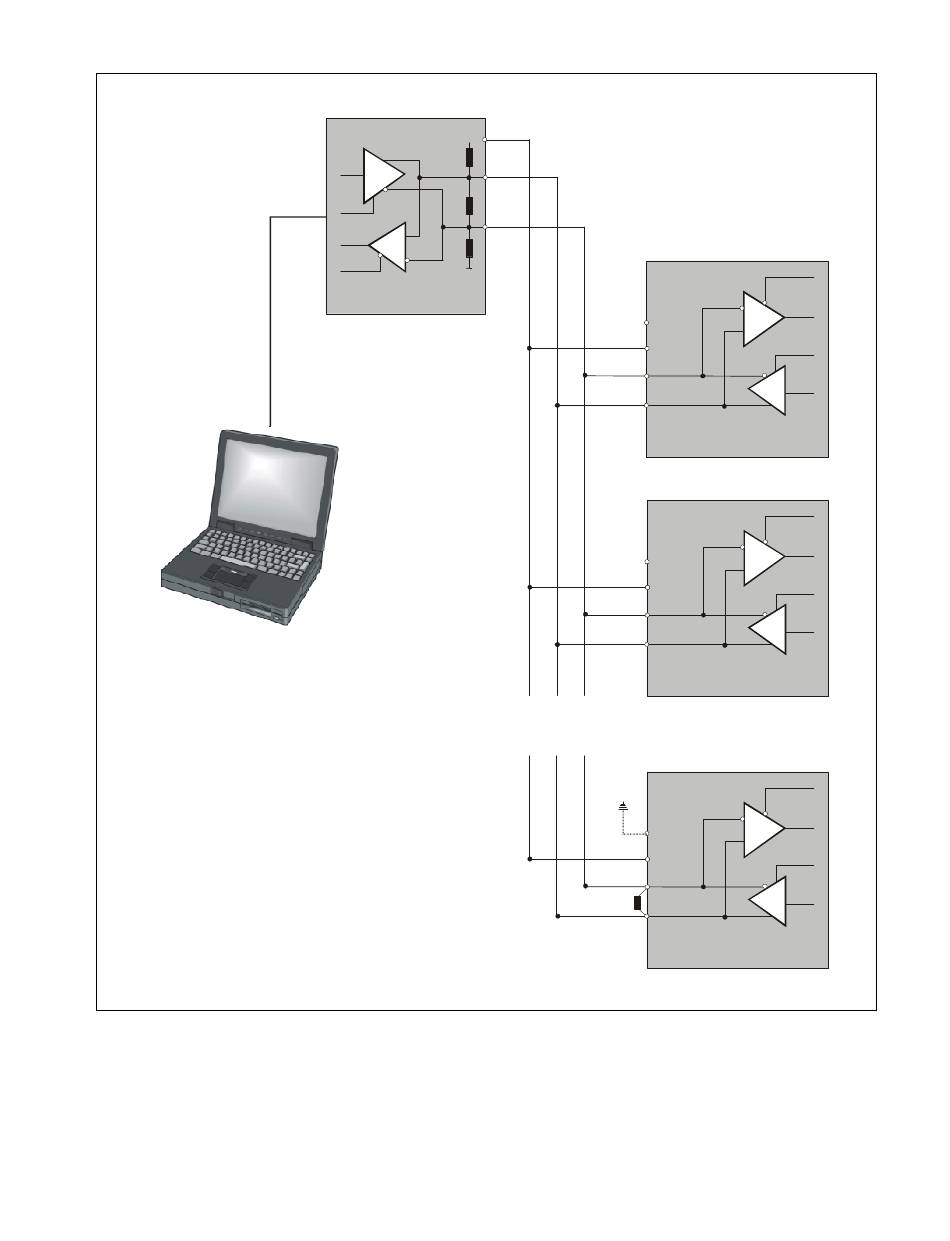

Fig. 8
Fig. 8 shows the connection of transducers DMT-1000 to the
MODBUS. The RS 485 interface can be realized by means
of PC built-in interface cards or interface converters.
Ohio Semitronics, Inc.
7004-00090-A Rev 2/00
+5V
GND
Tx-/Rx-
Slave 1
Tx+/Rx+
GND
Tx-/Rx-
Slave 2
Tx+/Rx+
GND
Slave n
Tx-/Rx-
Tx+/Rx+
Important:
– Each device connected to the bus must have a unique
address
– All devices must be adjusted to the same baudrate.
Page 7 of 24
26
25
24
23
DMT
26
25
24
23
DMT
26
25
24
23
DMT
7
