ENGLISH

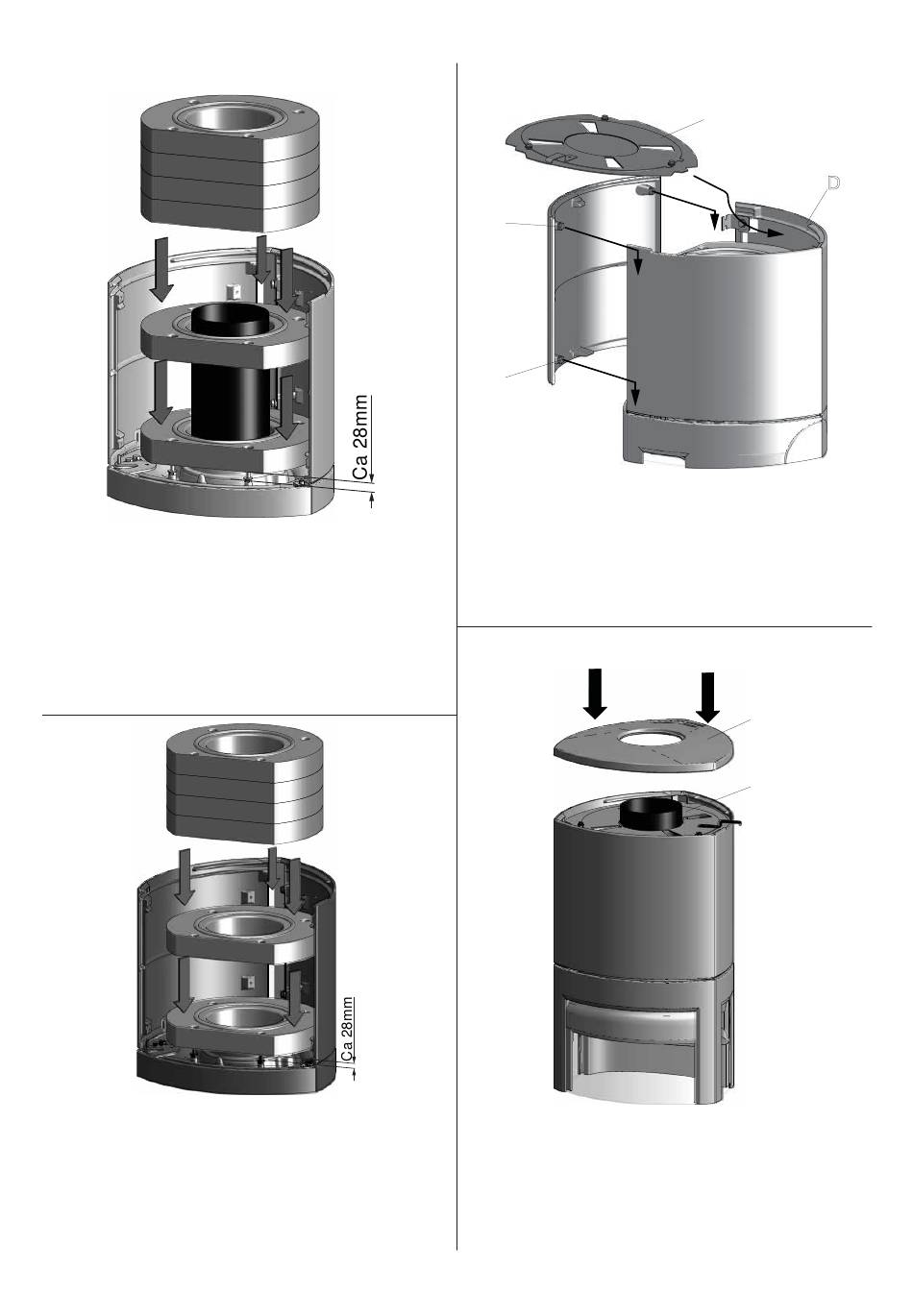

Fig. 5A
Heat storage system (cat.no. 10026701)
With top outlet (Fig. 5A):
1. Mount the flue pipe with the gasket (see Fig.3).
2. Start with the element that has premounted legs.
3. Adjust the legs until the element is stable.
4. Place the remaining elements.
Fig. 5B
Heat storage system (cat.no. 10026701)
With rear outlet (Fig. 5B):
1. Start with the element that has premounted legs.
2. Adjust the legs until the element is stable.
3. Place the remaining elements.
20
Fig. 5
B
A
1. Replace the sector valve (C) by placing it towards the rear
end of the side panels. The valve should rest on the flanges
inside the side panels (D).
2. Mount the front panel (A) and tighten the screws (B).
Fig.5
With top outlet (Fig. 8):
1. Replace the top plate (A) and top grid (B).
C
D
A
B
