Operating Instruction
Do not make any measurement when
there is abnormal condition, such as
EN
broken case or exposed metal parts are
present on the instrument, test probes,
and cables.
Do not modify the equipment.
Extreme caution when operating with a
live circuit.
LED only function properly when tempe-
rature is between 0 ~ 50°C.
Before using a voltage detector with audi-
ble indicator at locations with a high back-
ground noise level, it has to be determined
whether the audible signal is perceptible.
www.herthundbuss.com
95980793

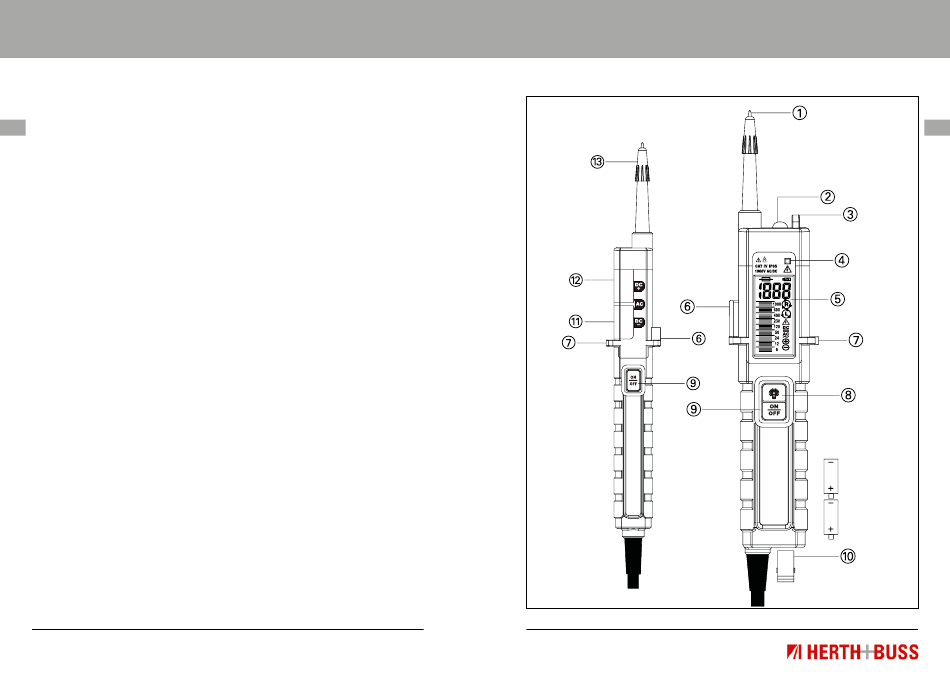

3. Instrument Layout

1. Main probe (+)
2. Illumination light
3. Non-contact voltage sensor
4. Non-contact voltage indicator
5. LCD display
6. probe clip
7. probe barrier
8. Light / Non-contact
sensing switch
10. Battery case
11. DC negative (-) indicator
12. DC positive (+) indicator
13. 2n d probe (-)
Operating Instruction
14 15
95980793
