HERMETIC INSTALLATION

Extra is a completely sealed product with respect to the installation environment, which makes it ideal for passive houses, as it does not take
air from inside the homes.

COMBUSTION AIR

To respect the air-tight seal of the stove, the combustion air connection pipe must be directly connected to the outside using speci c sealed
ttings and pipes.

FUMES EXHAUST SYSTEM

• If the generator has a fume temperature below 160°C+ (ambient temperature due to high e ciency, see technical data), the fumes
exhaust system must be resistant to humidity.
• Should there be a possibility of the fumes condensating, provide an inspection "T" outside the stove.

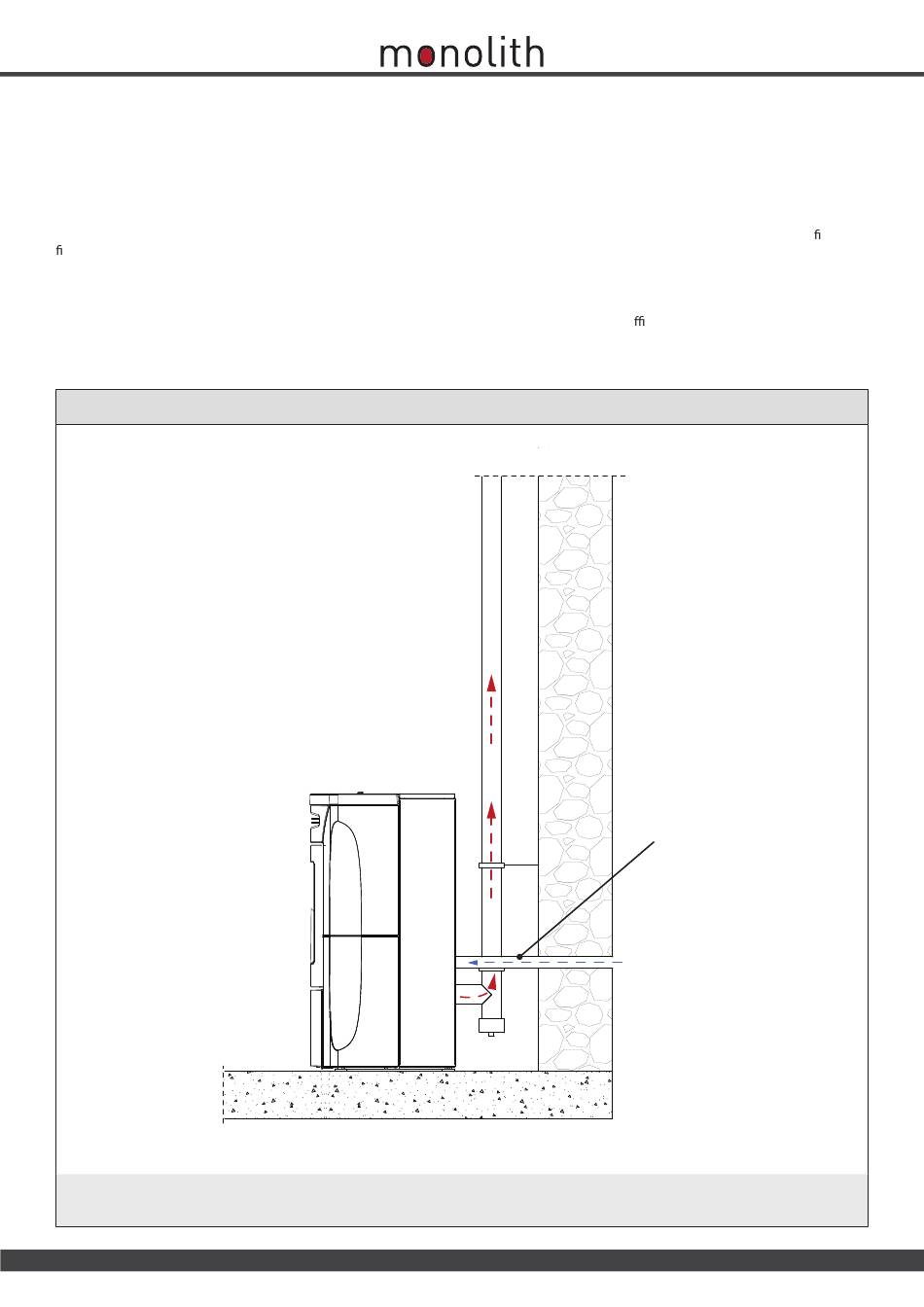

INSTALLATION EXAMPLE
One must also bear in mind all laws and national, regional, provincial and town council regulations in force in the country in which the appliance has been
installed, as well as the instructions contained in this manual.
60 ENGLISH
Max. 1.5 m - max.
2 elbows
