Connectors :

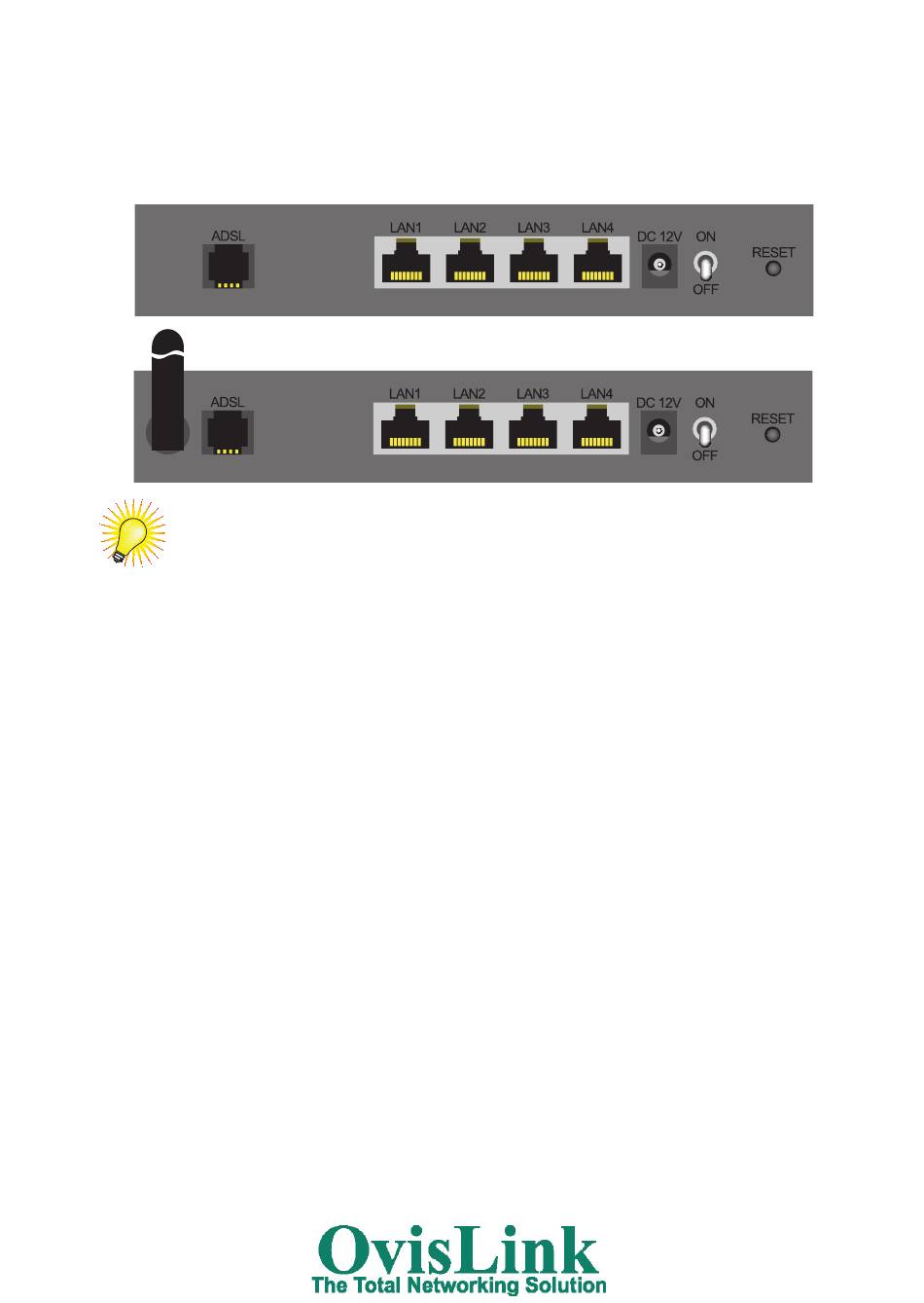

The connectors are on the back panel :
Please, note that the Evo-WR54ADSL-2 has a fixed antenna for
wireless network.
- ADSL : RJ-11 port allowing you to connect the ADSL filter with the RJ-11
cable. The light WAN will then be lightened.
- LAN 1-4 : RJ-45 port allowing to connect between Ethernet network items
(computers, switches, printers, ...) and the modem/router, thanks to a RJ-45
Cat. 5 cable.
- DC 12V : connector for power plug 12V .
- ON/OFF : to start or stop your modem/router.
- RESET : sets back the original setup of the modem/router.
Putting the modem/router in place :
1) place it somewhere aired and dry. Do not put anything on it and check that
the cables are well ordained
2) connect the modem/router to the ADSL filter with the telephone cable
3) connect the modem/router to the computer with the Ethernet cable
10
Evo-RADSL-2
Evo-WR54ADSL-2
