MODEM/ROUTER ADSL2+
USER MANUAL
Thank you for trusting OvisLink France. Your satisfaction is our goal and we
assure you our quality products will meet your expectations.
Items in this package :
Before installing this modem router, check that elements listed here are present:
- 1 Modem/Router Evo-RADSL-2 or Evo-WR54ADSL-2
- A power supply
- A RJ-11 phone cable to link your modem/router to the ADSL filter
- ADSL filter to link the RJ-11 cable to the phone plug
- Ethernet Cat. 5 RJ-45 crossed cable to link the modem/router to your computer
- Installation guide
If one of these items is missing, get in touch with your supplier.

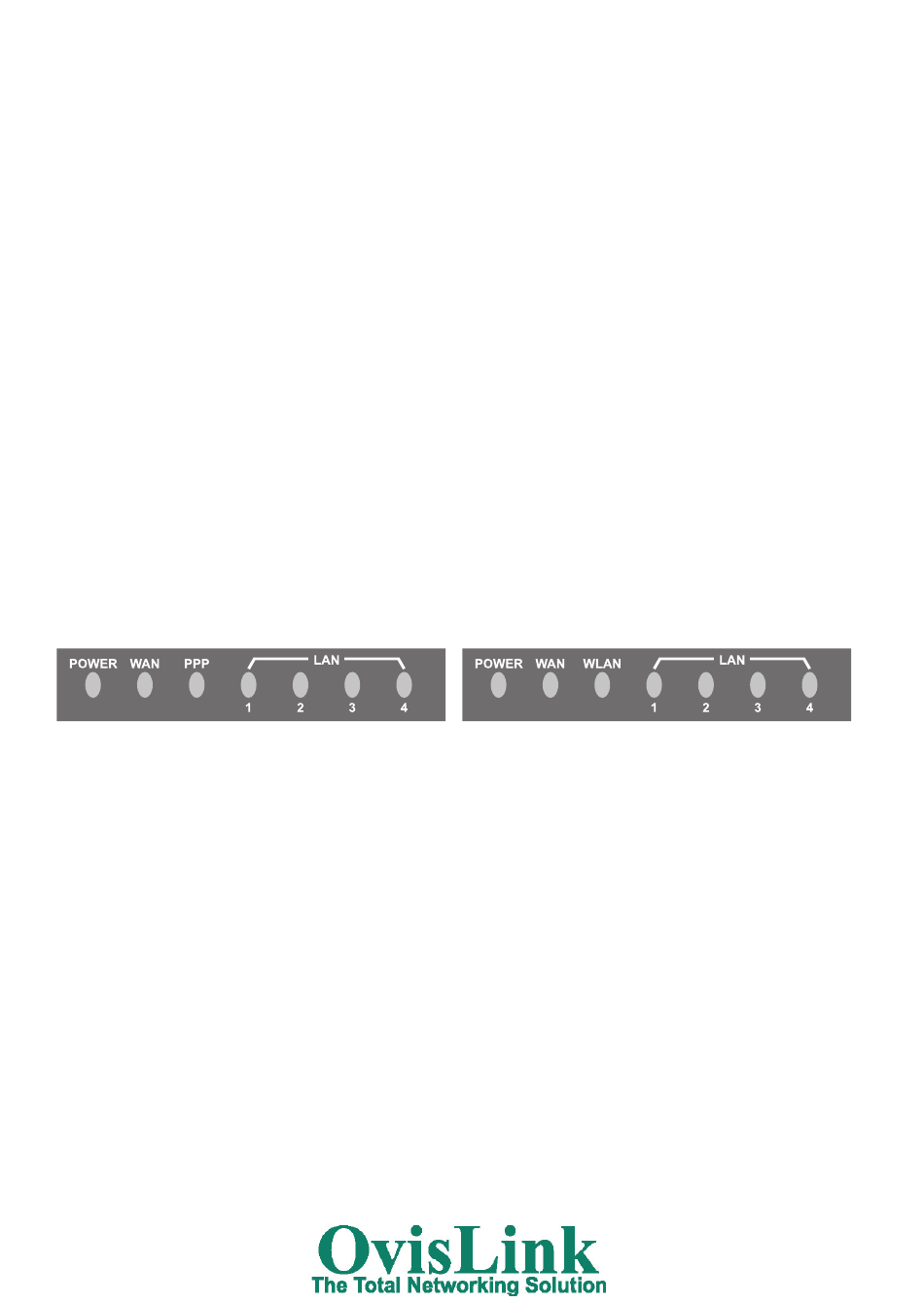

LED panel:
The lights tell you about the functioning state of each port :
Evo-RADSL-2
- PWR : light in green when the modem/router is working.
- WAN : blinking while searching for ADSL dialtone and static when it found it
and the modem/router is synchronized.
- WLAN (Evo-WR54ADSL-2) : light in green when the wireless network is
initialized and blinking for file transfer.
- PPP (Evo-RADSL2) : light in green when the internet connection is on and
blinking for file transfer.
- LAN1-4 : light when the modem/router is correctly connected to a computer
or a hub/switch. Blinking when file transfer on the network.
Evo-WR54ADSL-2
