Preparing to install the HSI150 - SEGMENTO:
• Do not open the closing cover of the cable entry until just before installing the cable.
• Any cable entries that are not required may be used as pressure-tight back-up entries if
there is an undamaged Hauff quality seal on the closing cover.
• Do not knock the closing cover in with a hammer or sharp object.
• Open cable entries, which are to be used as back-up entries, or closing covers which have
been opened accidentally, should be fitted with new HSI150-D closing covers.
• Do not reuse uninstalled or damaged closing covers.

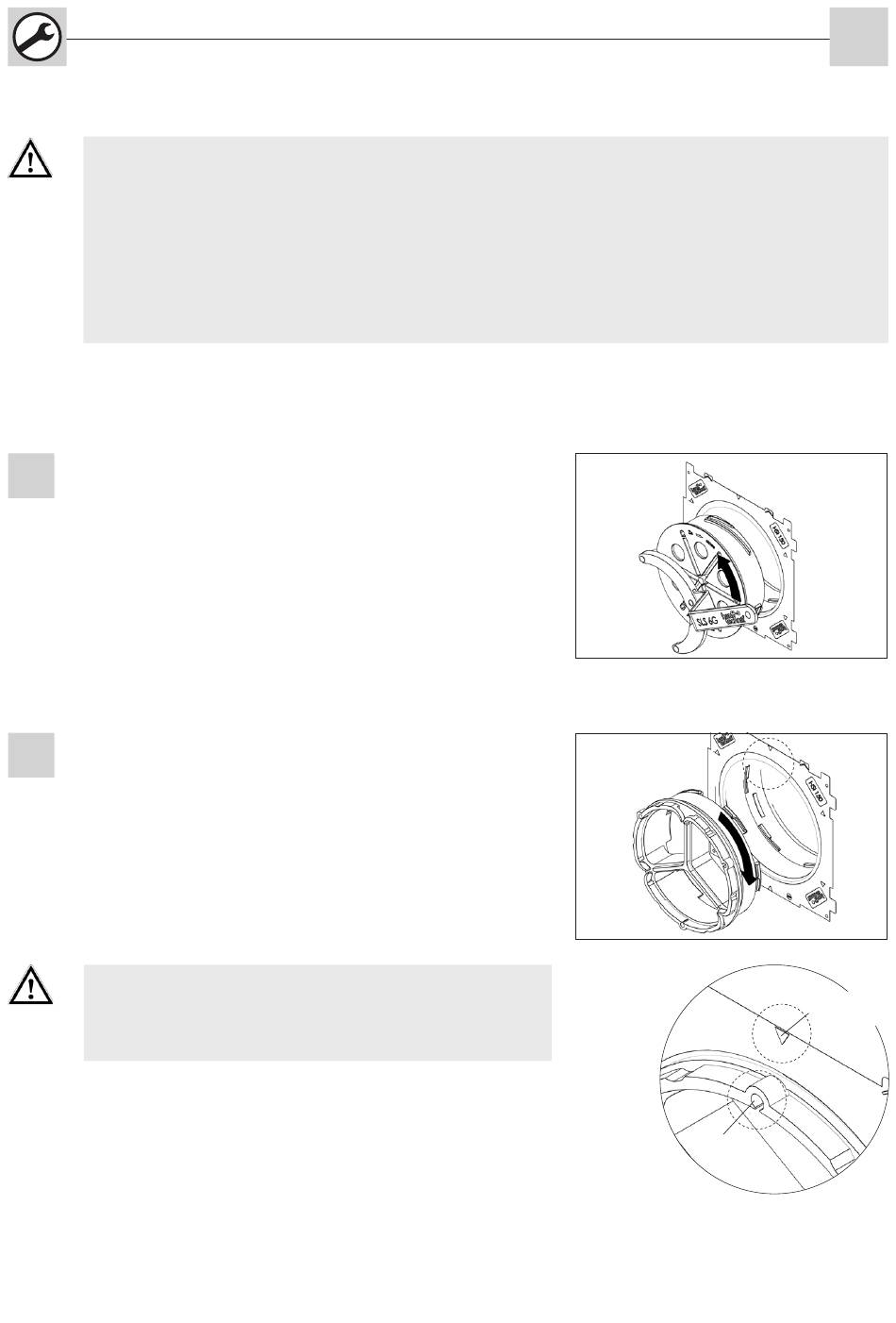

6 Installation
Remove protective foil from the cable entry present
1
(after warming slightly).
If necessary, clean out concrete residue from the wrench
threads on the black closing cover.
Use the SLS 6G(D) flexible socket wrench (accessory) to
open the closing cover via the wrench threads by twisting
to the left.
You can then install the system cover.
Apply a coat of GMS lubricant (included in scope of
2
delivery) to the sealing lip of the HSI 150-S3 system
cover. Twist slightly to insert it into the bayonet of the
wall insert and firmly screw it in clockwise as far as it will
go (use the flexible socket wrench if necessary).
The drill holes in the wrench thread of the system
cover must correspond to the arrows in the cable entry
(see detail).
Detail
12
GB
Cable entry
arrow
Drill hole
