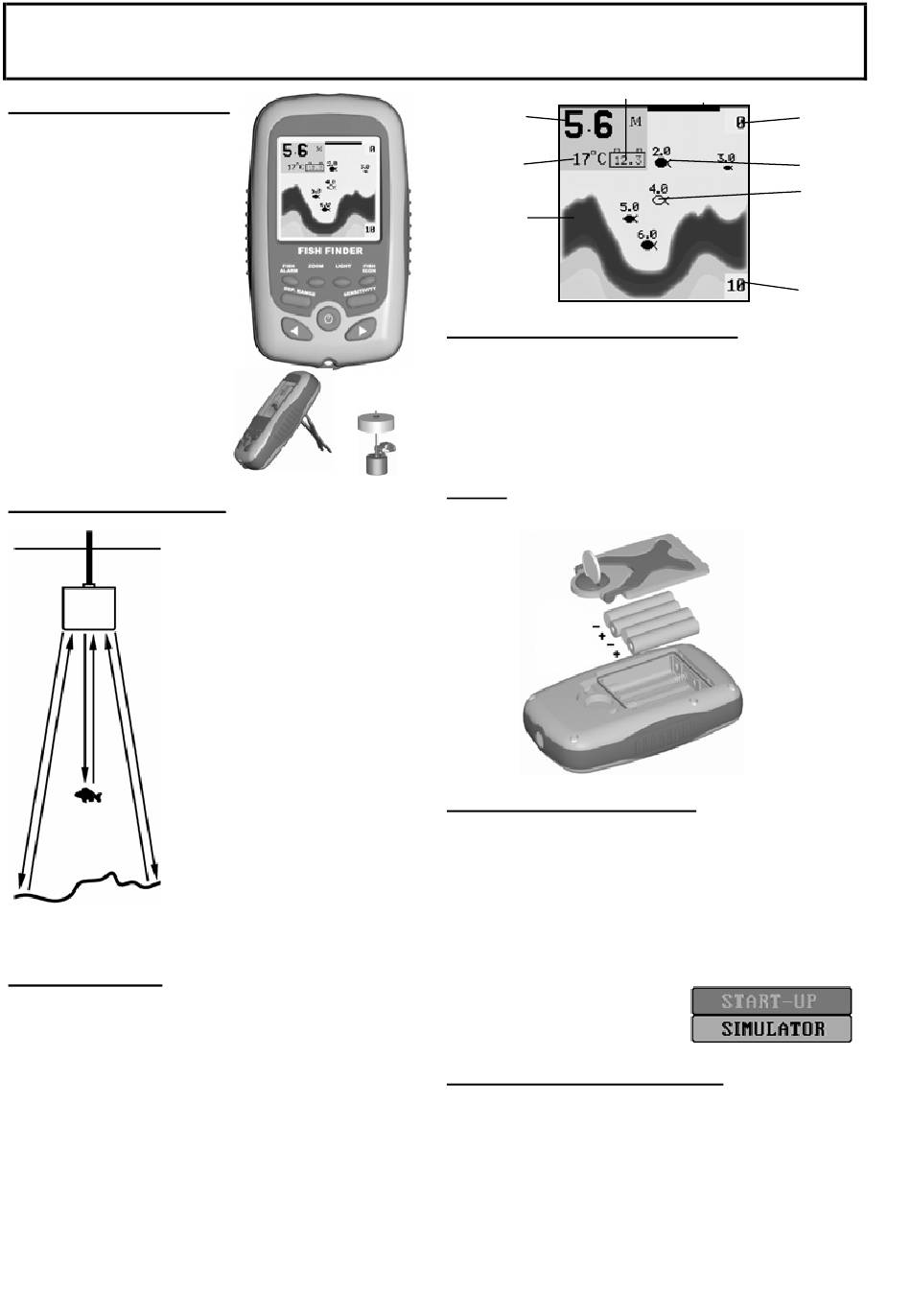

1 PRODUCT OVERVIEW

Plastimo is proud to
present the ECHOFISH
400. With its innovative
technology, the
ECHOFISH 400 is perfect
for people fishing from a
small boat or from the
beach. Capable of being
used in sea, rivers or
lakes the ECHOFISH 400
lets you locate fish, find
depths and see bottom
contours of your chosen
location.
2 HOW SONAR WORKS
The ECHOFISH 400 sonar
technology is based on sound
waves. The system uses sonar
to locate and define structure,
bottom contours and
composition,as well as
displaying depth below the
transducer. The transducer
sends a sound wave signal
and distance by measuring the
time between the transmission
of the sound wave and when
the sound wave is reflected off
an object; it then uses the
reflected signal to interpret
location, size, and composition
of an object.
3 DISPLAY VIEW
1 Water Surface Line
2 Battery Strength Indicator
3 Upper Zoom Range
4 Water Depth
5 Water Temperature
6 Bottom Contour
7 Lower Zoom Range
8 Fish Icon with Depth(200KHz)
9 Fish Icon with Depth(83KHz)
ECHOFISH 400 OPERATION GUIDE
4
5
6

4 INSTALLING THE BATTERIES

When you first use the ECHOFISH 400 you will need
to install the batteries.
Use a coin to remove the battery door of the
ECHOFISH 400 and insert 4x "AAA" batteries into
the battery compartment.
NOTE: Be certain to align the batteries as per the
diagram within the battery compartment.
5 POWERING ON AND OFF
Press and release POWER/MENU to power the unit
on. Press and hold POWER/MENU until the unit
shuts down to power off. When Unit powers on, the
Start Up menu temporarily appears. From this menu,
select either Start-Up for 'on-the-water' use, or
Simulation for learning to use the system with
simulated sonar data. The Start-Up menu disappears
after several seconds and the
unit will start to function
normally.
6 ACCESSING MENU FEATURES
A simple menu system allows you to access the
unit's adjustable features. To activate this menu
system, press Function Keys to access the main
menus and press POWER/MENU to access SETUP
menus.
When a menu is on the display, use the right and left
arrow keys to adjust the menu and press POWER to
save this setting.
-1-
2 1
3
8
9
7
