dirna Bergstrom bycool green line Instructions De Montage page 20

EN
INTEGRAL POWER
Tighten the screws until the support pieces
13
come up against the hexagonal spacers.

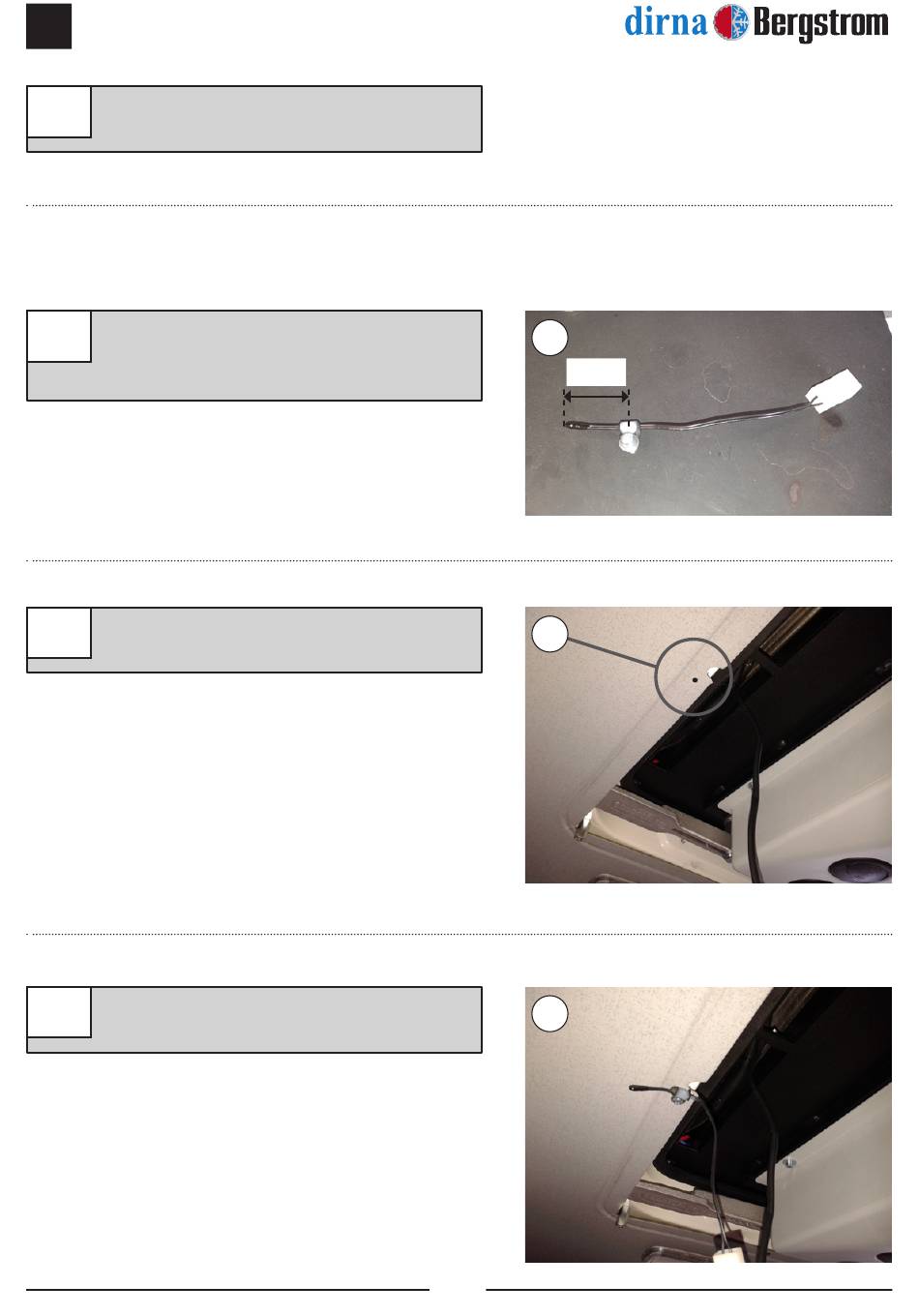

RETURN AIR SENSOR
Position the clamp in the recirculation
14
sensor with M4x15 screw at the indicated
measurement.
Bore Ø4.5 as indicated.
15
Mount the recirculation sensor with M4 nut
16
and washer.
14
30 mm
15
16
20
®
