High Flow Suction Filters
Hydrophilic:
Nipple
20 Pack 6730-0350-800
200 Pack 6730-0351-800

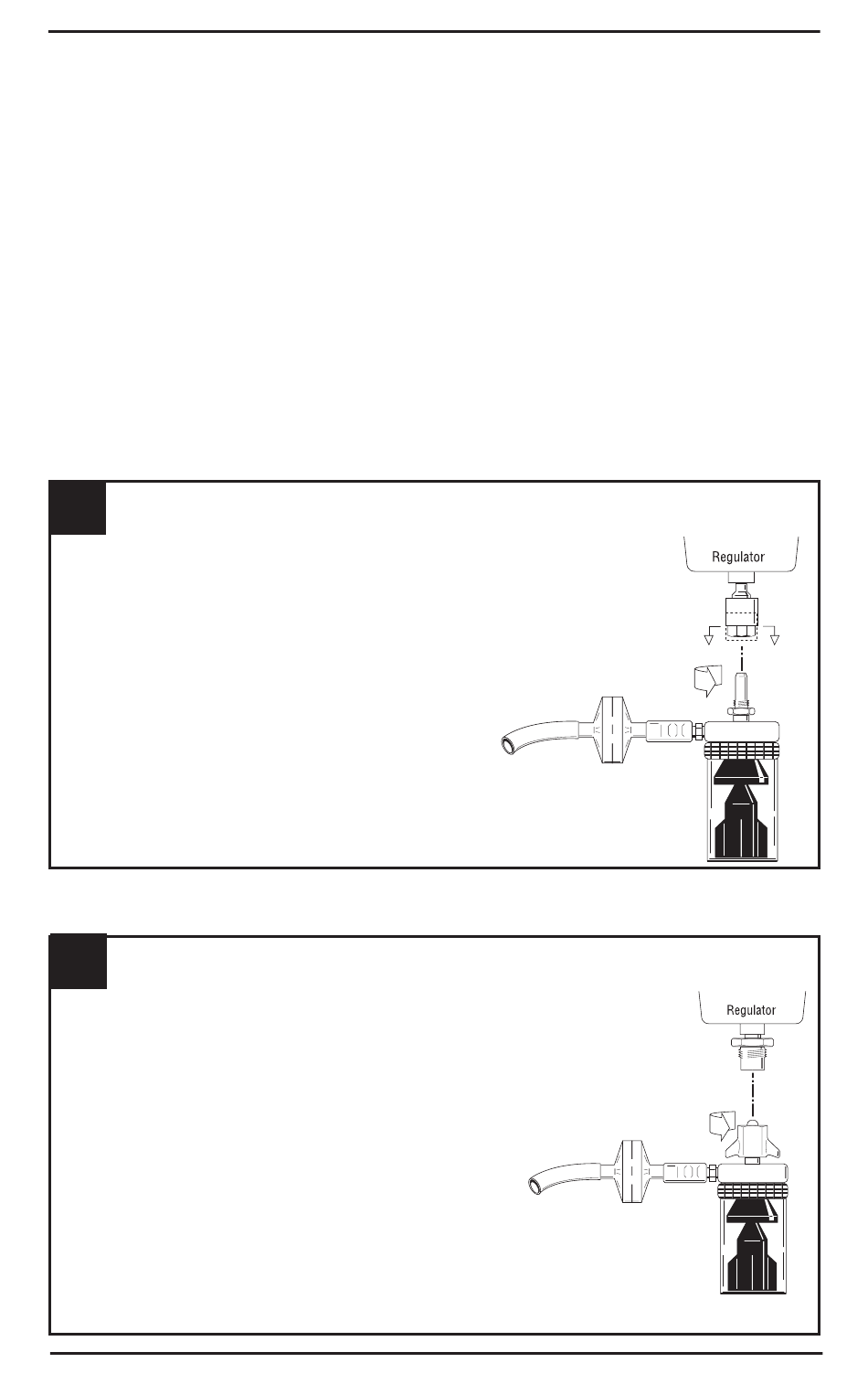

Attaching the Overflow Safety Trap (OST)
CAUTION ⚠ To help prevent aspirate from entering the regulator, wall outlet and
Trap fitting
2
Figure 2
1. Raise the sleeve and insert the trap into the regulator fitting.
2. Turn the trap clockwise about one and a half turns
to engage the threads. The trap does not need to
be screwed tight; an O-ring in the regulator fitting
provides a vacuum seal. The trap should rotate freely
to allow the desired tubing positioning.
3. Lower sleeve to lock trap in position.

Regulator

Sleeve
DISS fitting
3
Figure 3
1. Insert trap into the regulator fitting. Situate the tubing in the
desired position.
2. Turn the DISS wing nut clockwise to engage threads and tighten
(there is no O-ring, so the vacuum seal depends on a tight
connection).

Regulator

Wing nut
3 Pack
10 Pack
50 Pack
pipeline equipment, a safety trap should be attached prior to its
use. Aspirate in the regulator, wall outlet and pipeline equipment
may impair its operation. The use of the overflow safety trap and
suction filter will help prevent this and extend the life of suction
equipment.
5
Hydrophobic:
Nipple
6700-0570-800
6700-0571-800
6700-0572-800
6700-0359-000
Threaded
6700-0580-800
6700-0581-800
6700-0582-800


