Before you start

Assembly
Installing dusting device
Before you start

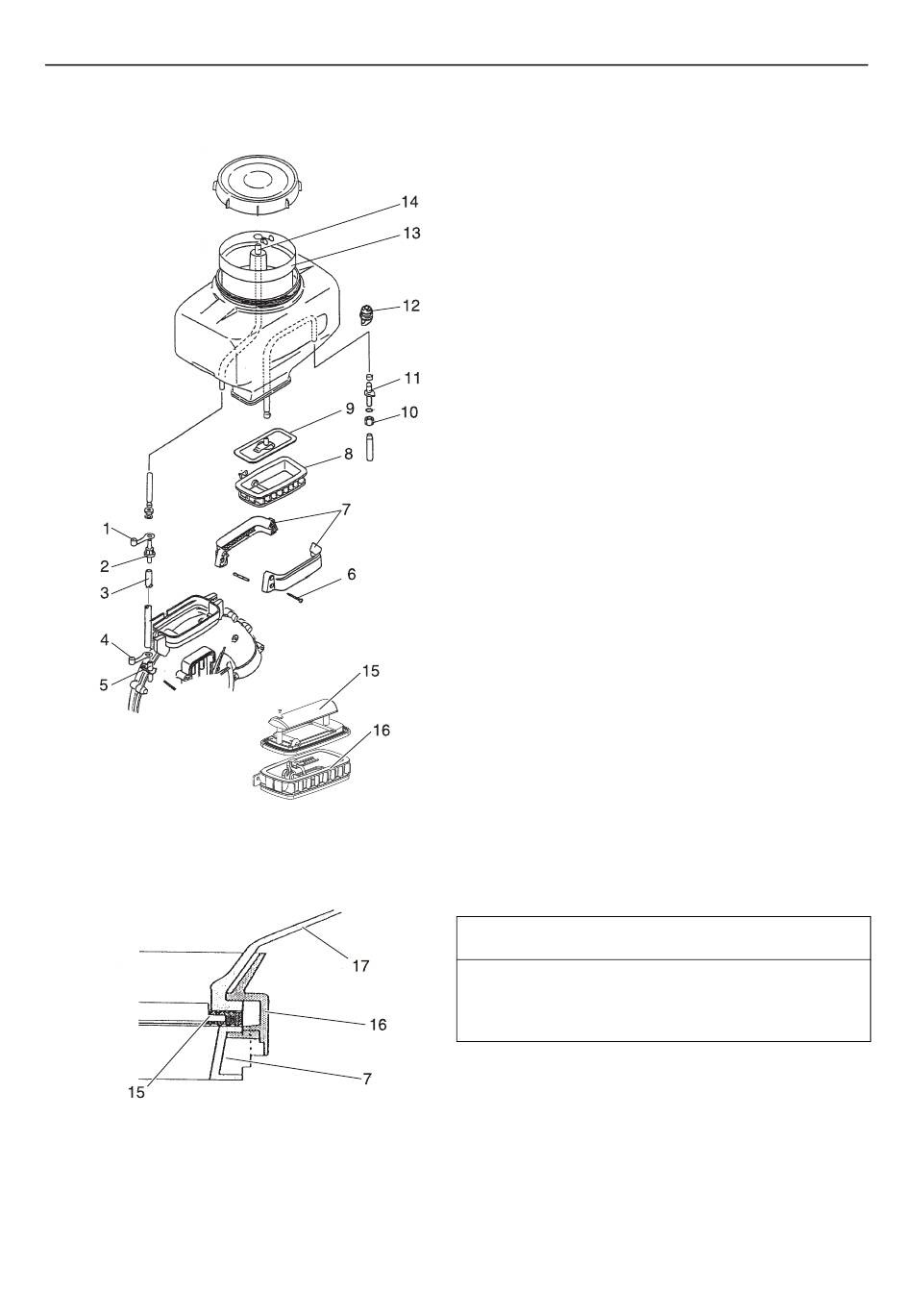

1. Remove pipe (3) from chemical tank and fan case. Plug two
pipe connectors (2, 5) with rubber plugs (1, 4).
2. Remove chemical tank assembly from the body.
3. Loosen four screws (6) and separate chemical tank holders
(7).
4. Loosen hollow nut (10) and remove outlet nipple (11) from
chemical tank. Plug the hole with rubber plug (12).
5. Remove the pipe (14) from chemical tank cap, and tank bot-
tom plate (9), pipes, filter (13) and related parts from the
chemical tank. Keep these parts for misting device.
6. Pile up chemical tank flange, shutter assembly(15) and low-
er tank assembly (16), then hold with chemical tank holders
(7) as shown and tighten four screws (6).
 For easier installation, set the chemical tank (17) upside
down then put the shutter assembly (15) and lower tank as-
sembly (16) on the chemical tank flange then assemble tank
holders.
