HOW TO PERFORM A CABLE TEST

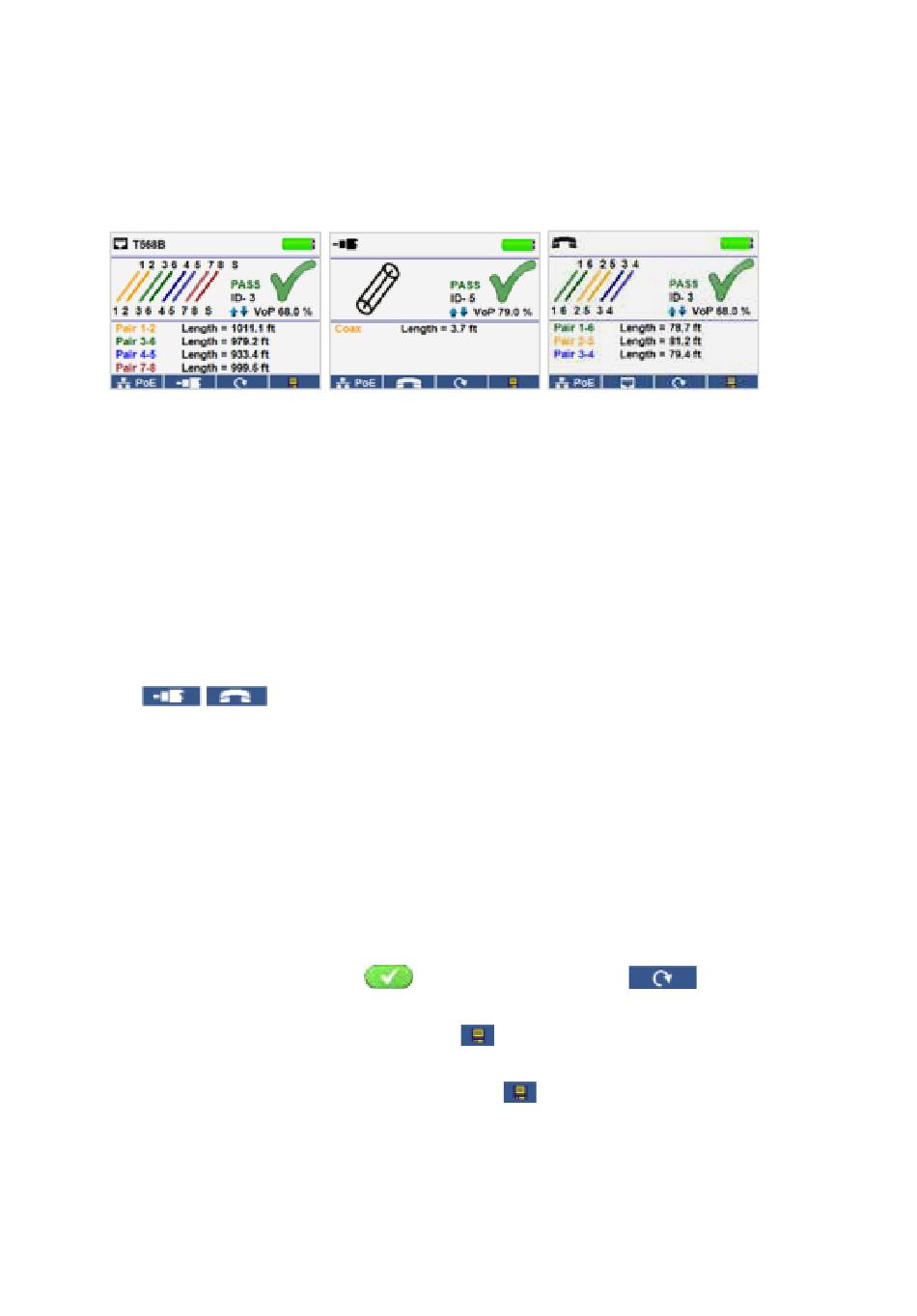

Network Cable Test
• Power on the CableMaster 600/650.
• Connect a network, coax, or telephone cable to the appropriate connector on the
top of the CableMaster 600/650.
(Warning! Do not plug an RJ11 cable directly into the CableMaster 600/650! A
standard RJ11 cable will damage the CableMaster 600/650's RJ45 jack. Use the
included RJ adapter patch cable (CA012) that is included with the CableMaster
600/650.)
• Press the enter button to display the cable test menu. The CableMaster 600/650
will automatically perform a test upon entering the cable test menu.
• To test coax or telephone cable, press the coax or telephone soft key.
• If a remote is NOT being used (one ended test), the CableMaster 600/650 will test
the length of each pair, opens, shorts, or split pairs. Performing a one ended test
will not verify connectivity on the opposite end of the cable.
• If a remote is being used, connect the remote to the opposite end of the cable.
• To calibrate the NVP, connect a known length of cable to the CableMaster 600/650
and press the up/down/left/right buttons to increase or decrease the NVP. Press
the left and right buttons to select and change the NVP one digit at a time.
• While adjusting the NVP, press the test button every so often until the length of the
cable is displayed.
• Press the green test button
additional tests.
• To save a cable test, press the save icon.
• Use the arrow buttons and the enter button to name the cable test file.
Press the save icon to save the cable test file.
Coax Cable Test
or the loop mode soft key
Telephone Cable Test
to perform
3
