Idegis Mod 7/PH Manuel D'installation page 9

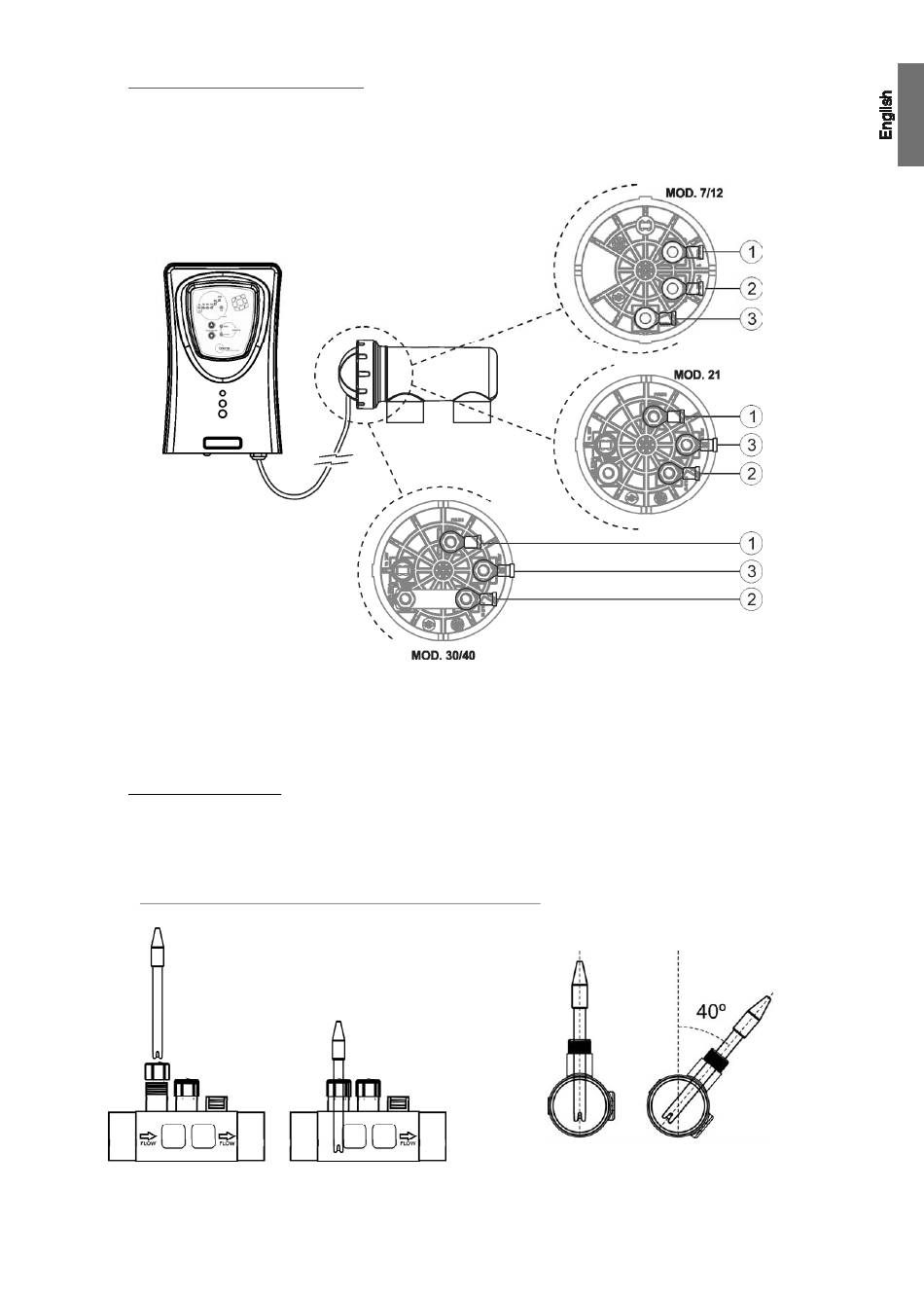

4.3. Electrical connections of the electrolysis cell
Make the interconnection between the electrolysis cell and the power supply according to the following scheme. Due to relatively high current
intensity circulating do not modify or cut either the length or section of the supplied cables without making a previous consultation to an
authorized distributor. The cable connecting the electrolysis cell and the power supply should never exceed the maximum length
recommended in this Manual: MOD.7 (3.5 A), 15 m.; MOD.12 (6 A), 8 m.; MOD.21 (3.5 A), 30 m.; MOD.30 (6 A), 20 m; MOD.40 (6 A), 20 m.
4.4. Installation of the pH sensor (only in MOD. XX-PH models)
1. Insert the pH sensor into their corresponding places of the holder (Fig. 12)
2. To that purpose, loosen the connection screws and insert the sensor into the holder.
3. The sensors must be installed in the holder so that it is guaranteed that the sensors located in their ends are always submerged in
the water circulating through the pipe.
4. Always install the pH sensor vertically or with a maximum inclination of 40
Fig. 12
1.- Electrode 1 (Red)
2.- Electrode 2 (Red)
3.- Flow detector (Yellow)
Fig.11
o
(Fig. 13).
7
Fig. 13
